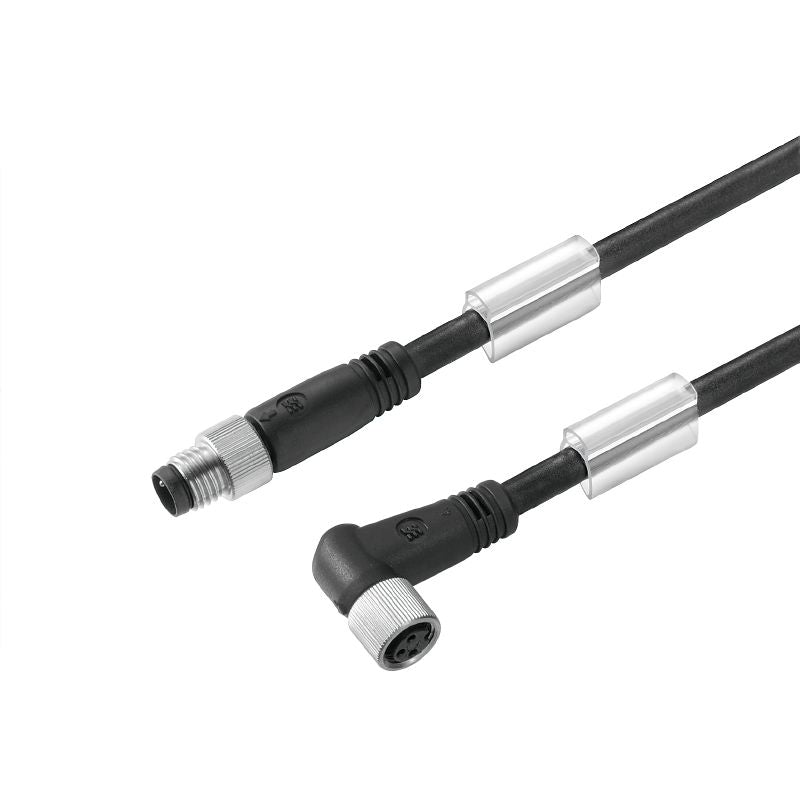

1927170150 - 1.5m PVC M8 Sensor/Actuator Connecting Line, 90° Socket

1927170150 - 1.5m PVC M8 Sensor/Actuator Connecting Line, 90° Socket

SKU: SKU: 1927170150   Download PDF

Select a Variant:
  • 1927170150 - 1.5m PVC M8 Sensor/Actuator Connecting Line, 90° Socket
Qty:
Regular price Now $10.83   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $10.83 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

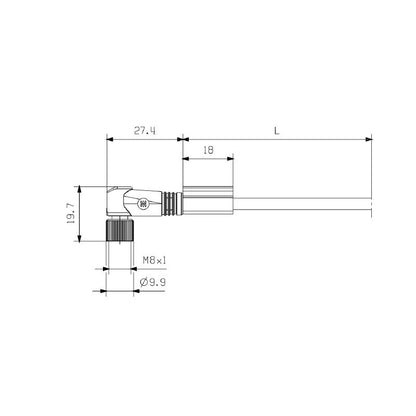

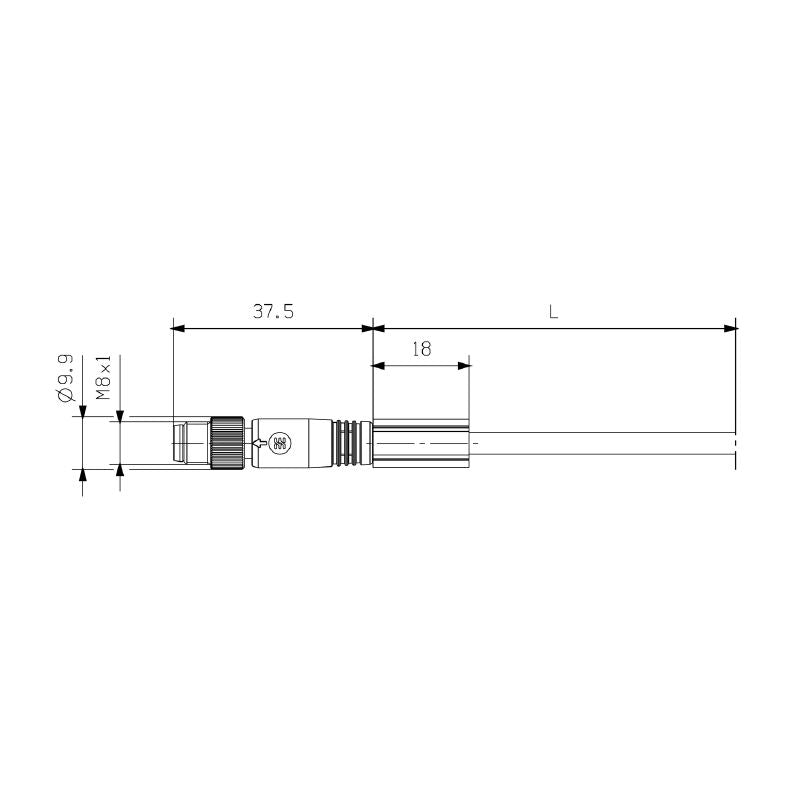

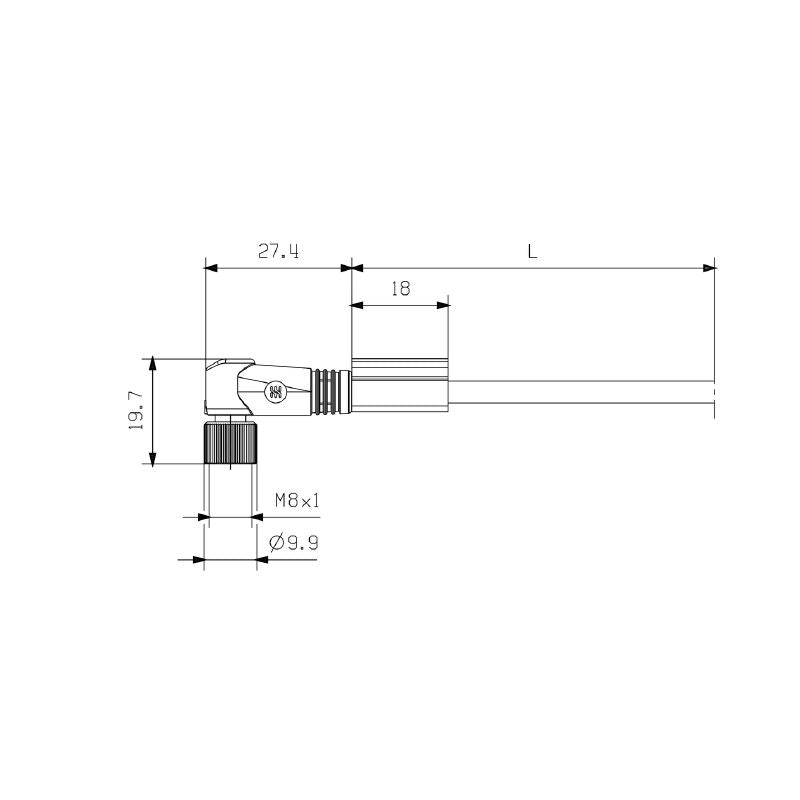

Introducing a premium sensor and actuator connection line tailored for M8 interfaces, measuring 15 meters in length It boasts a straight pin layout with a 90-degree angled socket for easy installation This line is crafted from durable PVC material, free from halogens, and adheres to environmental standards While it does not include shielding or LED indicators, its simple yet effective design makes it a reliable choice for your connection needs.

Features and Benefits:

    •Compliant with RoHS and REACH regulations.

    •Connector standard IEC 61076-2-104.

    •IP65 to IP69 protection degree.

    •Gold-plated contact surface.

    •Designed for a nominal current of 4A and voltage of 60V.

Specifications:

 Cable length 1.5 m

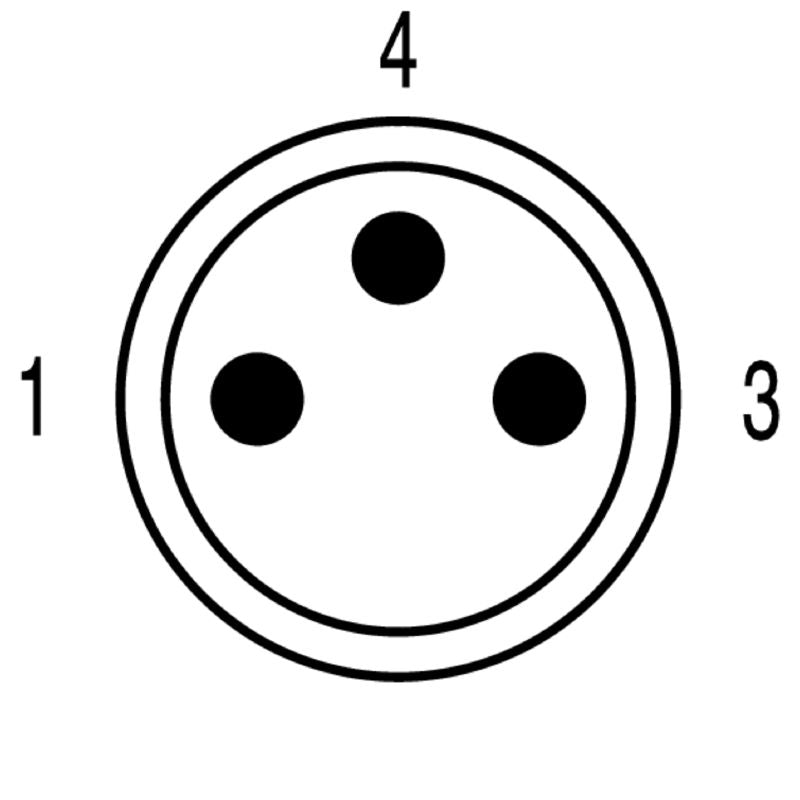

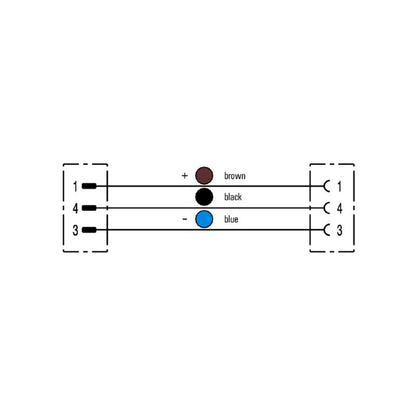

 Number of poles 3
 Core cross-section 0.25 mm²
 Outside diameter 4.5 mm ± 0.2 mm
 Temperature range, moving -5...80 °C
 Temperature range, stationary -30...80 °C
 Insulation resistance 10^8 Ω
 Plugging cycles ≥ 100
 Tightening torque M8: 0.5 - 0.6 Nm
 Housing main material PUR
 Sheath material PVC
 Protection degree IP65, IP66, IP67, IP68, IP69
 Threaded ring material Brass, nickel-plated
