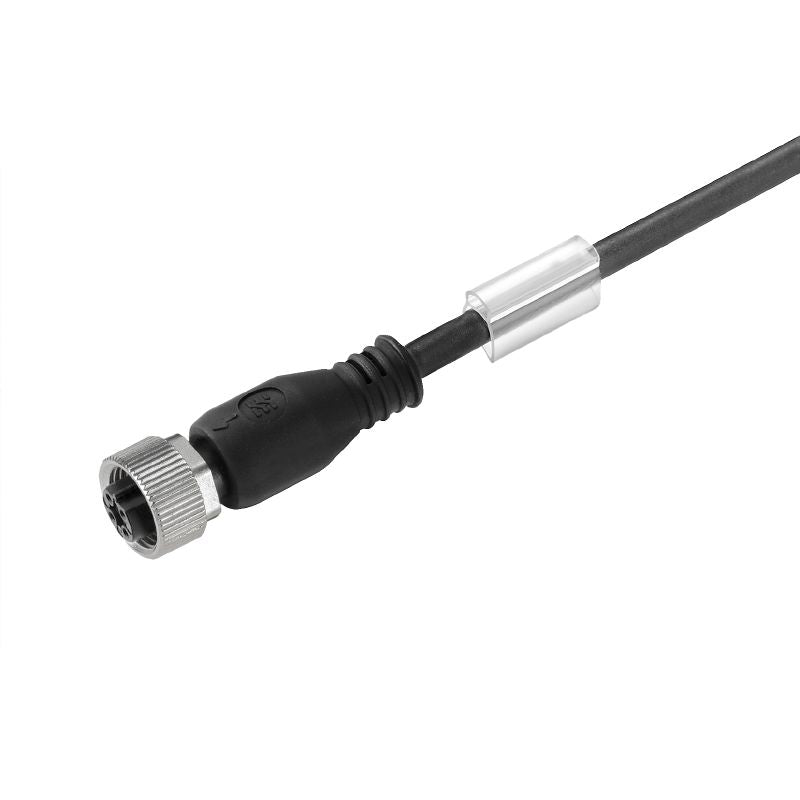

1925580200 - 2m Shielded M12 Sensor/Actuator Line, PVC Halogen-Free

1925580200 - 2m Shielded M12 Sensor/Actuator Line, PVC Halogen-Free

SKU: SKU: 1925580200

Select a Variant:
  • 1925580200 - 2m Shielded M12 Sensor/Actuator Line, PVC Halogen-Free
Qty:
Regular price Now $7.55   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $7.55 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a reliable sensor/actuator line featuring a straight female socket design This robust unit is fully shielded and does not include an LED indicator Crafted from halogen-free PVC, it guarantees safety and compliance with RoHS standards The product is identified by order number 1925580200 and holds a cULus certification, with the certificate number E307231 Perfect for various applications, this component combines efficiency and environmental friendliness.

Features and Benefits:

    •Compliant with RoHS with exemption.

    •General standards conform to IEC 61076-2-101.

    •Plug features an A-coded M12 configuration.

    •Gold-plated contact surfaces.

    •Housing made of PUR material.

    •Temperature range for stationary use is -30 to 80 °C.

Specifications:

 Cable length 2 m
 Core cross-section 0.34 mm²
 Number of poles 4
 Outer cladding UL AWM style 2464 (80 °C / 300 V)
 Outside diameter 5.3 mm ± 0.2 mm
 Protection degree IP67, IP68 when screwed in
 Nominal current 4 A
 Nominal voltage 250 V
 Insulation resistance 10^8 Ω
 Tightening torque M12: 0.8 - 1.2 Nm
