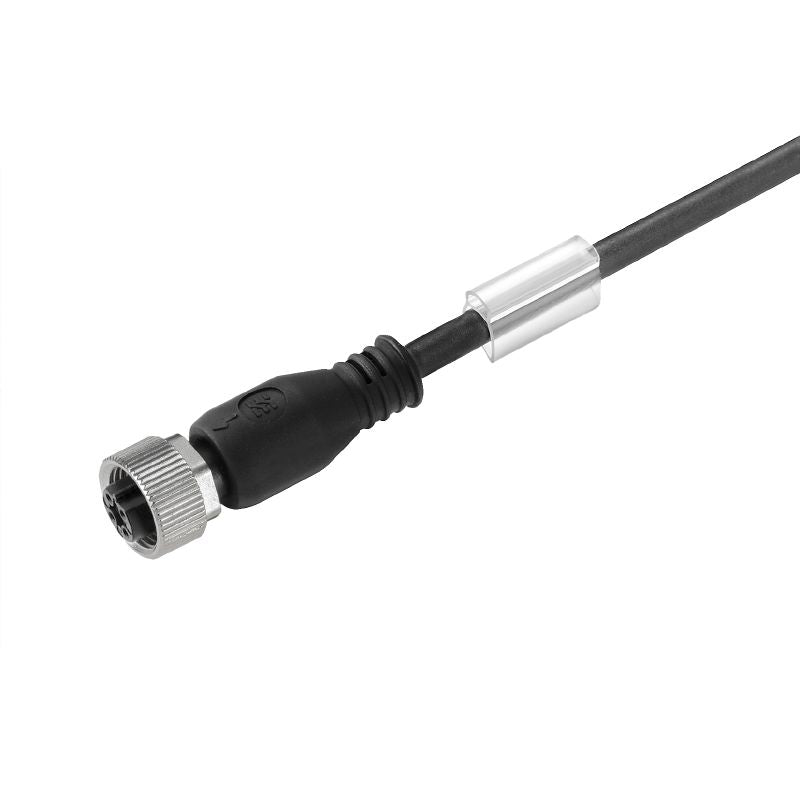

1925570200 - 2m M12 Sensor/Actuator Line, 3 Poles, PVC Sheath

1925570200 - 2m M12 Sensor/Actuator Line, 3 Poles, PVC Sheath

SKU: SKU: 1925570200

Select a Variant:
  • 1925570200 - 2m M12 Sensor/Actuator Line, 3 Poles, PVC Sheath
Qty:
Regular price Now $6.69   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $6.69 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover an effective connection solution with the Sensor/Actuator line This model features a 2-meter length, offering versatility in various applications It includes an M12 design with three poles but comes without a connector at one end The straight female socket is unshielded, and the protective sheath is crafted from halogen-free PVC Additionally, this product meets environmental regulations such as RoHS and REACH, underscoring its commitment to sustainability.

Features and Benefits:

    •Straight female socket without connector.

    •PVC sheath material.

    •Halogen-free construction.

    •Gold-plated contact surface.

    •IP67 rated for protection against dust and water.

    •Suitable for temperatures ranging from -30 to 80 °C.

Specifications:

 Cable length 2 m
 Core cross-section 0.34 mm²
 Outer diameter 4.9 mm ± 0.2 mm
 Number of poles 3
 Nominal current 4 A
 Nominal voltage 250 V
 Tightening torque M12: 0.8 - 1.2 Nm
 Insulation resistance 10^8 Ω
 Protection degree IP67, IP68 when screwed in
 Material of threaded ring Diecast zinc
 Temperature range of housing -25…+85 °C
 Connector standard IEC 61076-2-101
 Plug left M12, A-coded, IP69, female contact, straight, Plastic, unshielded
 Plug right free conductor end
