1925390500 - 5m M12 4-Pin PVC Connection Cable

1925390500 - 5m M12 4-Pin PVC Connection Cable

SKU: SKU: 1925390500   Download PDF

Select a Variant:
  • 1925390500 - 5m M12 4-Pin PVC Connection Cable
Qty:
Regular price Now $16.02   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $16.02 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

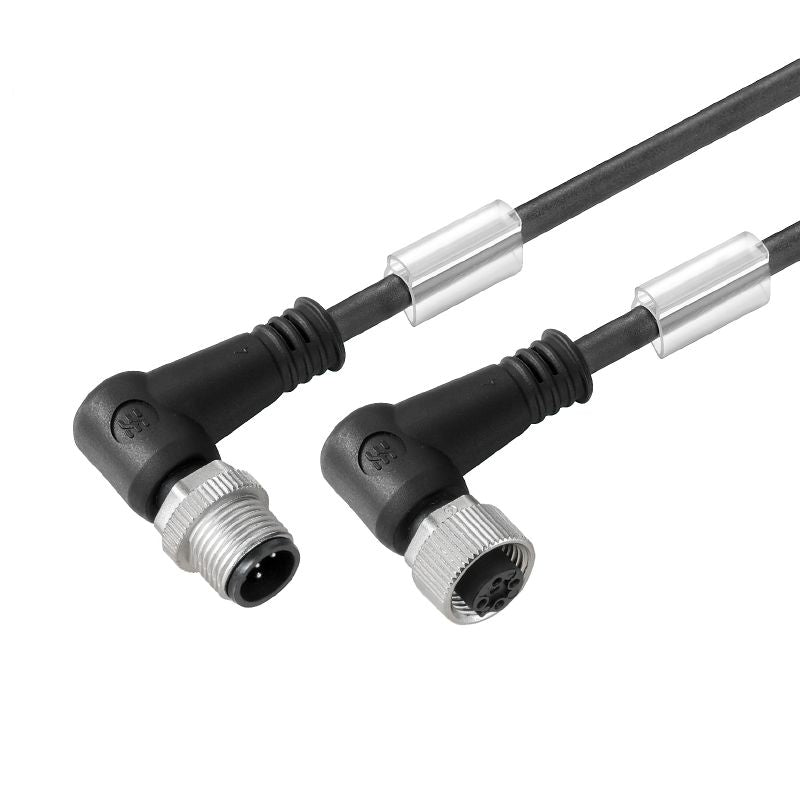

Discover the versatility of this M12 to M12 sensor/actuator connection cable, featuring four pins and a generous length of 5 meters Its unshielded design is crafted from PVC material, ensuring durability and compliance with ROHS regulations, with noted exceptions The cable is color-coded with brown, white, blue, and black wires for easy identification With a core cross-section of 034 mm² and an outer diameter measuring 5.

3 mm ± 02 mm, this cable is built to perform reliably It operates effectively in temperatures ranging from -30 to +80 °C for fixed installations, and from -5 to +80 °C for flexible applications.

Features and Benefits:

    •4-pole connection.

    •Non-shielded construction.

    •PVC sheath material.

    •Compliant with RoHS exemption.

    •Gold-plated contact surface.

    •IP67 rating for protection.

Specifications:

 Cable length 5 m
 Number of poles 4
 Core cross-section 0.34 mm²
 Outer diameter 5.3 mm ± 0.2 mm
 Temperature range (moving) -5 to 80 °C
 Temperature range (stationary) -30 to 80 °C
 Nominal current 4 A
 Nominal voltage 250 V
 Insulation resistance 10^8 Ω
 Plugging cycles ≥ 100
 Protection degree IP67
 Sheath material PVC
 Color coding brown, white, blue, black
 Electrical properties A-coded connection thread, unshielded design
