1925361000 - 10m M12 Connecting Line, 5 Poles, 90° Angle, PVC

1925361000 - 10m M12 Connecting Line, 5 Poles, 90° Angle, PVC

SKU: SKU: 1925361000   Download PDF

Select a Variant:
  • 1925361000 - 10m M12 Connecting Line, 5 Poles, 90° Angle, PVC
Qty:
Regular price Now $23.86   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $23.86 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

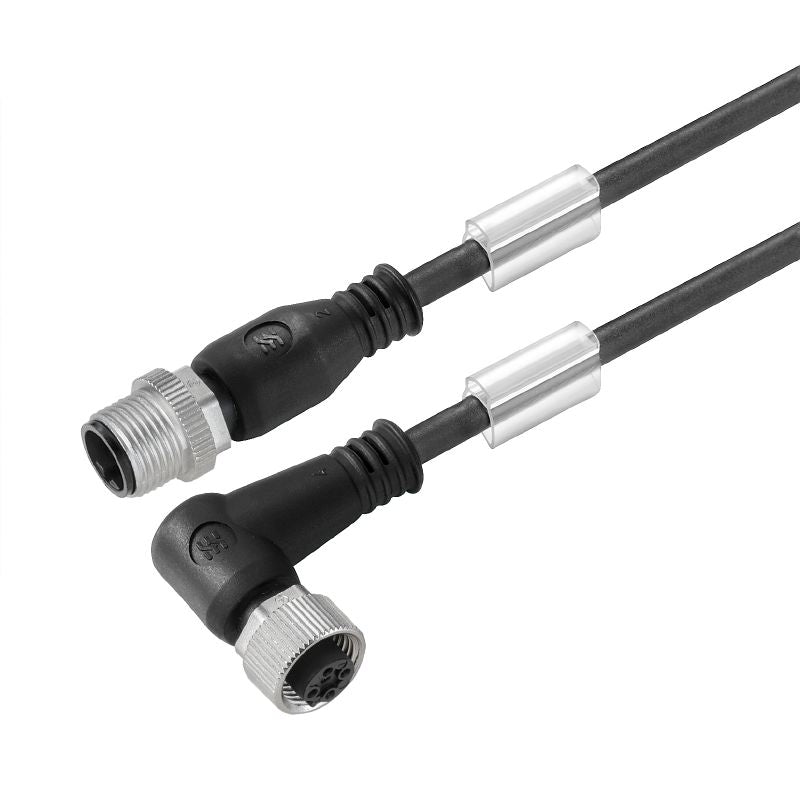

Elevate your connectivity solutions with this specially crafted cable designed for sensor and actuator uses It features robust M12 connectors, with 5 poles, extending 10 meters in length The cable includes a straight socket connection and a 90° angled connection for versatile installation Made from halogen-free PVC material, this unshielded line is built to offer reliable performance while ensuring safety and compliance.

Features and Benefits:

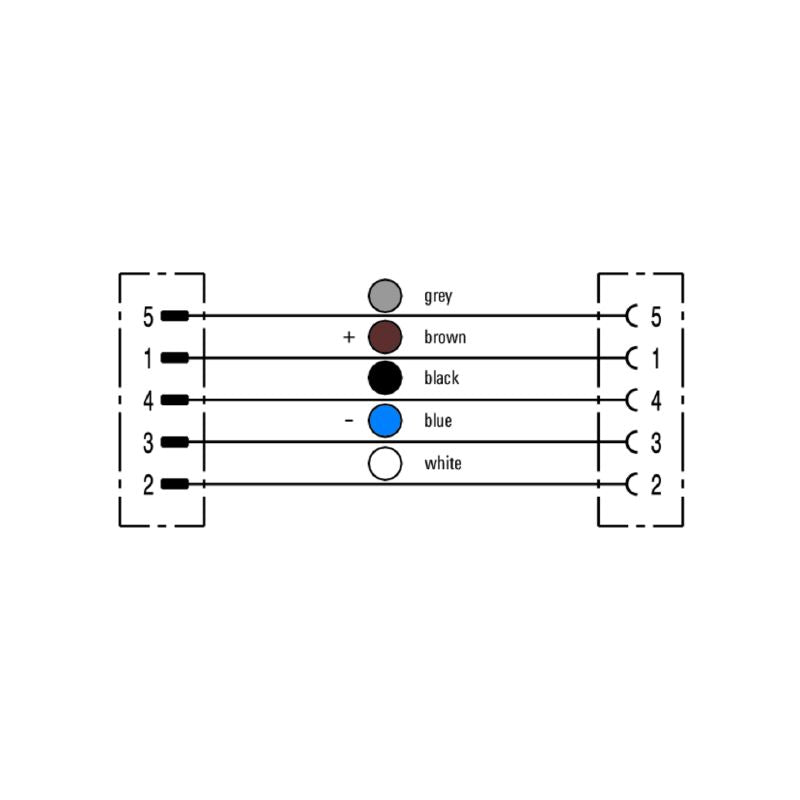

    •Color-coded wires: brown, white, blue, black, grey.

    •Configurable cable length.

    •Gold-plated contact surface.

    •IP65/IP66/IP67/IP68 protection degree.

    •Shock and vibration proof according to Section B.

Specifications:

 Cable length 10 m
 Core cross-section 0.34 mm²
 Number of poles 5
 Outside diameter 5.7 mm ± 0.1 mm
 Nominal current 4 A
 Nominal voltage 60 V
 Temperature range, moving -5...80 °C
 Temperature range, stationary -30...80 °C
 Insulation resistance 10^8 Ω
 Plug left connector, M12, A-coded, Number of poles: 5, male contact, straight, unshielded
 Plug right connector, M12, A-coded, Number of poles: 5, female contact, angled 0°, unshielded
