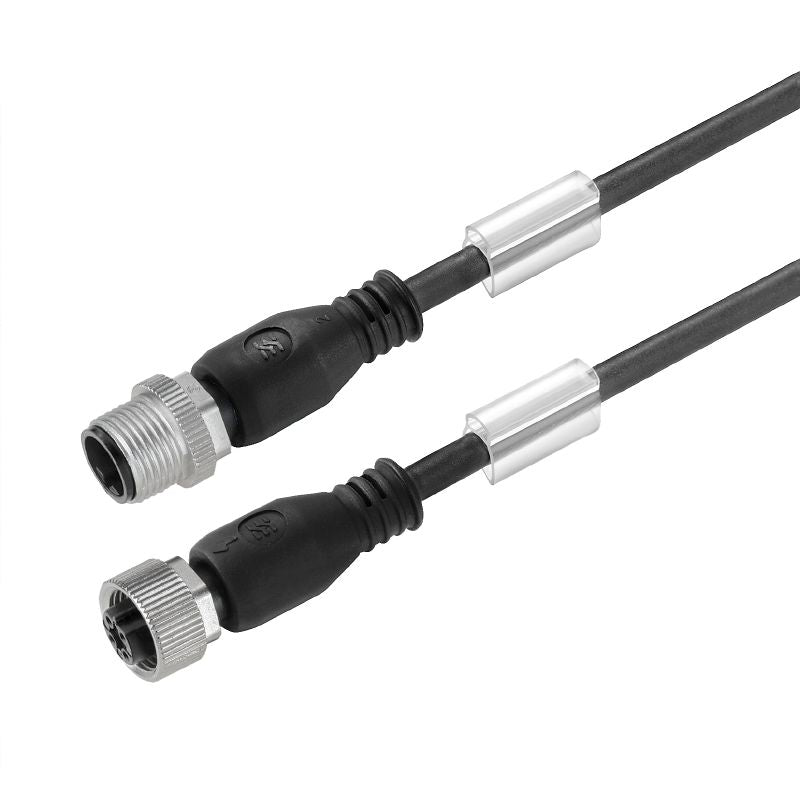

1925310020 - 0.2m M12 Connector for Sensors and Actuators

1925310020 - 0.2m M12 Connector for Sensors and Actuators

SKU: SKU: 1925310020   Download PDF

Select a Variant:
  • 1925310020 - 0.2m M12 Connector for Sensors and Actuators
Qty:
Regular price Now $11.57   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $11.57 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

This connecting line is specifically engineered for sensor and actuator applications, featuring robust M12 connectors with 4 poles Measuring 02 meters in length, the connector includes a straight socket design and comes without shielding Crafted with a halogen-free PVC sheath, this cable complies with essential environmental standards, making it versatile for various installations It also meets RoHS requirements and boasts notable certifications like cULus, ensuring reliability across moving and stationary setups while operating within an excellent temperature range.

Features and Benefits:

    •Gold-plated contact surface for reliable connections.

    •Rated for a nominal current of 4A and nominal voltage of 250V.

    •Includes a threading with a range of tightening torque from 0.8 to 1.2 Nm.

    •Compliant with IEC 61076-2-101 connector standards.

    •IP67, IP68, IP65, and IP66 protection degrees for versatile applications.

    •Sensor and actuator connectivity in industrial applications.

Specifications:

 Cable length 0.2 m
 Number of poles 4
 Outer cladding standard UL AWM style 2464
 Outside diameter 5.3 mm ± 0.2 mm
 Temperature range (moving) -5...80 °C
 Temperature range (stationary) -30...80 °C
 Insulation resistance 10^8 Ω
 Plug type M12, A-coded, IP69, male contact, straight
 Sheath material PVC
