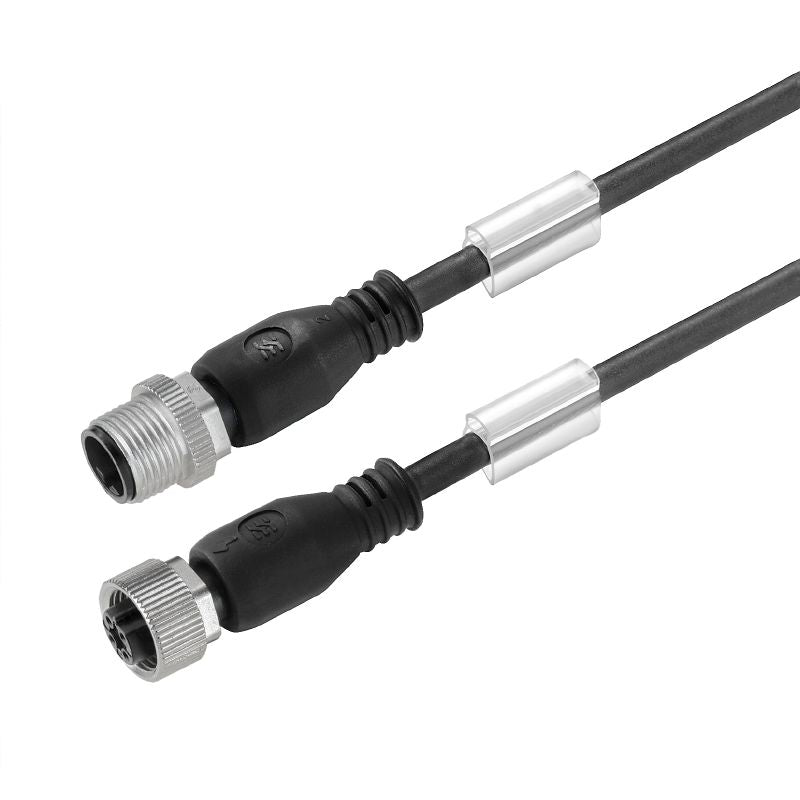

1925300300 - 3m M12 Connecting Line for Sensors and Actuators

1925300300 - 3m M12 Connecting Line for Sensors and Actuators

SKU: SKU: 1925300300   Download PDF

Select a Variant:
  • 1925300300 - 3m M12 Connecting Line for Sensors and Actuators
Qty:
Regular price Now $12.65   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $12.65 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a versatile 3-meter connecting line ideal for sensor and actuator setups, featuring M12 connectors on either end This cable is configured with a straight socket design and is crafted from unshielded PVC, which contains halogen The gold-plated contacts of the connectors ensure reliable performance, and the product meets UL standards under certification E307231, guaranteeing quality and safety for your applications.

Features and Benefits:

    •Cable length of 3 meters.

    •Halogen present in the sheath material.

    •Gold-plated contact surface.

    •IP67 protection degree.

    •Nominal current of 4A.

    •Suitable for various applications requiring M12 connectors.

    •Weight of 126g.

Specifications:

 Cable length 3 m

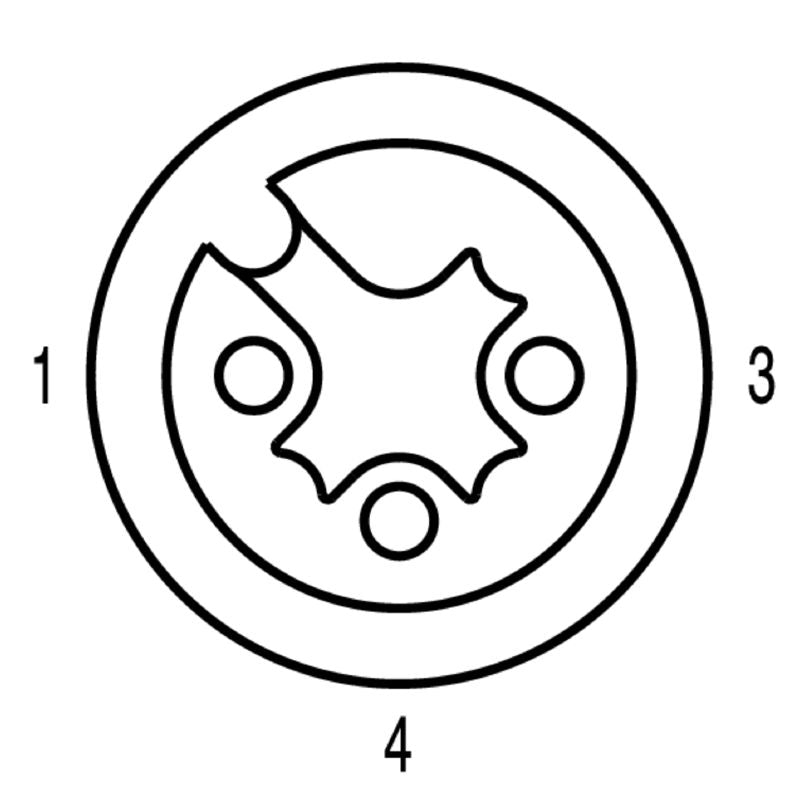

 Number of poles 3
 Outer diameter 4.9 mm ± 0.2 mm
 Core cross-section 0.34 mm²
 Temperature range, moving -5...80 °C
 Temperature range, stationary -30...80 °C
 Insulation resistance 10^8 Ω
 Nominal voltage 250 V
 Protection degree IP67, IP68, IP65, IP66
 Plugging cycles ≥ 100
 Coding A-coded
 Connection thread M12 / M12
 Housing main material PUR
 Threaded ring material Diecast zinc
 Tightening torque M12: 0.8 - 1.2 Nm
