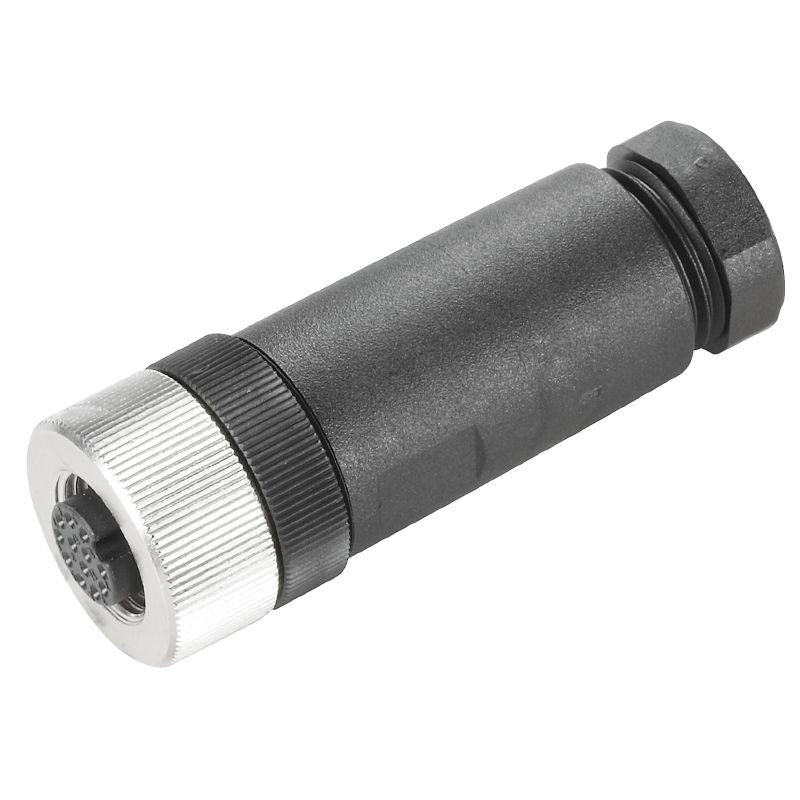

1924960000 - IP67 M12 Connector, 6-8mm Cable, PA Housing, Gold Contacts

1924960000 - IP67 M12 Connector, 6-8mm Cable, PA Housing, Gold Contacts

SKU: SKU: 1924960000   Download PDF

Select a Variant:
  • 1924960000 - IP67 M12 Connector, 6-8mm Cable, PA Housing, Gold Contacts
Qty:
Regular price Now $17.93   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $17.93 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the SAIBGT-P-12A-6/8-M12, a versatile field-attachable M12 connector tailored for diverse applications This product meets RoHS standards and has received cURus certification (certificate number E307231) Constructed with robust PA housing and a diecast zinc threaded ring, it comfortably accommodates cable diameters ranging from 6 mm to 8 mm It is compatible with conductor cross-sections between 0.

14 mm² and 025 mm², and features gold-plated female contacts for reliable connectivity Designed to withstand up to 100 plug cycles, this connector also boasts an IP67 protection rating, offering excellent resistance against dust and moisture Its operational temperature range spans from -40°C to +85°C, ensuring dependable performance in various environments.

Features and Benefits:

    •Compliance with RoHS and REACH regulations.

    •Gold-plated contacts for improved connectivity.

    •Durable construction using PA housing.

    •IP67 rated for water and dust resistance.

    •Suitable for a diverse range of applications.

    •Maximum conductor cross-section of 0.25 mm².

Specifications:

 Cable diameter, max. 8 mm
 Cable diameter, min. 6 mm
 Coding A-coded
 Conductor cross-section, max. 0.25 mm²
 Conductor cross-section, min. 0.14 mm²
 Contact surface Gold-plated
 Gender of contact Female
 Housing main material PA
 Insulation resistance 10^8 Ω
 Nominal current 1.5 A
 Nominal voltage 30 V

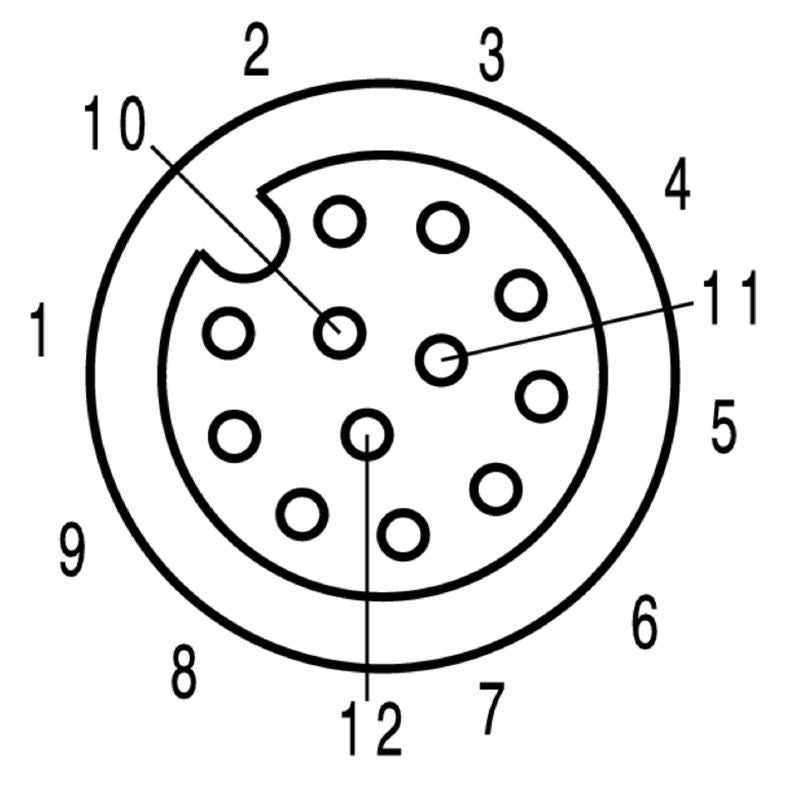

 Number of poles 12
 Plugging cycles ≥ 100
 Pollution severity 3
 Protection degree IP67
 Temperature range of housing -40 … +85 ° C
 Threaded ring material Diecast zinc
 Type of connection Solder connection
 Connector standard IEC 61076-2-101
