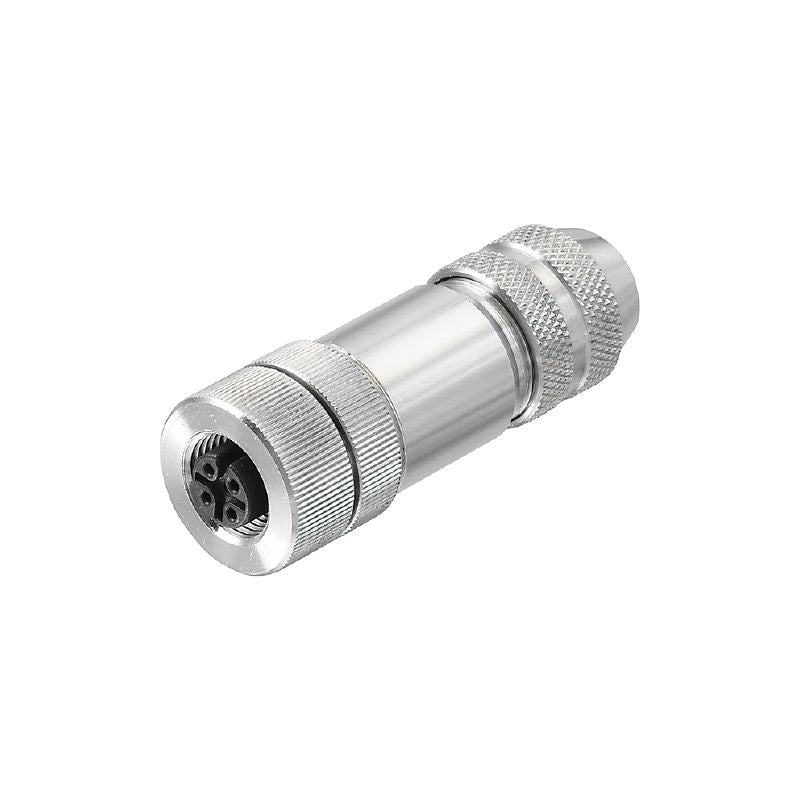

1920730000 - ROHS Compliant M12 Field Attachable Connector, 6-8mm Diameter

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAIBGZ-V-5B-6/8-M12, a reliable field-attachable connector compliant with ROHS standards It accommodates cable diameters ranging from 6 mm to 8 mm and features a user-friendly B-code for simple identification This connector is equipped with a gold-plated female contact surface and boasts a current capacity of 4 A along with a maximum voltage of 60 V Built to withstand harsh conditions, it meets pollution severity level 3 and has an impressive protection rating of IP69K.

Designed for longevity, you can expect a minimum of 100 plugging cycles, and it has an insulation resistance rating of 10^8 Ω, ensuring excellent performance in various applications.

Features and Benefits:

•Gold-plated contact surface.

•Tension-clamp connection type.

•Housing made from stainless steel, rust-proof.

•Temperature range of housing from -40 to +85 °C.

•IP69K rated protection degree.

•Compatible with cable diameters ranging from 6 mm to 8 mm.

Specifications:
