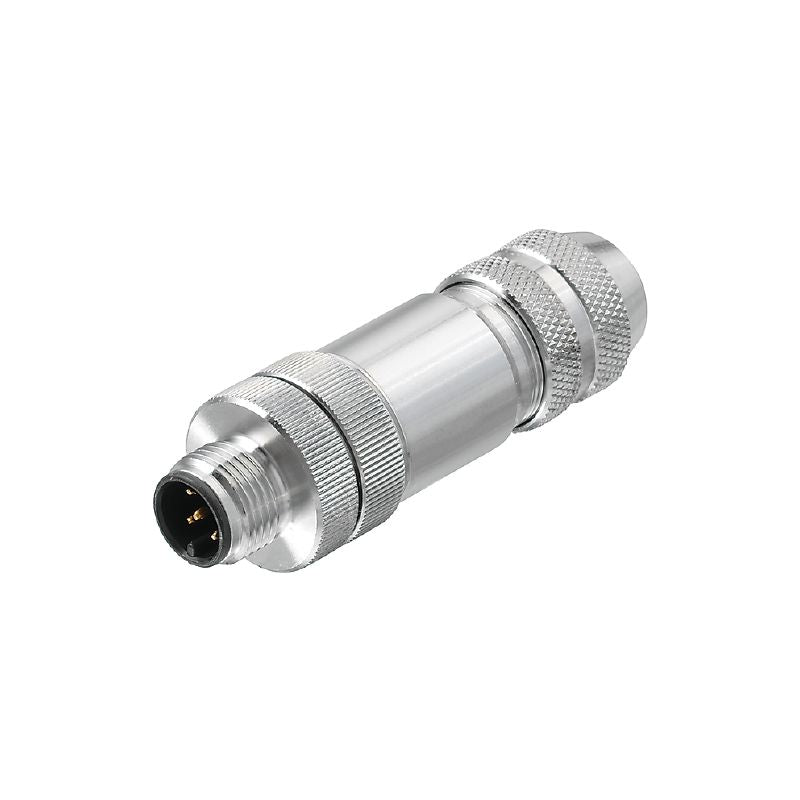

1920720000 - Stainless Steel Field Attachable Connector for 6-8 mm Cables

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAISGZ-V-5B-6/8-M12 field attachable connector, a versatile solution crafted for a variety of applications This connector is engineered to handle cable diameters ranging from 6 mm to 8 mm and features B-coding for secure, reliable connections It accommodates conductor cross-sections between 014 mm² and 05 mm², ensuring compatibility across multiple conductor types Equipped with gold-plated male contacts, it enhances both conductivity and reliability, supporting a nominal current of 4 A and a nominal voltage of 60 V.

Built to last, this connector withstands up to 100 plugging cycles and boasts an insulation resistance of 10⁸ Ω, providing assurance in high-demand environments Rated IP69K, it offers exceptional protection against harsh conditions Constructed from stainless steel (14404/316L) that resists rust, this connector is ideal for a range of industrial applications.

Features and Benefits:

•Gold-plated contact surface for enhanced conductivity.

•Rust-proof stainless steel housing for durability.

•IP69K protection degree for high resistance to dust and water.

•Accommodates a wide range of cable diameters.

•Supports temporary connections with tension-clamp type.

Specifications:
