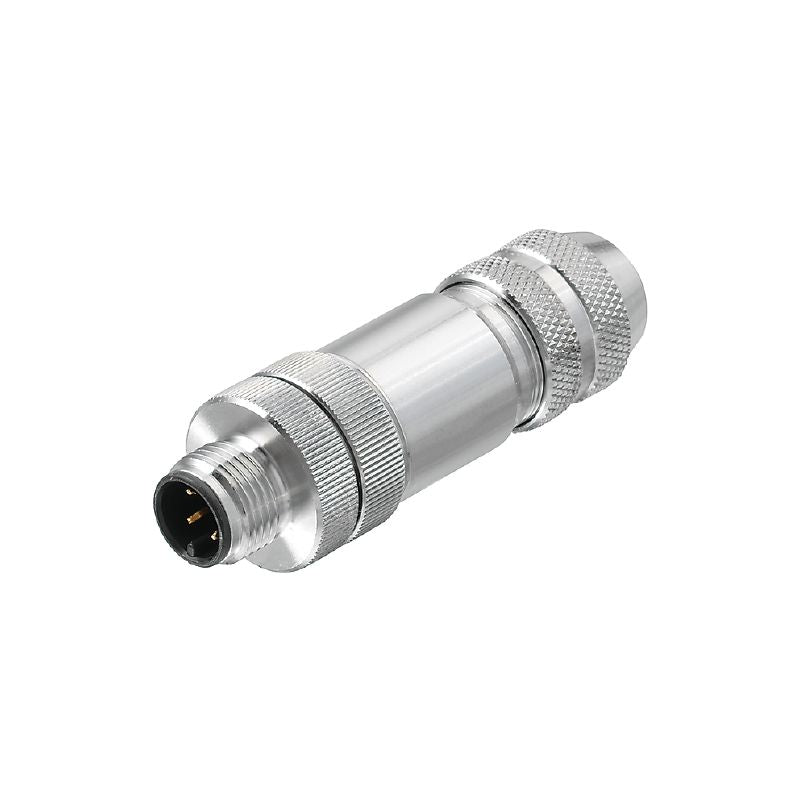

1920700001 - Durable M12 Field Attachable Connector with Gold-Plated Contacts

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a robust field attachable connector tailored specifically for M12 applications This connector boasts a sturdy construction and features gold-plated contacts, ensuring a dependable connection every time It employs a reliable tension-clamp mechanism that guarantees a secure fit Compliant with ROHS regulations, this product also adheres to REACH standards, highlighting its commitment to environmental sustainability.

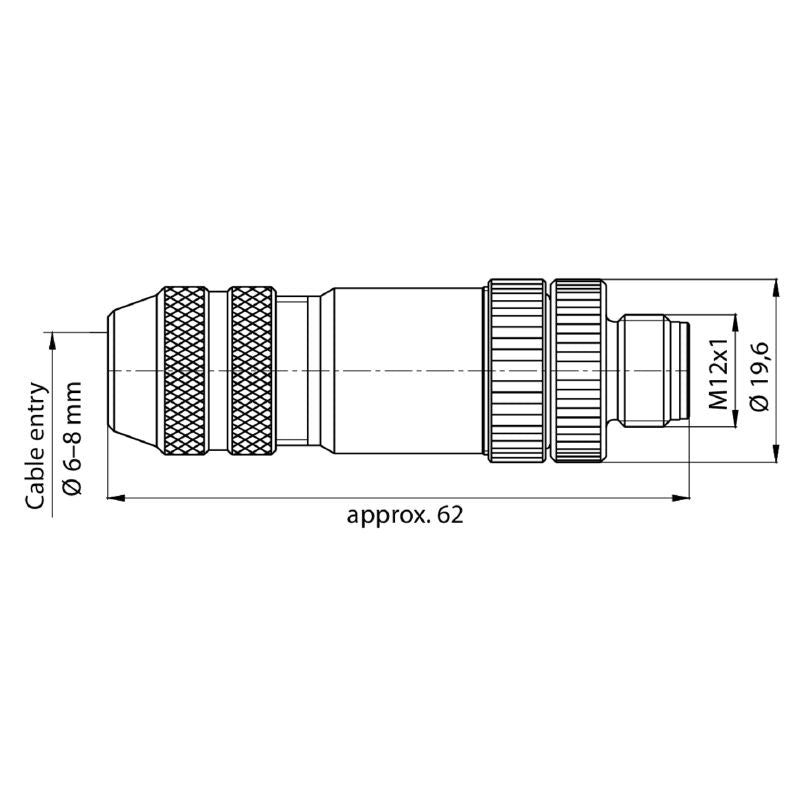

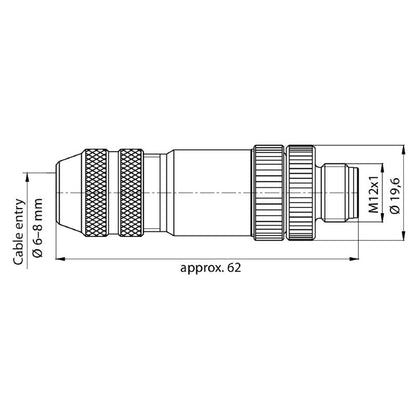

It is designed to work efficiently with a maximum voltage of 250 V and can accommodate a nominal current of 4 A Additionally, the connector is versatile, compatible with cable diameters from 6 mm to 8 mm, making it suitable for a range of installation scenarios.

Features and Benefits:

•Gold-plated contact surface.

•IP69K protection degree.

•Threaded ring material is stainless steel and rust-proof.

•Robust housing material made of 1.4404/316L.

•Handles a temperature range from -40 to +85 °C.

•Allows for >100 plugging cycles.

•Includes shield connection.

Specifications:
