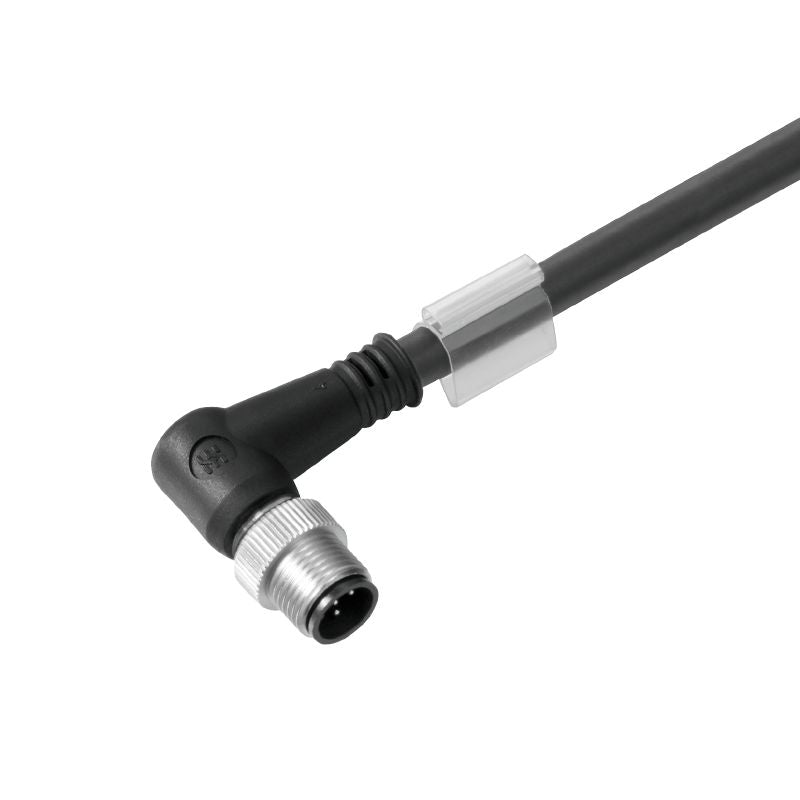

1906520500 - 5m Shielded PUR Sensor/Actuator Line with 5 Pins

1906520500 - 5m Shielded PUR Sensor/Actuator Line with 5 Pins

SKU: SKU: 1906520500

Variant:
  • 1906520500 - 5m Shielded PUR Sensor/Actuator Line with 5 Pins
Regular price Now $31.95
Regular price BEFORE   $0.00 Sale price Now $31.95
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience versatility with our 5-meter sensor/actuator line designed without a connector at one end Featuring a 5-pin configuration, this shielded line is crafted from PUR sheath material and is halogen-free, aligning with ROHS compliance It's an excellent choice for a broad range of applications, providing reliability and quality you can trust.

Features and Benefits:

    •Provides excellent resistance to oils and hydrolysis.

    •Suitable for cable carriers.

    •Has a bending radius minimum for stationary and moving applications.

    •Gold-plated contact surface.

    •IP65 to IP68 protection degrees depending on installation.

Specifications:

 Number of poles 5
 Cable length 5 m
 Sheath material PUR
 Outside diameter 5.7 mm ± 0.2 mm
 Nominal current 4 A
 Nominal voltage 60 V
 Insulation resistance 10^8 Ω
 Protection degree IP65, IP66, IP67, IP68
 Temperature range, moving -25...80 °C
 Temperature range, stationary -40...80 °C
 Approvals cULus E307231
 Bending cycles 2 Mio
 Speed 200 m/s
