1906411500 - 15m M12 Shielded Sensor Line with 4 Poles and LED

1906411500 - 15m M12 Shielded Sensor Line with 4 Poles and LED

SKU: SKU: 1906411500   Download PDF

Select a Variant:
  • 1906411500 - 15m M12 Shielded Sensor Line with 4 Poles and LED
Qty:
Regular price Now $31.17   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $31.17 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

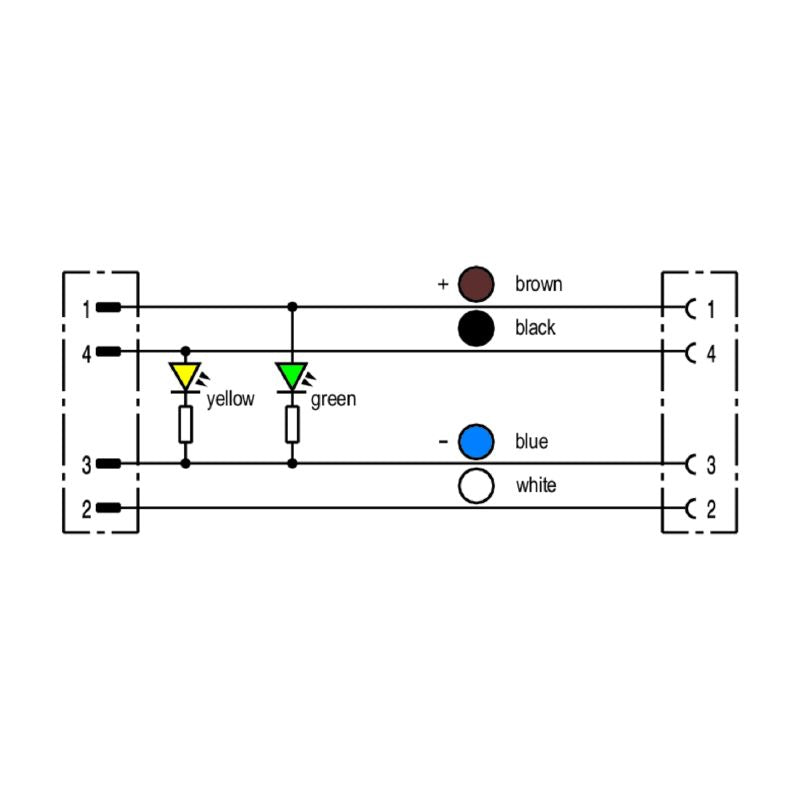

This sensor/actuator line is equipped with M12 to M12 cables featuring four poles The cable has a generous length of 15 meters and incorporates a combination of straight socket and 90° angle designs Shielded for protection, it also includes an integrated LED indicator Constructed with high-quality PUR material, this product is completely halogen-free.

Features and Benefits:

    •Designed for sensor and actuator applications.

    •No halogen materials used.

    •LED integrated for enhanced visibility.

    •Flexible and resistant to hydrolysis and microbes.

    •Ensures high performance with gold-plated contacts.

    •Can be utilized in automation technology and installation applications.

Specifications:

 Cable Length 15 m
 Number of Wires 4
 Core Cross-section 0.34 mm²
 Outside Diameter 4.1 mm + 0.15 mm
 Insulation Resistance 10^8 Ω
 Nominal Current 4 A
 Nominal Voltage 24 V
 Protection Degree IP67, IP68 when screwed in, IP65, IP66
 Temperature Range (Moving) -25...60 °C
 Temperature Range (Stationary) -50...80 °C
 Bending Radius (Min, Moving) 10 x cable diameter
 Bending Radius (Min, Stationary) 5 x cable diameter
