1906340500 - 5m M12/M8 Connecting Line, 4 Poles, 90° Angle

1906340500 - 5m M12/M8 Connecting Line, 4 Poles, 90° Angle

SKU: SKU: 1906340500   Download PDF

Select a Variant:
  • 1906340500 - 5m M12/M8 Connecting Line, 4 Poles, 90° Angle
Qty:
Regular price Now $16.70   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $16.70 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

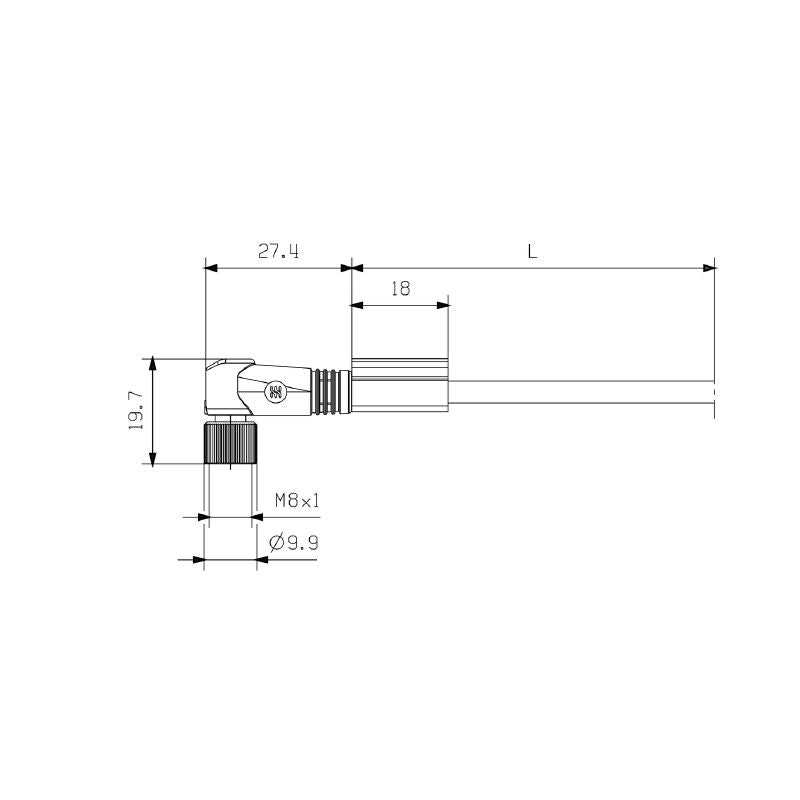

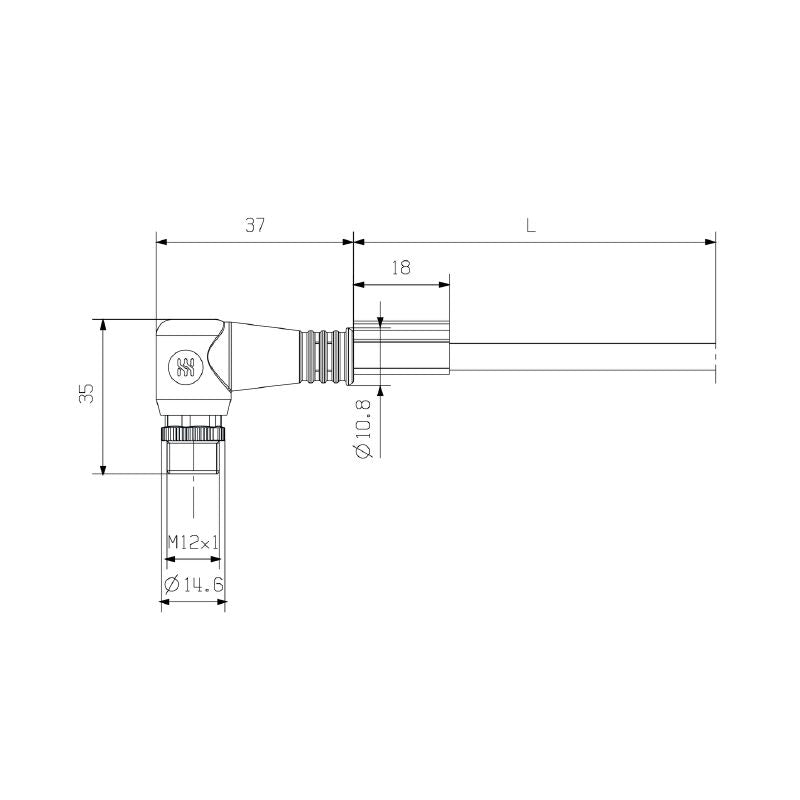

Introducing a reliable connecting line from our sensor and actuator collection, featuring both M12 and M8 connectors This 5-meter cable is equipped with a 4-pole configuration and uniquely designed angled connectors at 90 degrees for easy installation It boasts a PUR sheath that is halogen-free, providing durability without compromising safety Please note that this model does not include shielding or an LED indicator.

Perfect for your connectivity needs in various applications.

Features and Benefits:

    •Compliant with RoHS regulations and includes an exemption status.

    •Hydrolysis and microbe resistant.

    •LABS-free design.

    •Suitable for use in cable carriers.

Specifications:

 Cable length 5 m
 Number of poles 4
 Core cross-section 0.25 mm²
 Outside diameter 4.4 mm ± 0.2 mm
 Temperature range, moving -25...80 °C
 Temperature range, stationary -40...80 °C
 Nominal current 4 A
 Nominal voltage 30 V
 Connection thread M12 / M8
 Insulation resistance 10^8 Ω
 Protection degree IP65, IP66, IP67, IP68, IP69
 Plugging cycles ≥ 100
 Bending cycles 12 Mio
 Acceleration 5 m/s²
 Bending radius, min., moving 10 x cable diameter
 Bending radius, min., stationary 5 x cable diameter
