1906280300 - 3m PUR Sensor/Actuator Line with 12 Poles

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

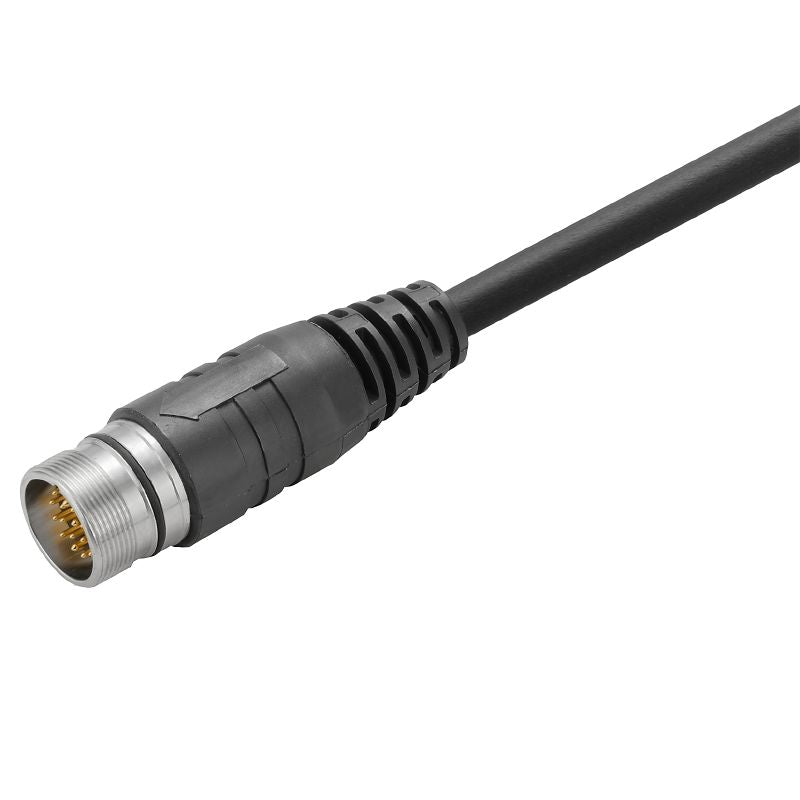

Introducing the Sensor/Actuator Line, featuring a robust 12-pole configuration and extending 3 meters in length, with one end designed without a connector for versatile application This model is equipped with an external thread and is crafted from halogen-free PUR material, ensuring both safety and durability Notably, it is unshielded and does not include an LED indicator Rest easy knowing this product meets RoHS standards and has a UL File number of E486077 for compliance.

Features and Benefits:

•Bending cycles rated at 2 million.

•Suitable for cable carriers.

•Resistance to welding beads is noted as no.

•Has an outside diameter of 7.7 mm with a tolerance of ± 0.3 mm.

•Available in black sheathing color.

•Nominal current capacity of 8 A.

•Nominal voltage of 120 V.

•Rated protection degree of IP67.

•Connection side features an M23 external thread with angled outlet direction.

Specifications:
