1886441000 - 10m M23 Female Socket in Halogen-Free PUR Material

1886441000 - 10m M23 Female Socket in Halogen-Free PUR Material

SKU: SKU: 1886441000

Variant:
  • 1886441000 - 10m M23 Female Socket in Halogen-Free PUR Material
Regular price Now $62.99
Regular price BEFORE   $0.00 Sale price Now $62.99
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

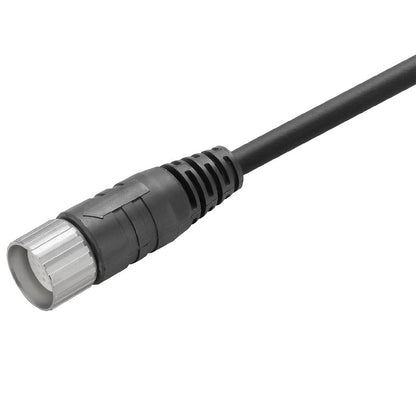

Introducing our advanced sensor/actuator component, featuring a female socket with a straight design and a robust M23 connector at one end This 10-meter cable is crafted from halogen-free PUR material, ensuring safety and environmental friendliness It comes without shielding or an LED, making it a perfect choice for various applications requiring reliable connectivity.

Features and Benefits:

    •Has a bending cycle endurance of 2 million.

    •Suitable for cable carriers.

    •Designed to be used in temperatures ranging from -25 to 80 °C when in motion.

    •Designed to be used in temperatures ranging from -50 to 80 °C when stationary.

    •Insulation material is made from TPM.

    •Gold-plated contact surface.

    •Offers a high degree of protection with IP67 rating.

Specifications:

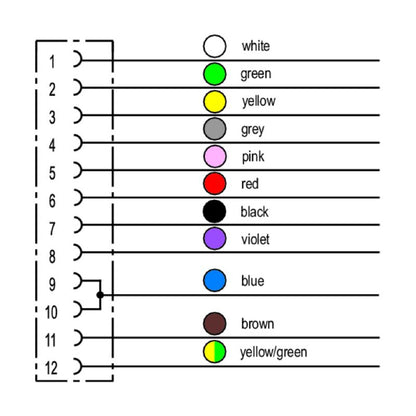

 Number of poles 12
 Cable length 10 m

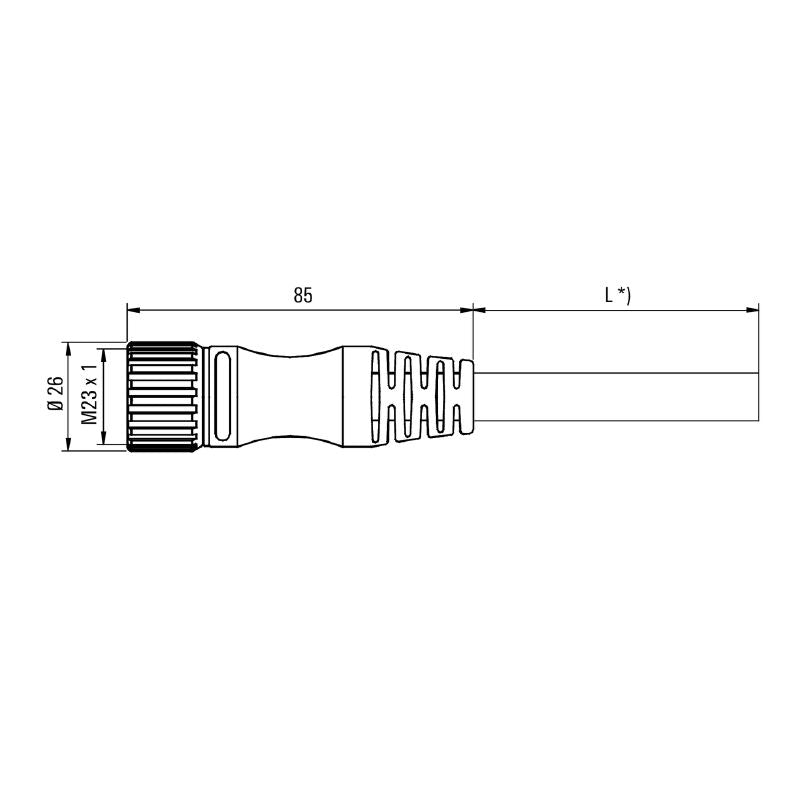

 Outside diameter 7.7 mm ± 0.3 mm
 Nominal current 8 A
 Nominal voltage 120 V
 Threaded ring material Diecast zinc
 Tightening torque M23: 2.5 Nm
 Pollution severity 2
 Protection degree IP67
 Connection side version M23, Socket, Inner thread, straight
