1880472000 - 20m Unshielded M8 Sensor/Actuator Line with 4 Poles

1880472000 - 20m Unshielded M8 Sensor/Actuator Line with 4 Poles

SKU: SKU: 1880472000 Download PDF

Variant:
  • 1880472000 - 20m Unshielded M8 Sensor/Actuator Line with 4 Poles
Regular price Now $33.22
Regular price BEFORE   $0.00 Sale price Now $33.22
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

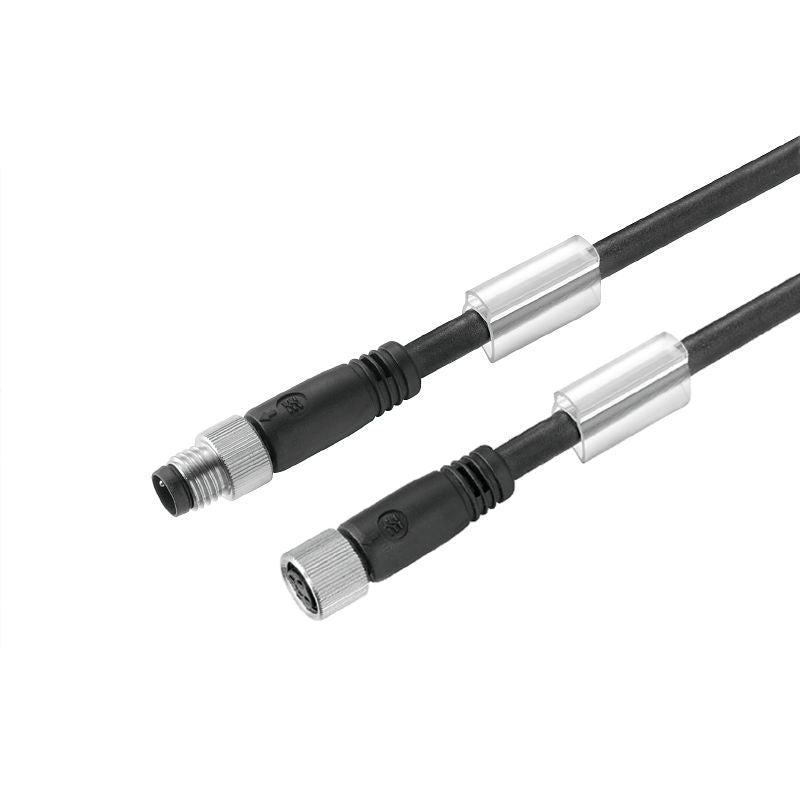

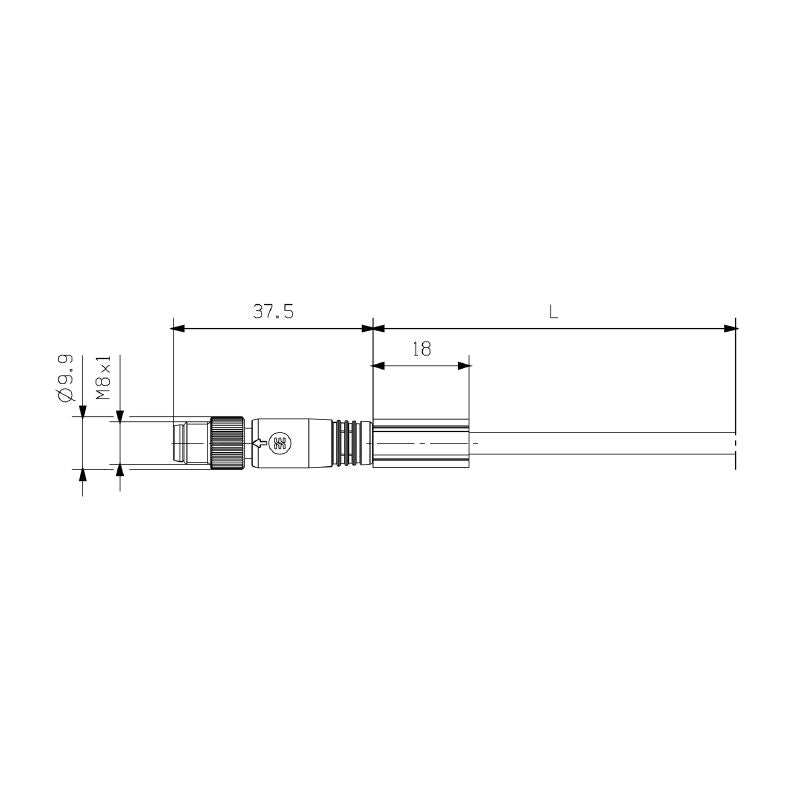

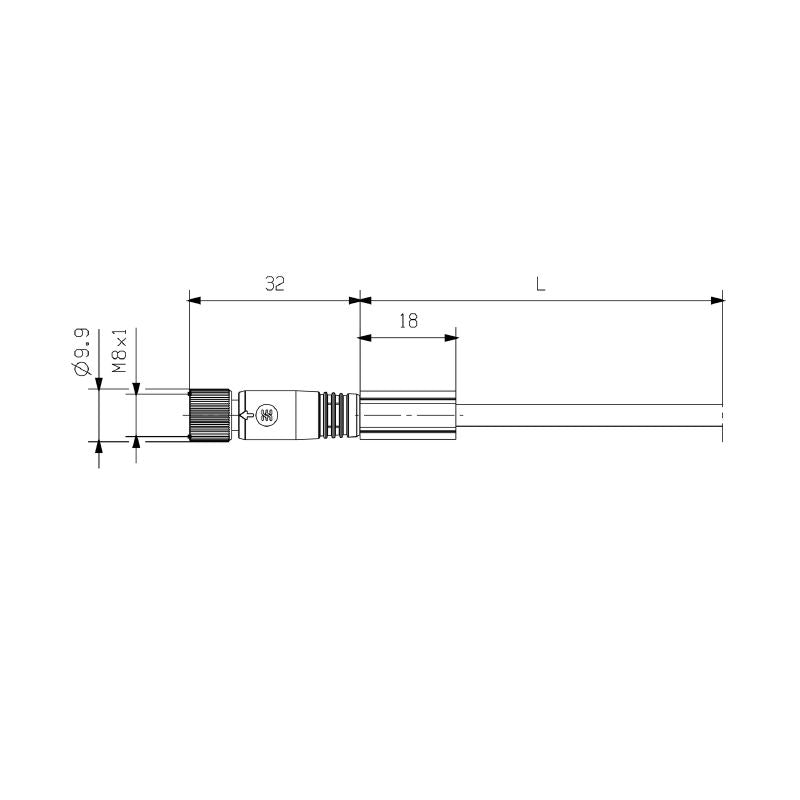

This 20-meter connecting line is ideal for linking sensors and actuators, featuring four poles with both straight pin and socket configurations Crafted from halogen-free PUR sheath material, this unshielded cable meets RoHS standards and is verified with UL file number E307231, ensuring safety and compliance for your projects.

Features and Benefits:

    •Compliant with RoHS exemption.

    •Core cross-section of 0.25 mm².

    •Hydrolysis and microbe resistant.

    •LABS-free construction.

    •Suitable for cable carriers.

    •Gold-plated contact surface.

    •IP69, IP65, and IP66 protection degrees.

    •Temperature range of housing is -25…+85 °C.

Specifications:

 Cable length 20 m

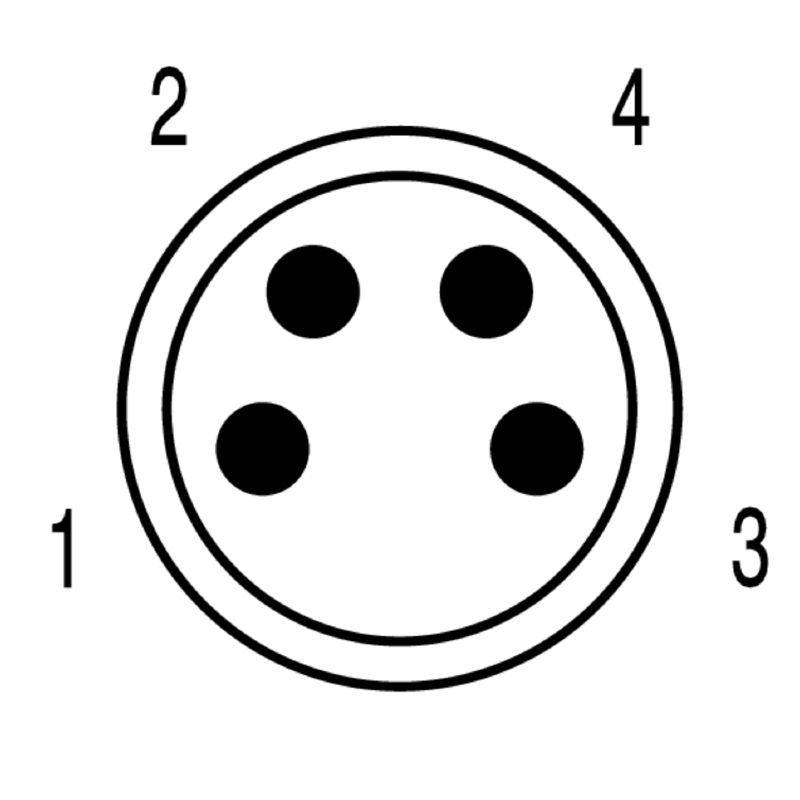

 Number of poles 4
 Outside diameter 4.4 mm ± 0.2 mm
 Bending cycles 12 Mio.
 Nominal current 4 A
 Nominal voltage 30 V
 Insulation resistance 10^8 Ω
 Protection degree IP69
 Temperature range, moving -25...80 °C
 Temperature range, stationary -40...80 °C
