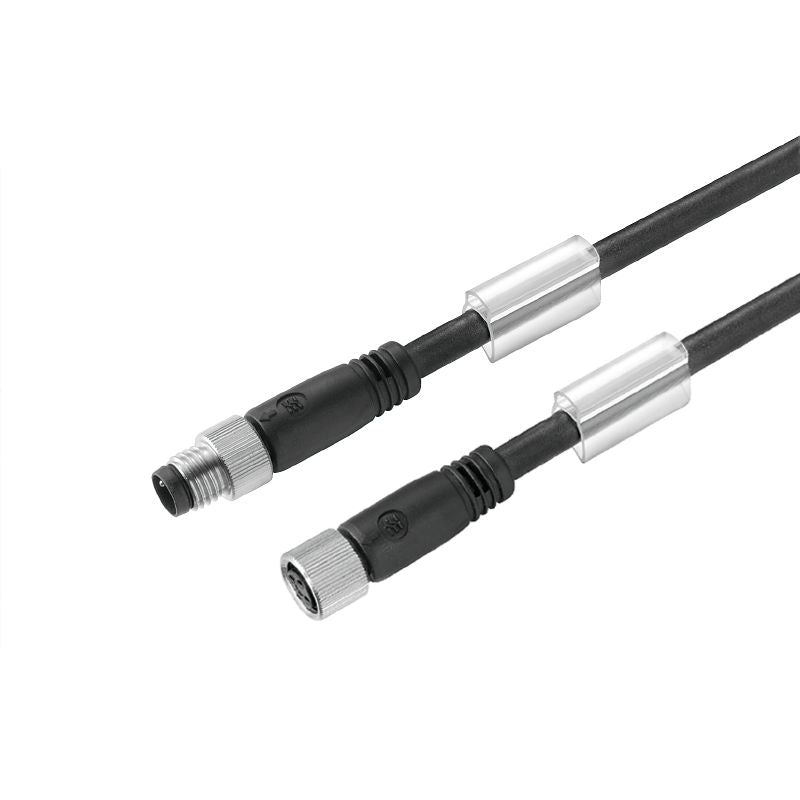

1880470020 - 0.2m M8 Connecting Line, 4 Poles, PUR Sheath

1880470020 - 0.2m M8 Connecting Line, 4 Poles, PUR Sheath

SKU: SKU: 1880470020   Download PDF

Select a Variant:
  • 1880470020 - 0.2m M8 Connecting Line, 4 Poles, PUR Sheath
Qty:
Regular price Now $10.96   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $10.96 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

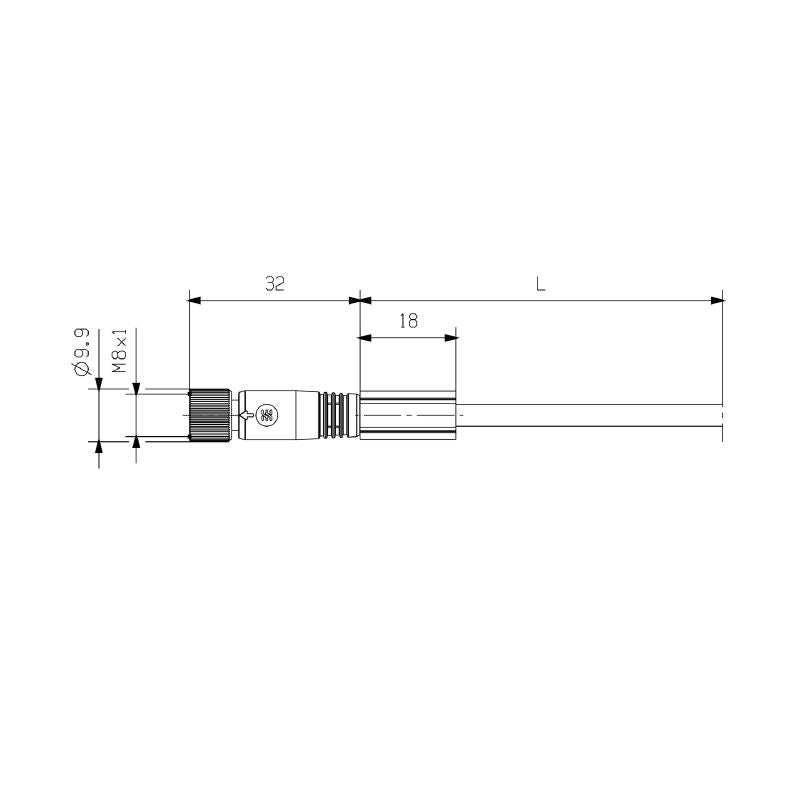

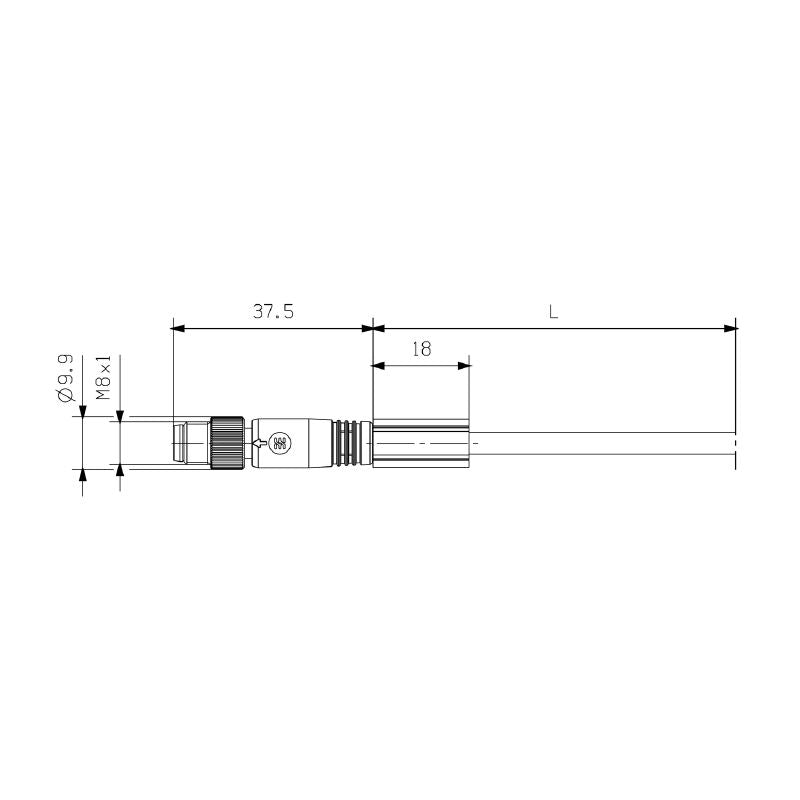

Enhance your sensor and actuator connections with this 02-meter connecting line, featuring a 4-pole configuration Designed with a straight pin and socket setup, it offers straightforward connectivity without shielding Crafted from high-quality PUR sheath material, this product is halogen-free and complies with ROHS standards, ensuring safety and reliability in your applications Perfect for various electronic setups, it delivers both function and peace of mind.

Features and Benefits:

    •Does not include LED.

    •Halogen-free material.

    •Hydrolysis and microbe resistant.

    •LABS-free.

    •Suitable for cable carriers.

Specifications:

 Cable length 0.2 m
 Number of poles 4
 Outside diameter 4.4 mm ± 0.2 mm
 Nominal current 4 A
 Nominal voltage 30 V
 Insulation resistance 10^8 Ω
 Temperature range, moving -25...80 °C
 Temperature range, stationary -40...80 °C
 Protection degree IP69, IP65, IP66
 Bending cycles 12 Mio
 Bending radius, min., moving 10 x cable diameter
 Bending radius, min., stationary 5 x cable diameter
 Connection thread M8
 Plugging cycles ≥ 100
 Core cross-section 0.25 mm²
 Weight 15.84 g
