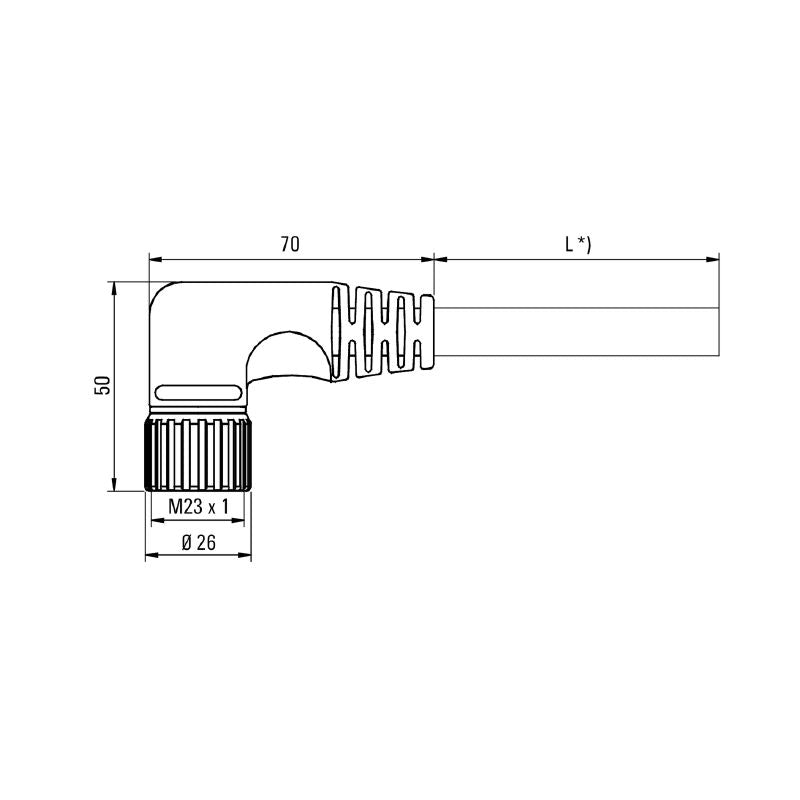

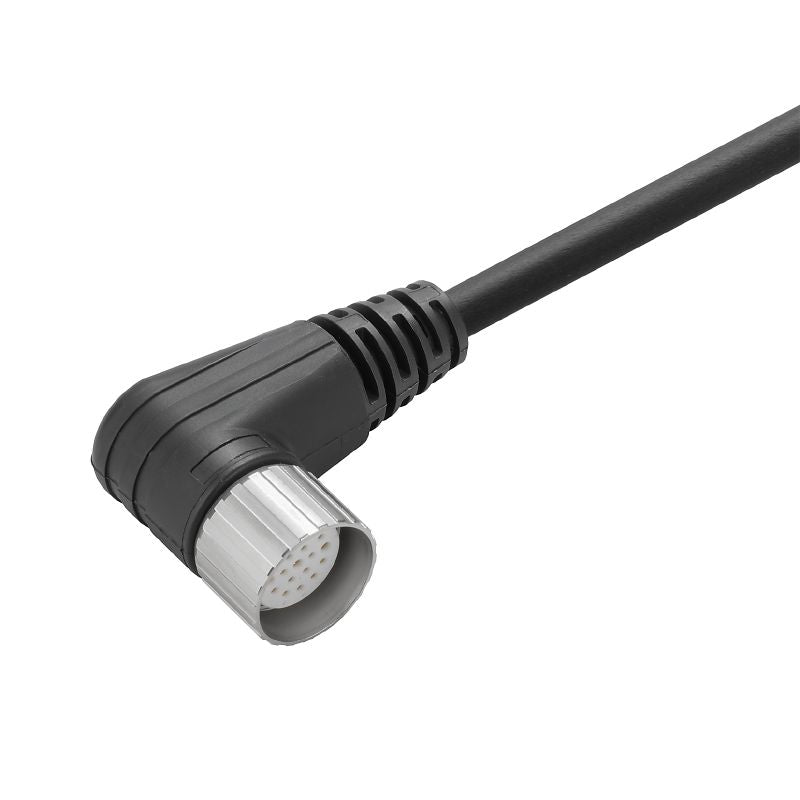

1877440150 - 1.5m M23 12-Pole Sensor/Actuator Line, PUR Sheath

1877440150 - 1.5m M23 12-Pole Sensor/Actuator Line, PUR Sheath

SKU: SKU: 1877440150

Select a Variant:
  • 1877440150 - 1.5m M23 12-Pole Sensor/Actuator Line, PUR Sheath
Qty:
Regular price Now $40.17   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $40.17 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover the versatility of this sensor/actuator line, featuring a 15-meter length designed for efficient connectivity With an M23 connector at one end and an open end for flexibility, this line includes 12 poles to support various applications It boasts a PUR sheath that is halogen-free, ensuring safety and durability Please note, the product does not include shielding or an LED indicator, making it straightforward for use in your projects.

Features and Benefits:

    •Compliant with RoHS exemption 6c.

    •Suitable for cable carriers.

    •Plug type features M23 inner thread, angled socket.

    •Gold-plated contact surface.

    •No usage of halogen in sheath material.

Specifications:

 Bending cycles 2 Mio
 Cable length 1.5 m

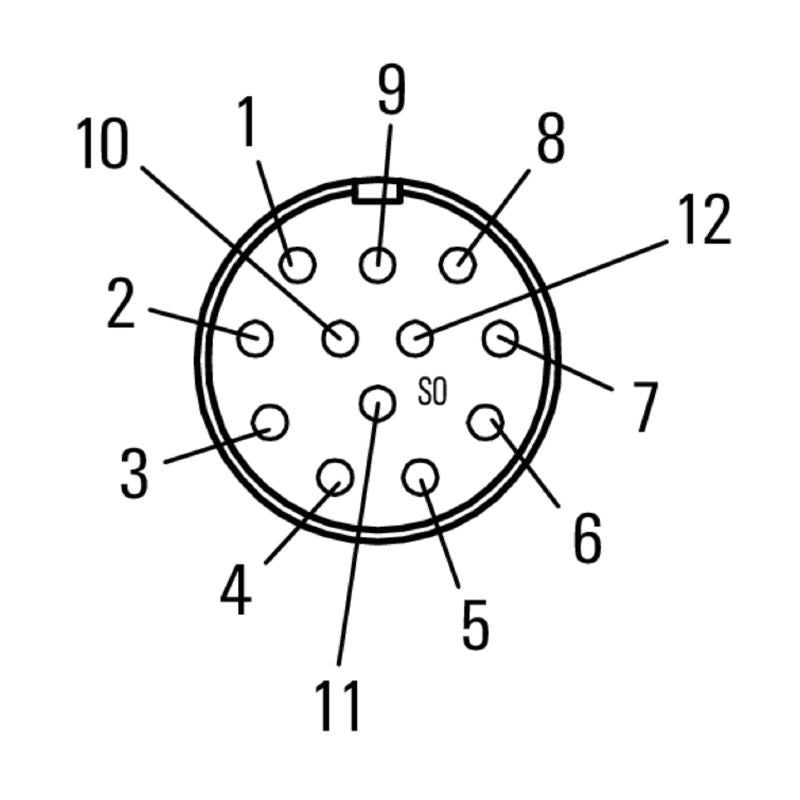

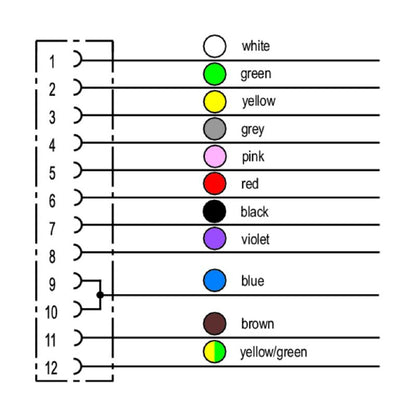

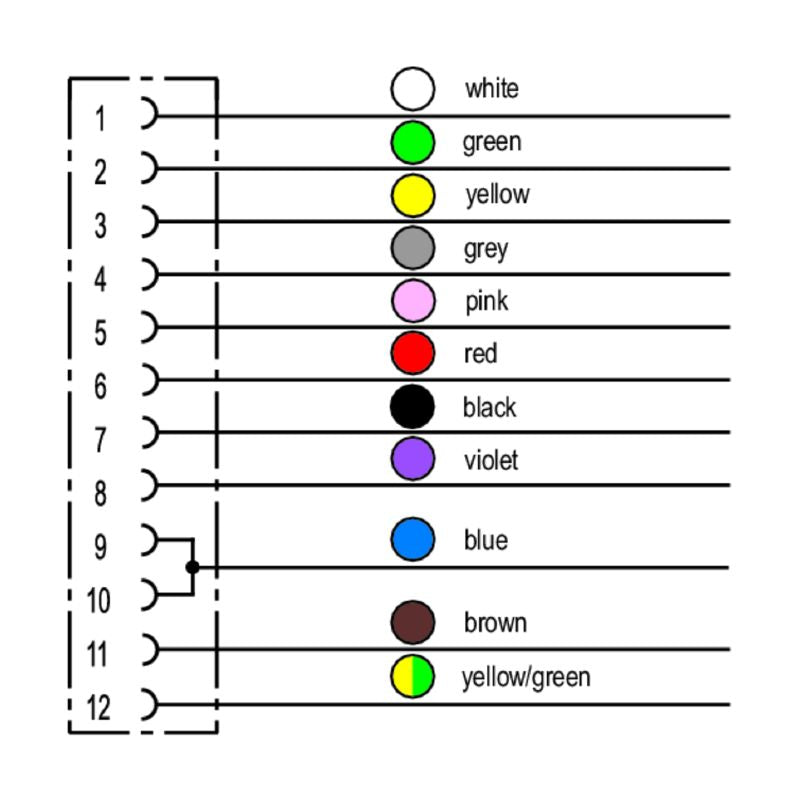

 Number of poles 12
 Outer diameter 7.7 mm ± 0.3 mm
 Sheath material PUR
 Insulation resistance 10^12 Ω
 Nominal current 8 A
 Nominal voltage 120 V
 Plugging cycles ≥ 50
 Protection degree IP67
 Temperature range, moving -25...80 °C
 Temperature range, stationary -50...80 °C
 Threaded ring material Diecast zinc
 Tightening torque M23: 2.5 Nm
