1873310450 - 4.5m Shielded M12 Connecting Line with 2 Poles

1873310450 - 4.5m Shielded M12 Connecting Line with 2 Poles

SKU: SKU: 1873310450 Download PDF

Variant:
  • 1873310450 - 4.5m Shielded M12 Connecting Line with 2 Poles
Regular price Now $57.04
Regular price BEFORE   $0.00 Sale price Now $57.04
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

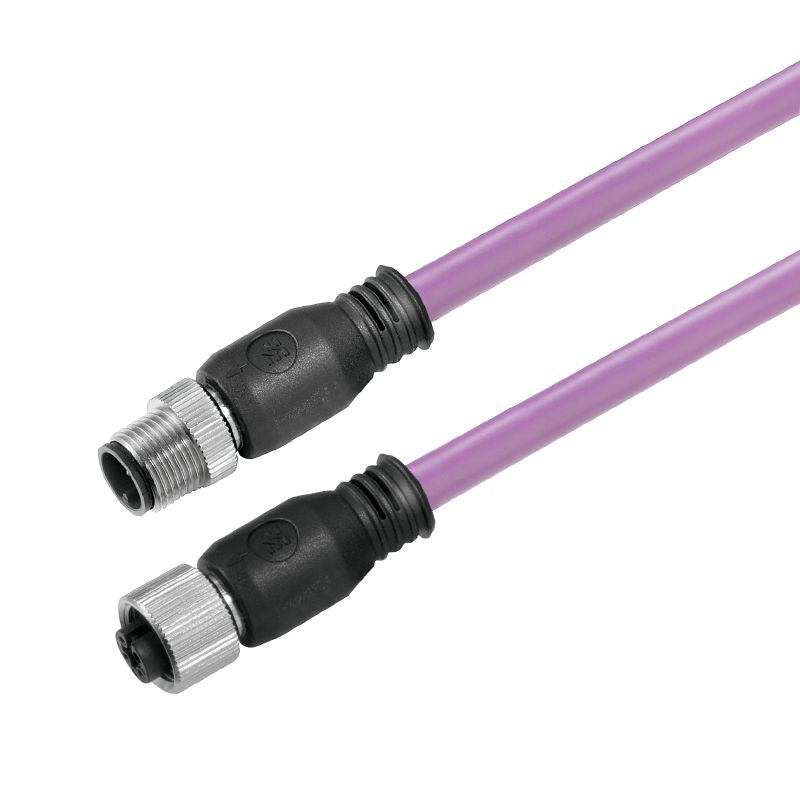

Introducing a versatile M12 connecting line, measuring 45 m in length, designed with a straight socket and pin configuration featuring two poles This line is equipped with a protective shielding and is LED-free Constructed from durable PUR sheath material, it is also halogen-free, making it a safe choice for various applications Perfect for reliable connections in your setups.

Features and Benefits:

    •Complies with RoHS and has a certificate number E307231.

    •Rated for a nominal current of 4A and nominal voltage of 250V.

    •Protected against dirt and moisture with an IP67 rating.

    •Configured for both stationary and moving applications with wide temperature ranges.

Specifications:

 Cable Length 4.5 m
 AWG 24
 Outer Diameter 7.8 mm ± 0.2 mm
 Insulation TPE
 Sheath Material PUR
 Bending Radius (Moving) 12 x cable diameter
 Bending Radius (Stationary) 7.5 x cable diameter
 Plug Type M12 B-coded, IP67, male and female
 Temperature Range (Moving) -20 to 60 °C
 Temperature Range (Stationary) -40 to 70 °C
