1873160000 - IP65 4-Pole Valve Connector, 18mm, 230V, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

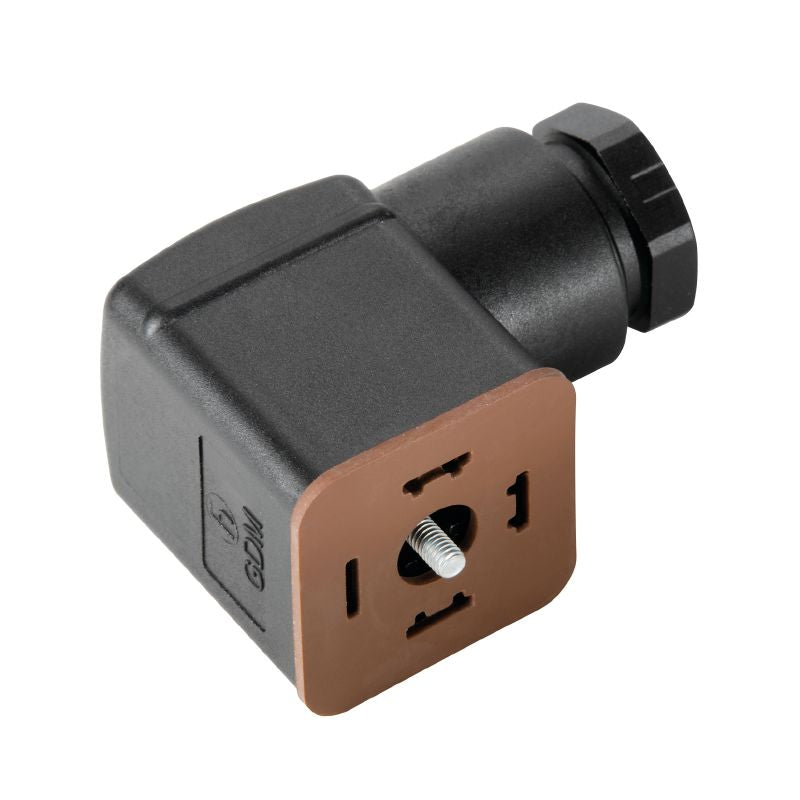

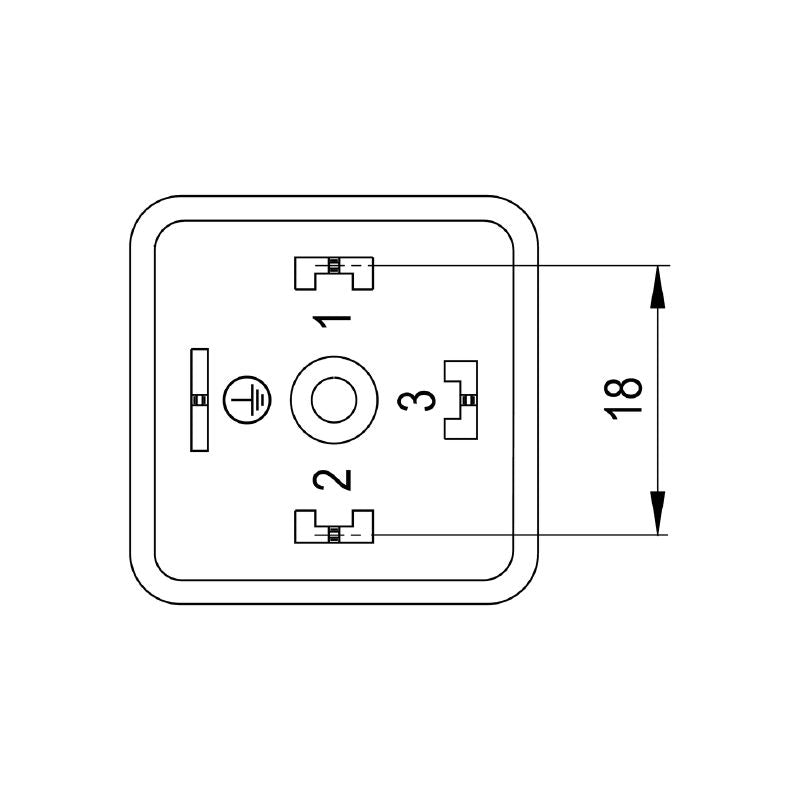

Enhance your projects with this versatile valve plug-in connector, expertly crafted for on-site assembly Featuring 4 poles in an 18 mm design, it operates seamlessly without circuit integration Accommodating voltage levels up to 230 V, it supports conductor cross-sections from 034 mm² to 15 mm² Adhering to RoHS standards, it boasts an impressive IP65 protection rating, which upgrades to IP67 when securely connected.

This connector is built to function within a temperature range of -30°C to +90°C, making it a reliable choice for various applications.

Features and Benefits:

•Protective circuits included for safety.

•Allows for a variety of conductor cross-sections from 0.34 mm² to 1.5 mm².

•Suitable for use in environments with pollution severity rating of 3.

•Efficient connection type through screw mechanism.

•A maximum of 50 plugging cycles supported.

Specifications:
