1873100000 - 250V 4-Pole Plug-In Connector for Field Assembly

1873100000 - 250V 4-Pole Plug-In Connector for Field Assembly

SKU: SKU: 1873100000   Download PDF

Select a Variant:
  • 1873100000 - 250V 4-Pole Plug-In Connector for Field Assembly
Qty:
Regular price Now $2.15   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $2.15 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

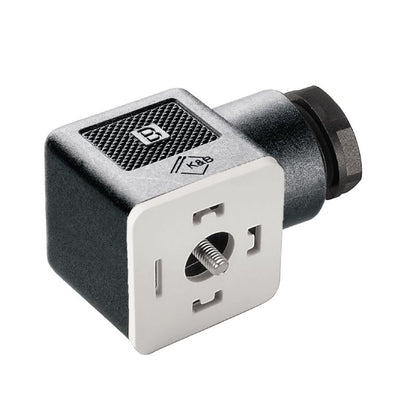

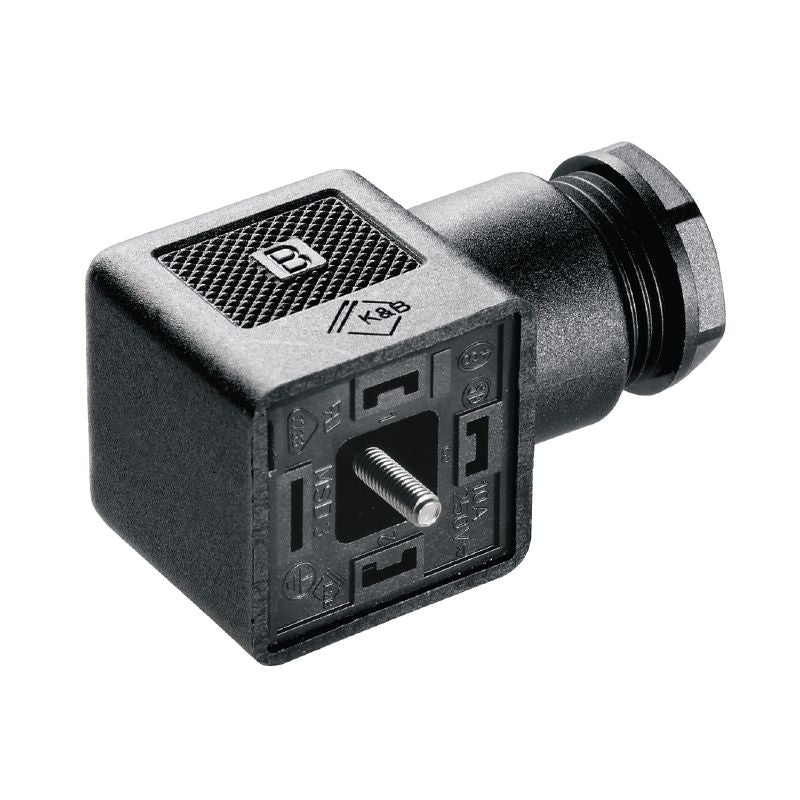

The plug-in valve connector is expertly crafted for easy field assembly and comes equipped with four poles that do not include internal circuitry It operates at a voltage of 250 V and accommodates conductor cross-sections from 034 mm² to 15 mm² The connector also allows for cable diameters ranging from 8 mm to a maximum of 10 mm, offering versatility in use.

Features and Benefits:

    •Cable gland with PG 11.

    •Protection degree of IP65.

    •Operates over a broad temperature range from -30 to +100 °C.

    •Nominal current rated at 10 A.

    •Plugging cycles of at least 50.

Specifications:

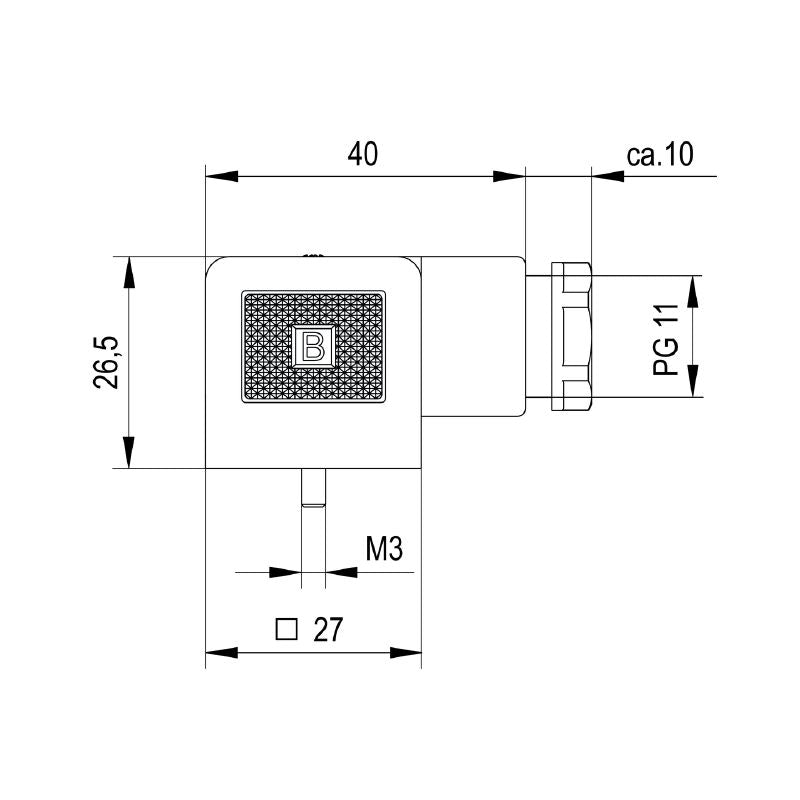

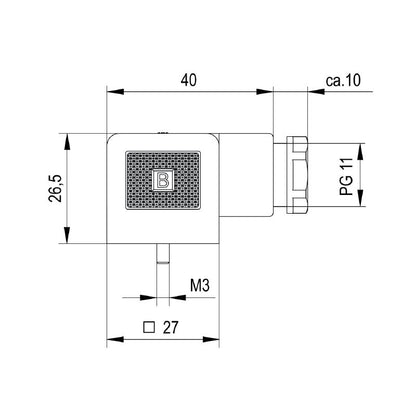

 Cable diameter, max. 10 mm
 Cable diameter, min. 8 mm
 Conductor cross-section, max. 1.5 mm²
 Conductor cross-section, min. 0.34 mm²
 Connection cross-section, max. 1.5 mm²
 Connection cross-section, min. 0.34 mm²
 Contact material CuSn
 Contact surface Ni
 Housing main material PA 6 GF
 Insulation resistance 10^10 Ω
 LED No
 Nominal voltage 250 V

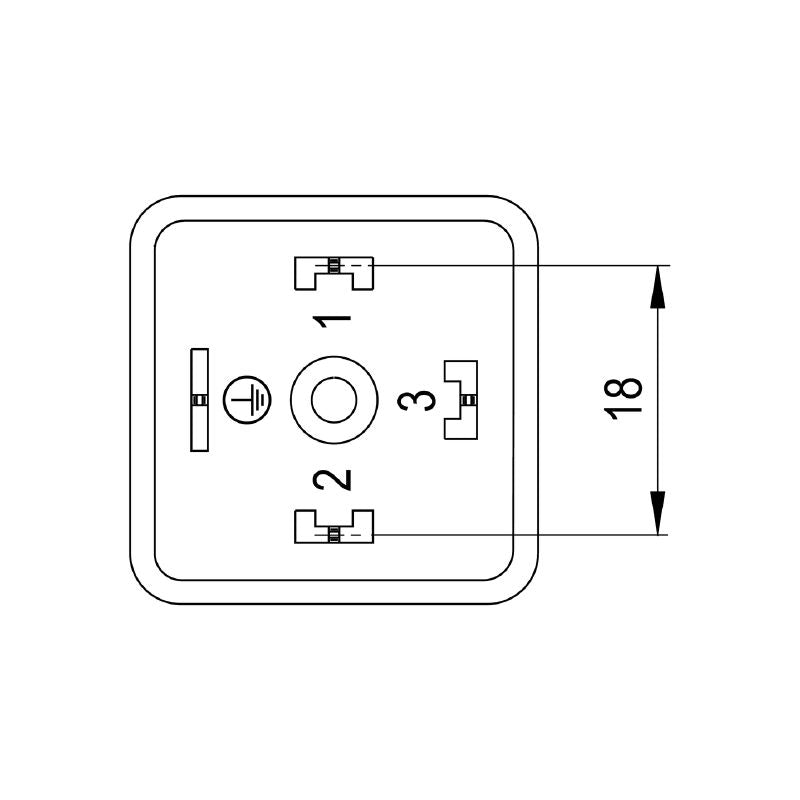

 Number of poles 4
 Pollution severity 3
 Shield connection No
 Type of connection Screw connection
 Cable gland PG 11
