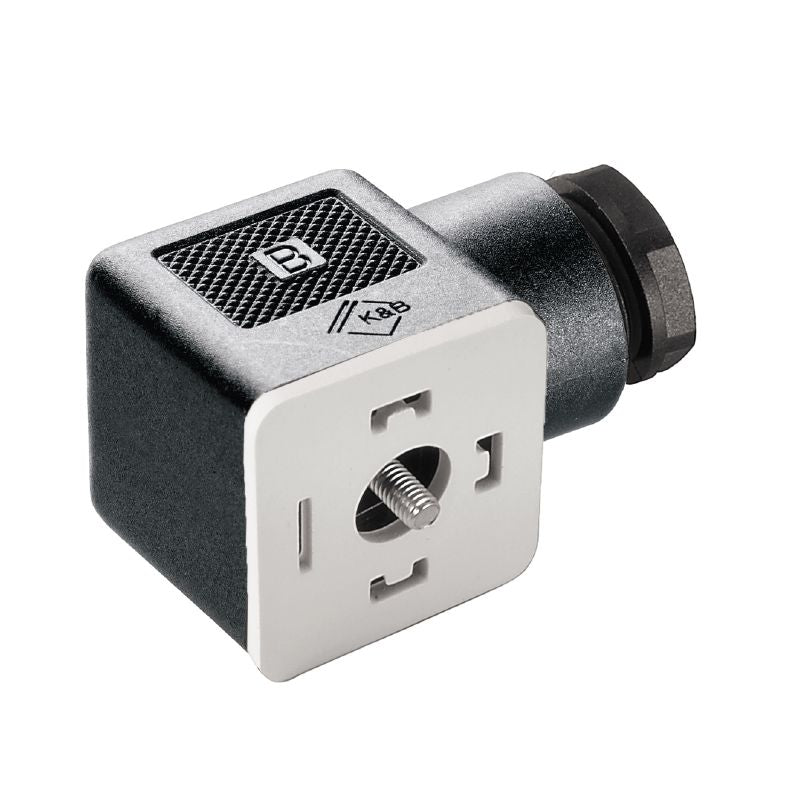

1873090000 - 3-Pole 250V Plug-In Valve Connector for Easy Field Assembly

1873090000 - 3-Pole 250V Plug-In Valve Connector for Easy Field Assembly

SKU: SKU: 1873090000   Download PDF

Select a Variant:
  • 1873090000 - 3-Pole 250V Plug-In Valve Connector for Easy Field Assembly
Qty:
Regular price Now $2.08   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $2.08 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the SAIB-VSA-3P/250/11-OB, a robust valve plug-in connector engineered for easy field assembly This connector features three poles and is circuitry-free, delivering reliable performance at a voltage of 250 V It accommodates conductors with cross-sectional areas between 034 and 15 mm², making it a versatile choice for various applications.

Features and Benefits:

    •RoHS compliant.

    •IP65 protection degree.

    •Temperature range of housing from -30 to +100 °C.

    •Screw connection type.

Specifications:

 Cable diameter, max. 10 mm
 Cable diameter, min. 8 mm
 Cable gland PG 11
 Conductor cross-section, max. 1.5 mm²
 Conductor cross-section, min. 0.34 mm²
 Connection cross-section, max. 1.5 mm²
 Connection cross-section, min. 0.34 mm²
 Contact material CuSn
 Contact surface Ni
 Housing main material PA 6 GF
 Insulation resistance 10^10 Ω
 Nominal current 10 A
 Nominal voltage 250 V
 Number of poles 3
 Plugging cycles ≥ 50
 Pollution severity 3
 LED No
