1873050000 - 0.2m M5 Connector with Gold-Plated Contacts, 3 Poles

1873050000 - 0.2m M5 Connector with Gold-Plated Contacts, 3 Poles

SKU: SKU: 1873050000 Download PDF

Variant:
  • 1873050000 - 0.2m M5 Connector with Gold-Plated Contacts, 3 Poles
Regular price Now $9.03
Regular price BEFORE   $0.00 Sale price Now $9.03
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

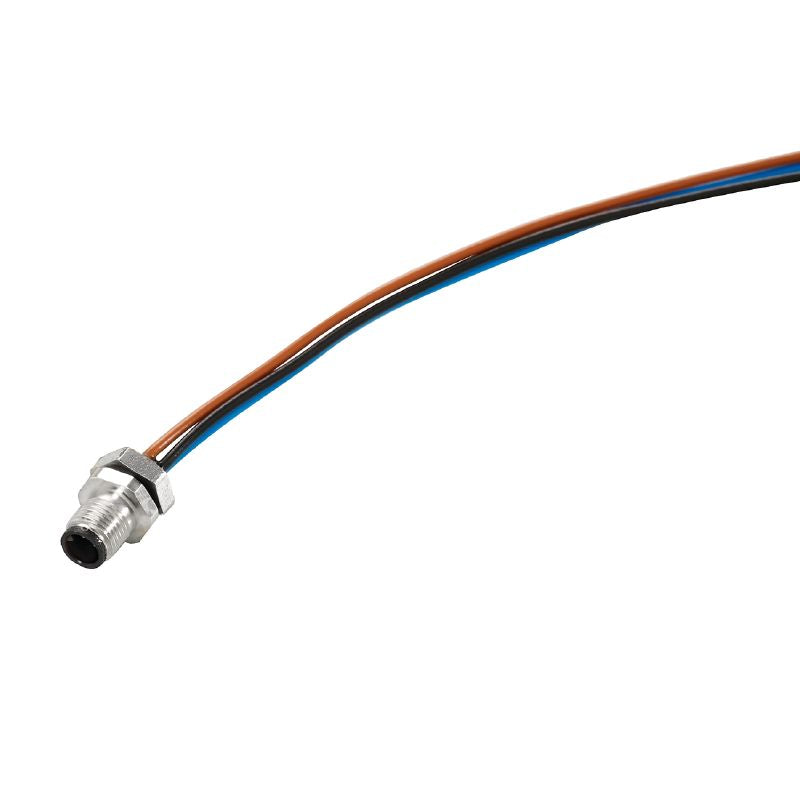

Introducing a versatile built-in connector, featuring a straight M5 pin configuration with three poles and a convenient mounting thread This connector comes with a cable measuring 02 meters in length It is designed to meet RoHS compliance standards and boasts gold-plated contact surfaces for superior conductivity, ensuring reliable performance in a variety of applications.

Features and Benefits:

    •RoHS compliant.

    •Gold-plated contact surface.

    •IP67 protection when screwed in.

    •Temperature range for housing of -25 to +80 °C.

    •Plugging cycles rated at 500 or more.

Specifications:

 Core cross-section 0.14 mm²
 Nominal current 1 A
 Nominal voltage 60 V
 Protection degree IP67
 Strand / cable length 0.2 m
 Type of connection Pin
 Cable gland M 5
 Housing main material Brass, nickel-plated
 Contact surface Gold-plated
 Plugging cycles ≥ 500
 Temperature range of housing -25…+80 °C
