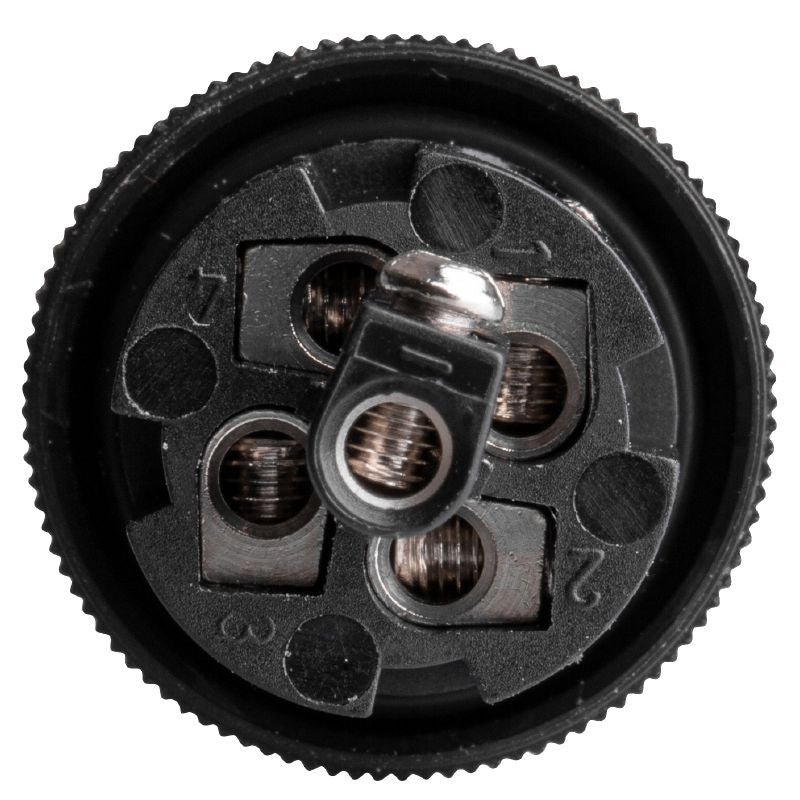

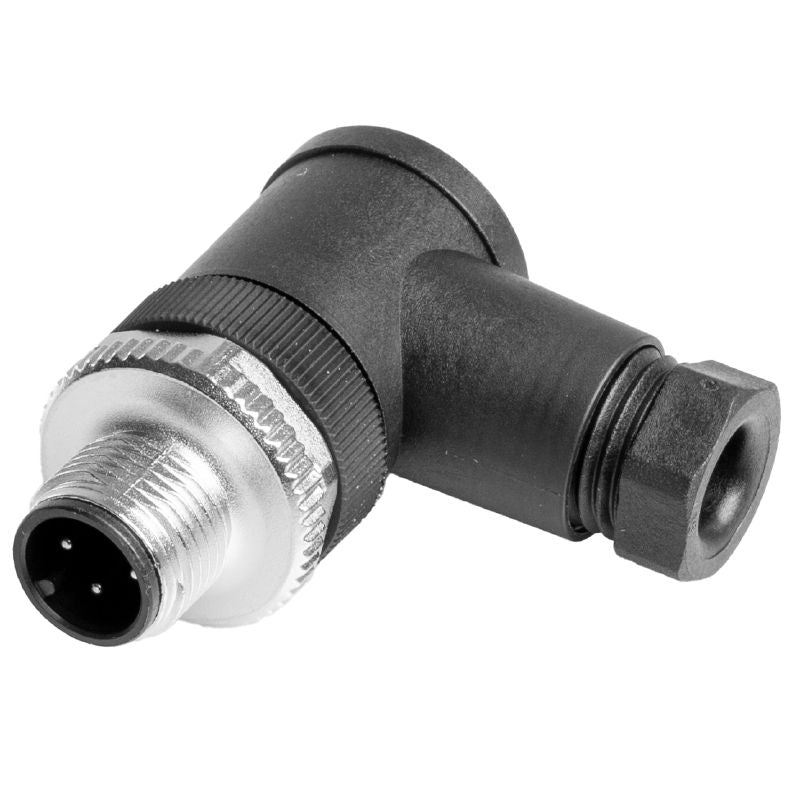

1837560000 - M12 Field Attachable Connector, IP67, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a reliable field attachable connector for M12 connections, recognized as Type SAIS-ZWW This connector is RoHS certified and boasts an impressive IP67 rating, making it ideal for diverse applications Constructed with a durable PA housing, it features male gender contact with a CuSnZn contact surface Capable of handling a nominal current of 4A and a voltage of 60V, it supports conductor cross-sections between 0.

14 mm² and 075 mm² Designed with an A-coded configuration, this connector ensures secure and efficient performance in various environments.

Features and Benefits:

•RoHS compliant.

•Temperature range of housing from -25 to +85 °C.

•Screw connection type.

•Protection degree IP67.

•No shield connection.

Specifications:
