1824591500 - 15m PUR Sensor/Actuator Cable, 3-Pole Design

1824591500 - 15m PUR Sensor/Actuator Cable, 3-Pole Design

SKU: SKU: 1824591500

Variant:
  • 1824591500 - 15m PUR Sensor/Actuator Cable, 3-Pole Design
Regular price Now $17.70
Regular price BEFORE   $0.00 Sale price Now $17.70
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

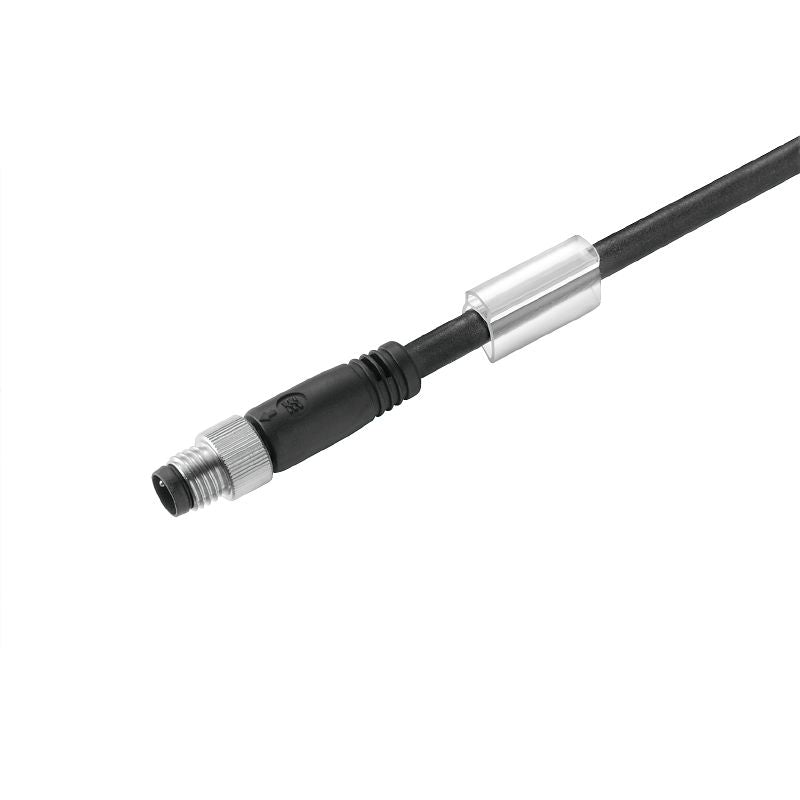

Introducing the SAIL-M8G-3-15U sensor and actuator line, featuring a substantial length of 15 meters and a unique configuration that excludes a connector on one end This cable incorporates three poles with a straight pin design and is unshielded for straightforward integration Constructed from halogen-free PUR material, it offers a robust solution for diverse applications.

Features and Benefits:

    •Compliant with RoHS and reaches SVHC requirements.

    •Halogen-free sheath material.

    •Cable offers resistance to hydrolysis and microbes.

    •Suitable for cable carriers.

Specifications:

 Diameter 3.6 mm
 Cable length 15 m
 Number of poles 3
 Core cross-section 0.25 mm²
 Insulation PP
 Temperature range, moving -25...60 °C
 Temperature range, stationary -50...80 °C
 Insulation resistance 10^8 Ω
 Nominal current 4 A
 Nominal voltage 60 V
 Plugging cycles ≥ 100
 Protection degree IP65, IP66, IP67, IP68, IP69
 Bending radius, min., moving 10 x cable diameter
 Bending radius, min., stationary 5 x cable diameter
