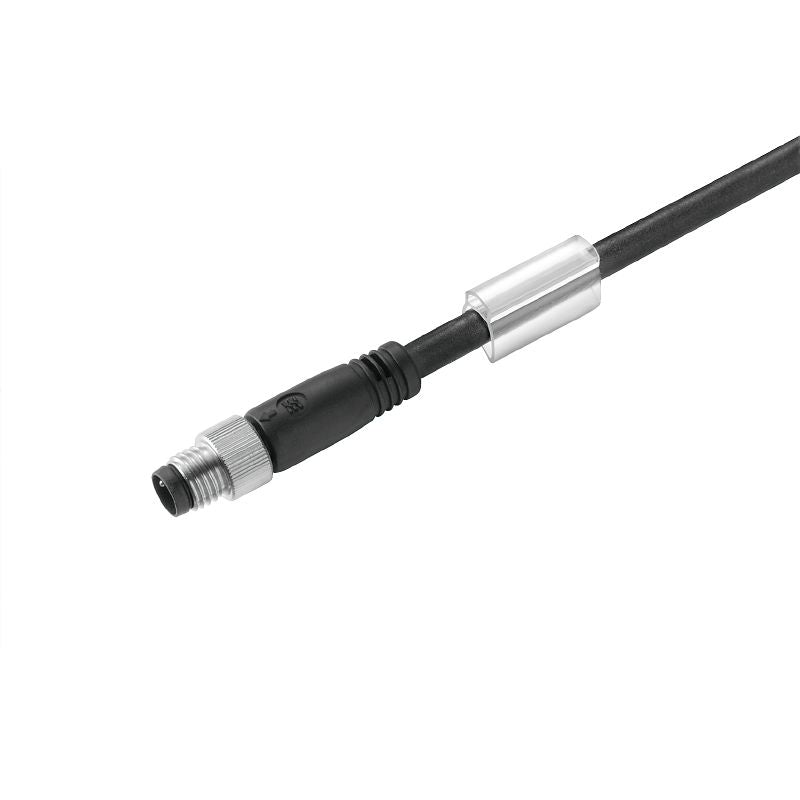

1824590010 - M8 3-Pole Sensor Line, 0.1m Length, Halogen-Free PUR Sheath

1824590010 - M8 3-Pole Sensor Line, 0.1m Length, Halogen-Free PUR Sheath

SKU: SKU: 1824590010

Select a Variant:
  • 1824590010 - M8 3-Pole Sensor Line, 0.1m Length, Halogen-Free PUR Sheath
Qty:
Regular price Now $4.99   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $4.99 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a versatile sensor/actuator line featuring a design tailored for a non-connector end This M8 type model boasts three straight pins and measures 01 meters in length The cable, crafted from halogen-free PUR material, is unshielded and does not incorporate an LED, making it a functional choice for various applications.

Features and Benefits:

    •Compliant with RoHS.

    •Hydrolysis and microbe resistant.

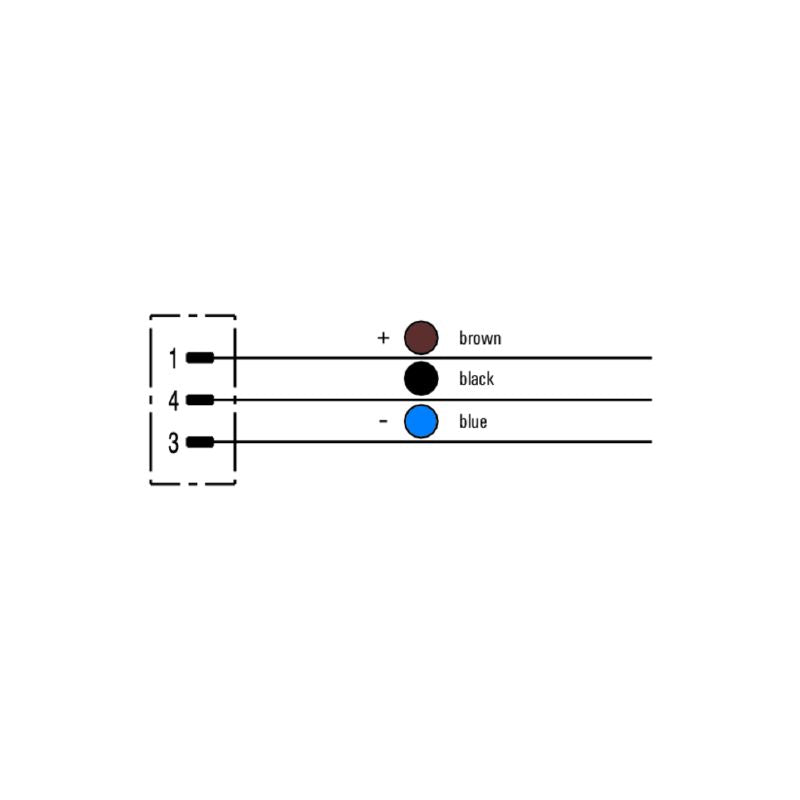

    •Colored coding includes brown, blue, and black.

    •Protection degree of IP65, IP66, IP67, IP68, and IP69 when screwed in.

    •Suitable for cable carriers.

Specifications:

 Diameter 3.6 mm
 Cable length 0.1 m
 Core cross-section 0.25 mm²
 Nominal current 4 A
 Nominal voltage 60 V
 Temperature range, moving -25...60 °C
 Temperature range, stationary -50...80 °C
 Bending cycles 5 Mio
 Insulation resistance 10^8 Ω
 Plugging cycles ≥ 100
 Electrical properties Gold-plated contact surface
 Connection thread M8
 Version pin, straight
 Sheath material PUR
