1824570100 - 1m M8 Connection Cable for Sensors & Actuators

1824570100 - 1m M8 Connection Cable for Sensors & Actuators

SKU: SKU: 1824570100 Download PDF

Variant:
  • 1824570100 - 1m M8 Connection Cable for Sensors & Actuators
Regular price Now $10.67
Regular price BEFORE   $0.00 Sale price Now $10.67
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

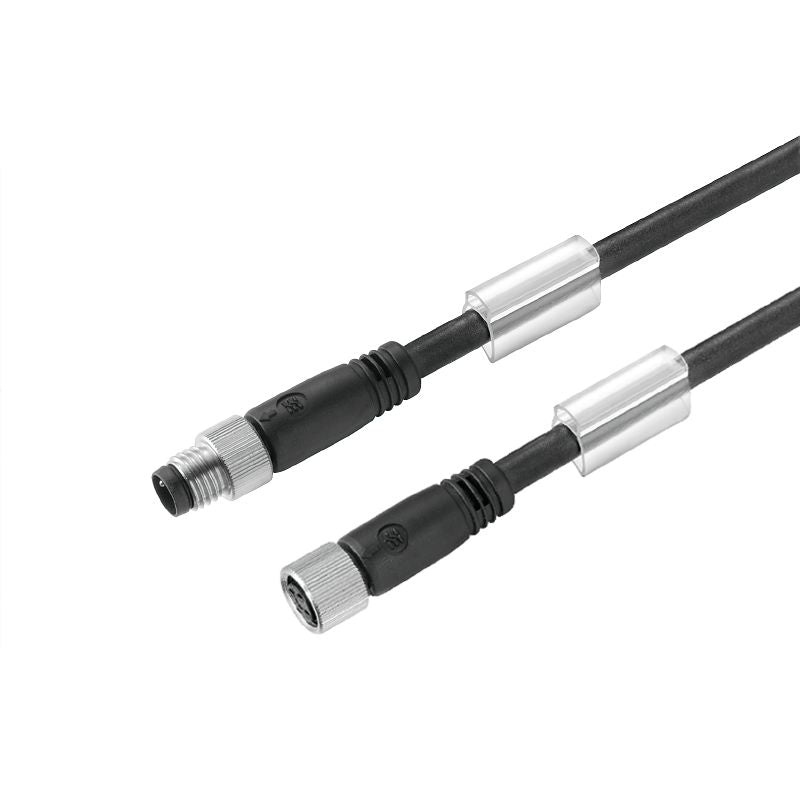

Introducing the SAIL-M8GM8G-3-10U, a reliable connection line perfect for your sensor and actuator needs This cable is equipped with M8 connectors on each end and boasts a length of 1 meter, featuring a straight socket layout for easy installation Crafted from non-halogenated PUR material, it offers durability without shielding or an LED indicator, making it a straightforward choice for various applications.

Features and Benefits:

    •Not shielded.

    •Straight socket configuration.

Specifications:

 Diameter 3.6 mm
 Cable length 1 m
 Core cross-section 0.25 mm²
 Number of poles 3
 Outside diameter 3.6 mm + 0.15 mm
 Temperature range, moving -25...60 °C
 Temperature range, stationary -50...80 °C
 Nominal current 4 A
 Nominal voltage 60 V
 Protection degree IP65, IP66, IP67, IP68, IP69
 Connection thread M8 / M8
 Coding A-coded
 Contact surface Gold-plated
 Sheath material PUR
 Torsion resistance 180 °/m
