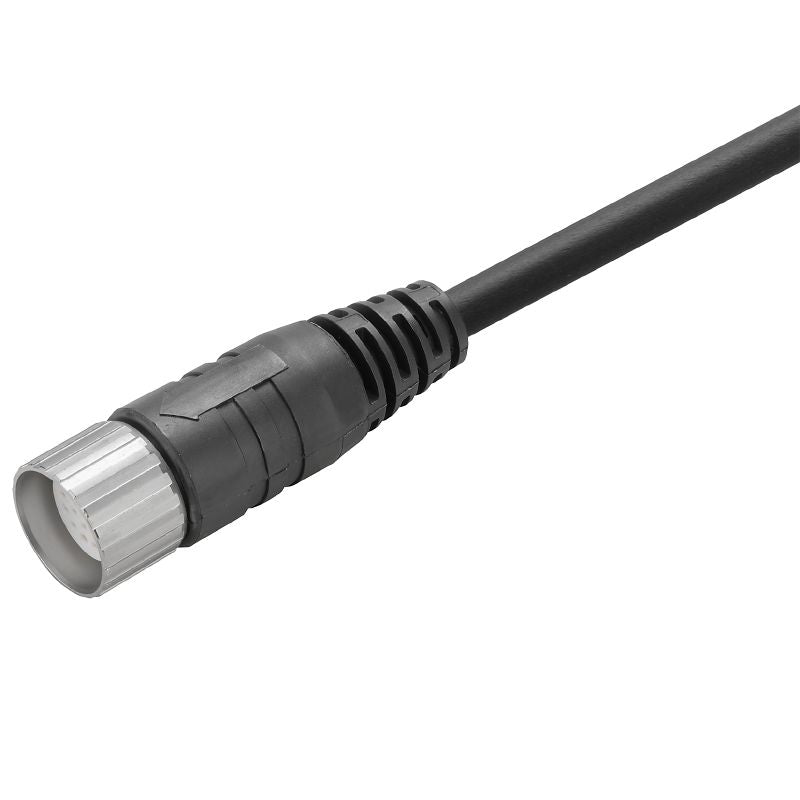

1818186500 - 65m M23 Connector Sensor/Actuator Cable, 19 Poles, PUR Sheath

1818186500 - 65m M23 Connector Sensor/Actuator Cable, 19 Poles, PUR Sheath

SKU: SKU: 1818186500

Select a Variant:
  • 1818186500 - 65m M23 Connector Sensor/Actuator Cable, 19 Poles, PUR Sheath
Qty:
Regular price Now $278.33   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $278.33 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing our sensor/actuator line cable, designed for versatility and high performance This 65-meter cable features an M23 connection at one end and is configured with 19 poles It comes with a straight female socket, ensuring a reliable fit for your applications Crafted from halogen-free PUR material, this cable is both durable and safe for various environments Please note that it does not include shielding or an LED indicator, making it an ideal choice for straightforward connectivity needs.

Features and Benefits:

    •Compliant with RoHS and adheres to relevant exemptions.

    •Can withstand 2 million bending cycles.

    •Temperature range for moving applications is -25 to 80 °C and stationary use is -50 to 80 °C.

    •Connection side features an M23 socket with an inner thread in a straight configuration.

    •Gold-plated contact surface.

    •IP67 protection degree.

Specifications:

 Cable length 65 m
 Number of poles 19
 Outer diameter 9.1 mm ± 0.3 mm
 Nominal current 8 A
 Nominal voltage 120 V
 Insulation resistance 10^12 Ω
 Sheath material PUR
 Sheathing colour black
 Pollution severity 2
 Tightening torque M23: 2.5 Nm
 Socket type Female socket, straight
 Weight 8,065 g
