1818185000 - 50m M23 Female Socket, 19-Pole Sensor/Actuator Cable

1818185000 - 50m M23 Female Socket, 19-Pole Sensor/Actuator Cable

SKU: SKU: 1818185000

Select a Variant:
  • 1818185000 - 50m M23 Female Socket, 19-Pole Sensor/Actuator Cable
Qty:
Regular price Now $224.53   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $224.53 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

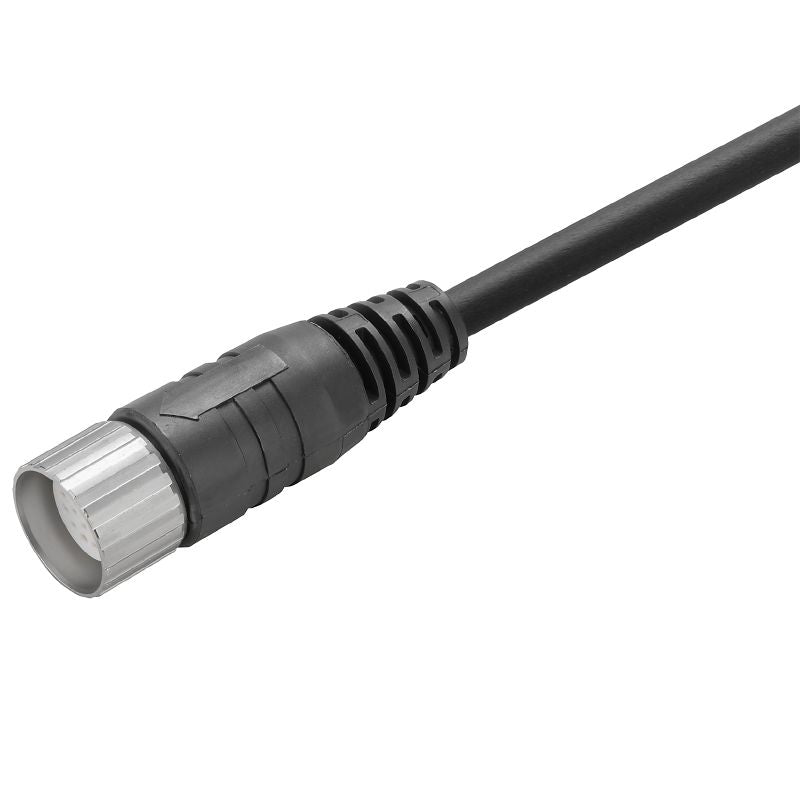

Introducing our sensor/actuator series component, designed for robust performance and adaptability This unit features a 19-pole M23 configuration on one end, while the opposite end comes without a connector, making it versatile for various applications Measuring a generous 50 meters in length, this straight female socket is crafted from durable polyurethane (PUR) and is free from shielding and LED elements.

Fully compliant with RoHS standards, it meets essential safety regulations, ensuring reliability in your projects.

Features and Benefits:

    •No halogen.

    •Cable is suitable for cable carriers.

    •Temperature range for moving: -25...80 °C.

    •Temperature range for stationary: -50...80 °C.

    •Bending cycles: 2 million.

    •Connection side with M23 inner thread.

    •Plugging cycles: ≥ 50.

    •Insulation resistance: 10^12 Ω.

Specifications:

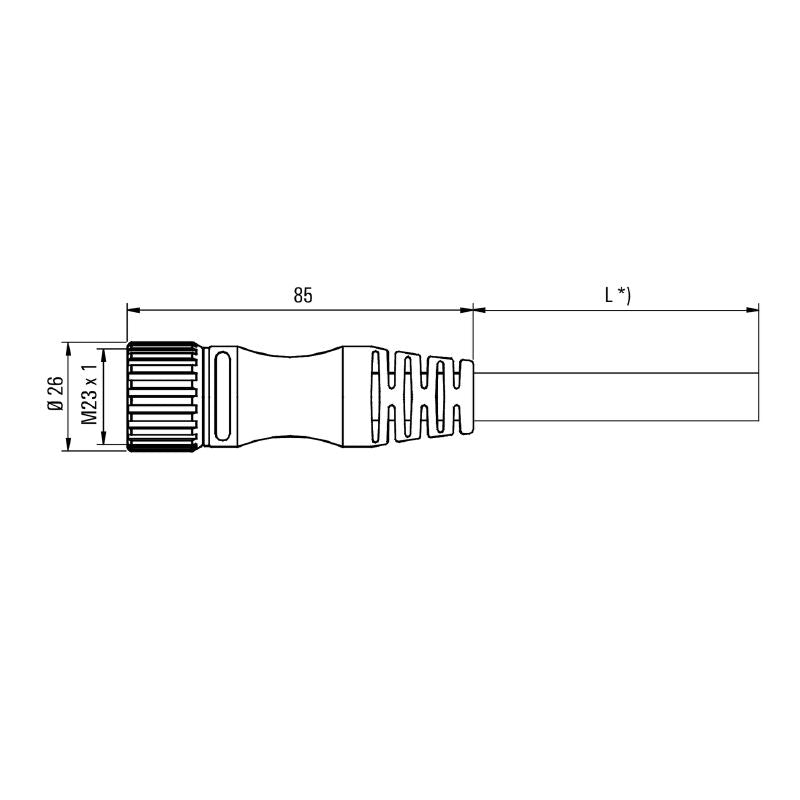

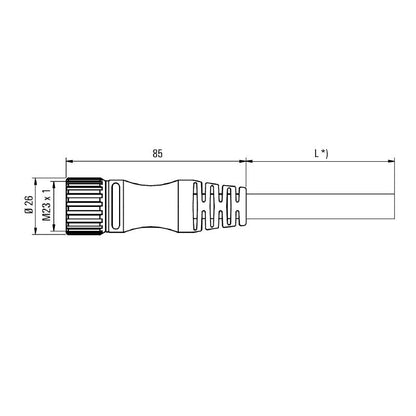

 Cable length 50 m

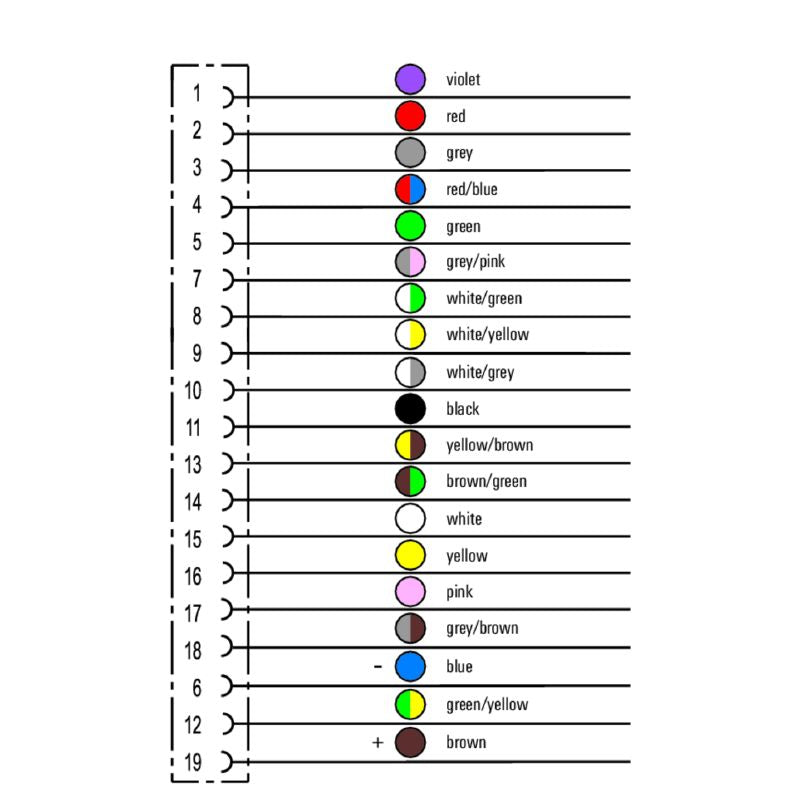

 Number of poles 19
 Outside diameter 9.1 mm ± 0.3 mm
 Sheath material PUR
 Nominal current 8 A
 Nominal voltage 120 V
 Protection degree IP67
 Threaded ring material Diecast zinc
 Tightening torque M23: 2.5 Nm
 Contact surface Gold-plated
 Insulation TPM
