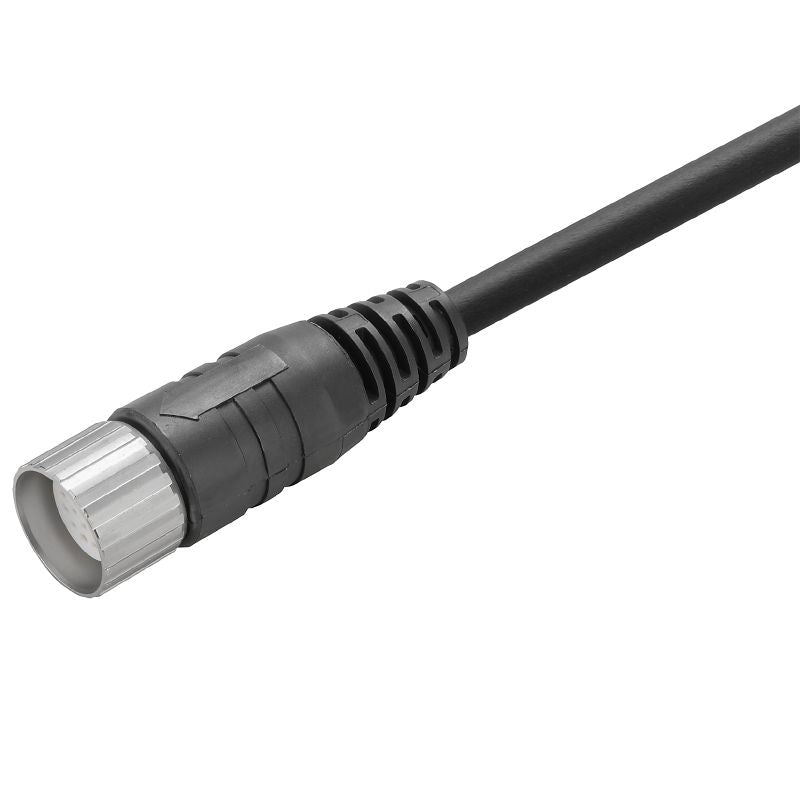

1818183500 - 35m M23 19-Pole Unshielded Sensor/Actuator Cable

1818183500 - 35m M23 19-Pole Unshielded Sensor/Actuator Cable

SKU: SKU: 1818183500

Select a Variant:
  • 1818183500 - 35m M23 19-Pole Unshielded Sensor/Actuator Cable
Qty:
Regular price Now $170.73   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $170.73 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover this innovative sensor and actuator component, featuring a unique design with one end that does not include a connector, complemented by an M23 interface It is equipped with 19 poles and a straight female socket for versatile applications This unshielded unit is crafted from durable PUR material and is not halogen-free, making it a reliable choice for various settings.

Features and Benefits:

    •Compliant with RoHS standards.

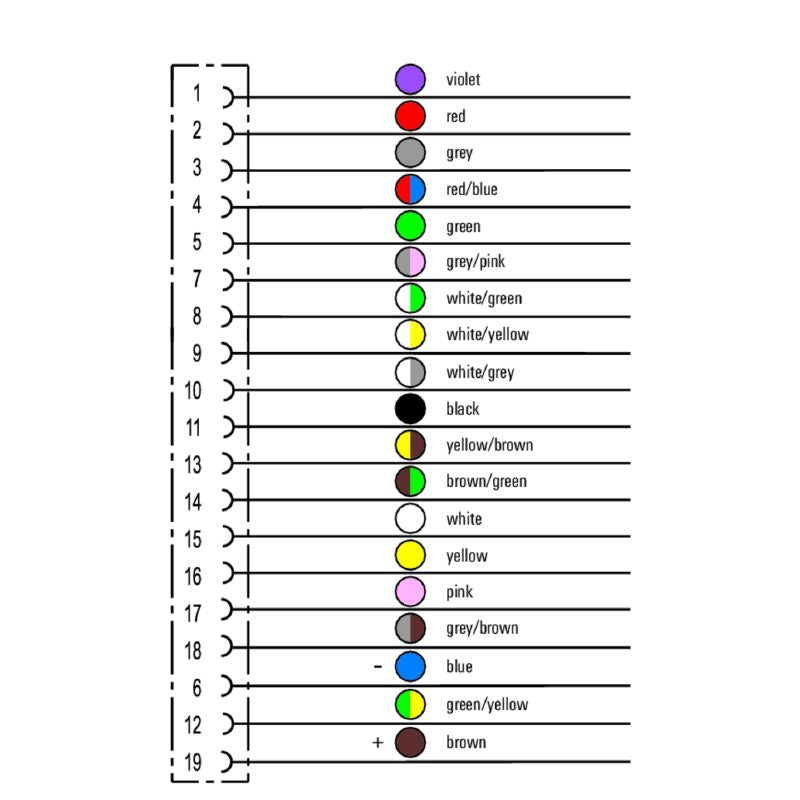

    •Available in a range of colors including violet, red, black, green/yellow, yellow/brown, brown/green, and others.

    •Suitable for cable carriers.

    •Offers a minimum bending radius of 10 times the cable diameter.

    •Nominal current rating of 8A at a nominal voltage of 120V.

    •Plugging cycles rated to ≥ 50.

Specifications:

 Cable Length 35m
 Number of Poles 19
 Sheath Material PUR
 Outside Diameter 9.1 mm ± 0.3 mm
 Insulation Resistance 10^12 Ω
 Protection Degree IP67
 Temperature Range (Moving) -25...80 °C
 Temperature Range (Stationary) -50...80 °C
 Threaded Ring Material Diecast zinc
 Connection Side Version M23, Socket, Inner thread, straight
 Weight 3,754.08g
 Certificates E486077
