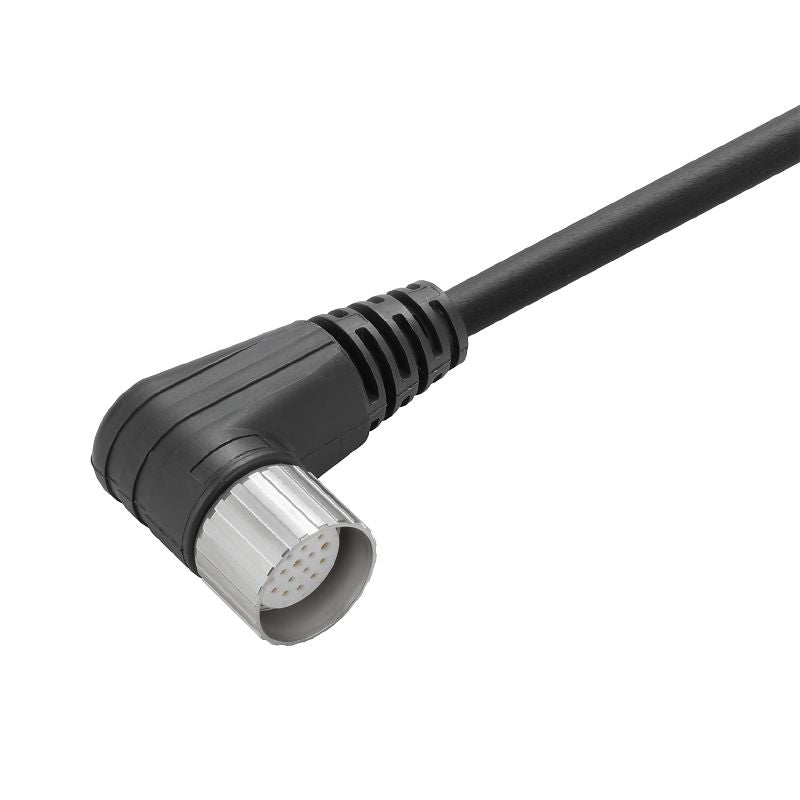

1818142500 - M23 25m Unshielded Sensor/Actuator Line, 19-Pole Angled Socket

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our innovative sensor/actuator product designed for versatility and performance This model features an unconnected end and an M23 connector with 19 poles, providing reliable connectivity The cable measures an impressive 25 meters in length and is equipped with an angled socket for flexible installation Crafted from PUR material, the sheath is halogen-free to ensure safety and environmental compliance.

Please note that this product is unshielded and does not include an LED indicator, making it a straightforward choice for your needs.

Features and Benefits:

•UL File Number: E486077.

•RoHS compliant.

•Bending cycles: 2 million.

•Cable length: 25 m.

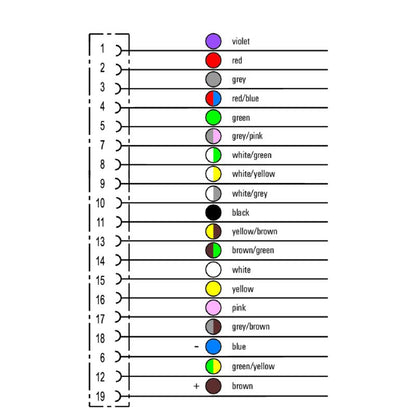

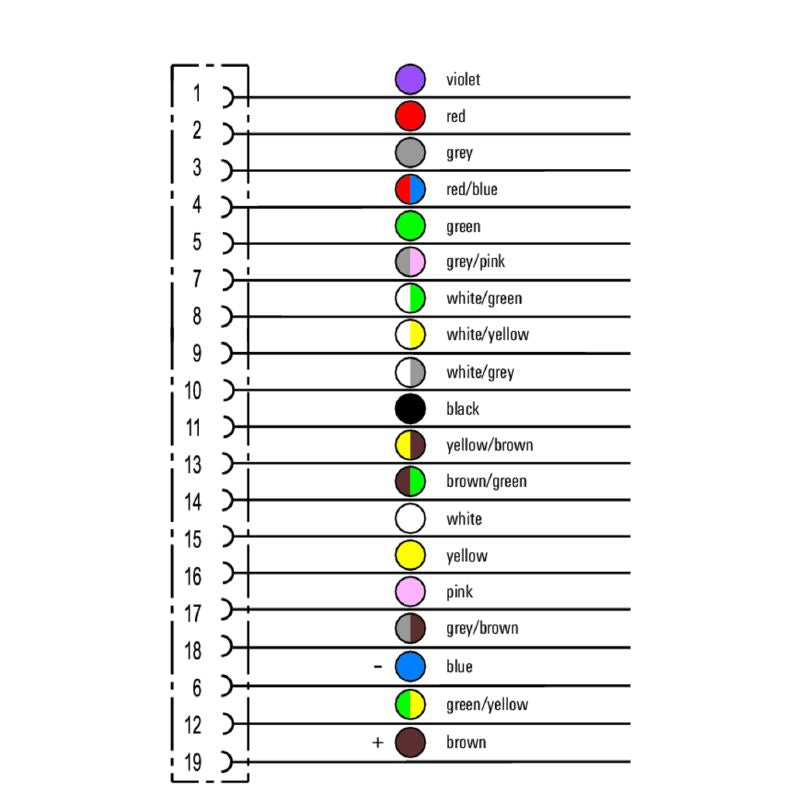

•Color coding includes violet, red, black, green/yellow, yellow/brown, brown/green, white, yellow, pink, grey/brown, brown, grey, red/blue, green, blue, grey/pink, white/green, white/yellow, white/grey.

•Outer cladding in accordance with UL AWM style.

•Outside diameter: 9.1 mm ± 0.3 mm.

•Temperature range for moving: -25 to +80 °C.

•Temperature range for stationary: -50 to +80 °C.

•Nominal current: 8 A.

•Nominal voltage: 120 V.

•Protection degree: IP67.

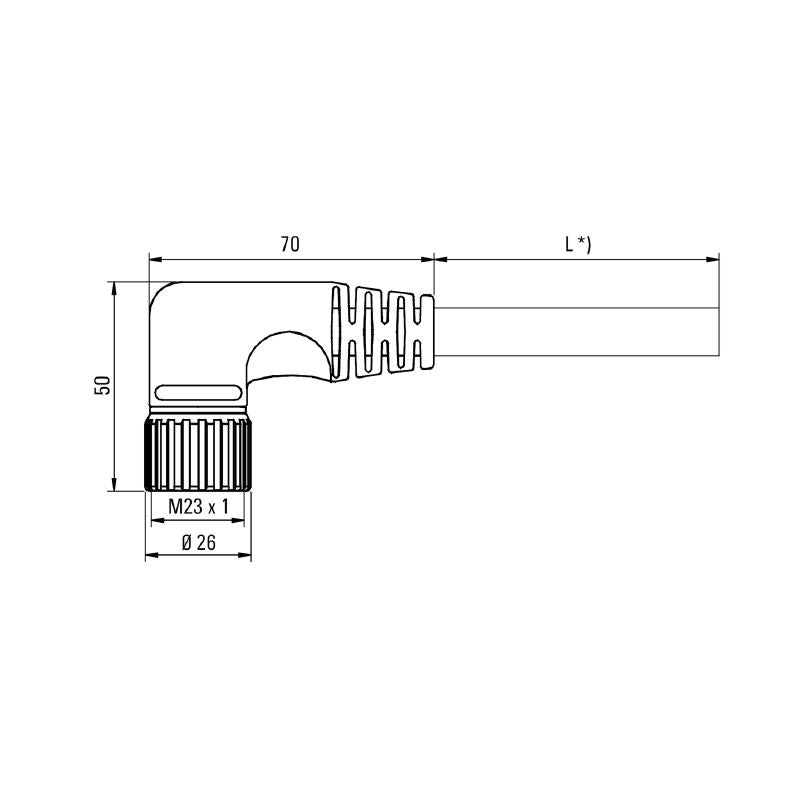

•Connection side: M23, Socket, Inner thread, angled.

Specifications:
