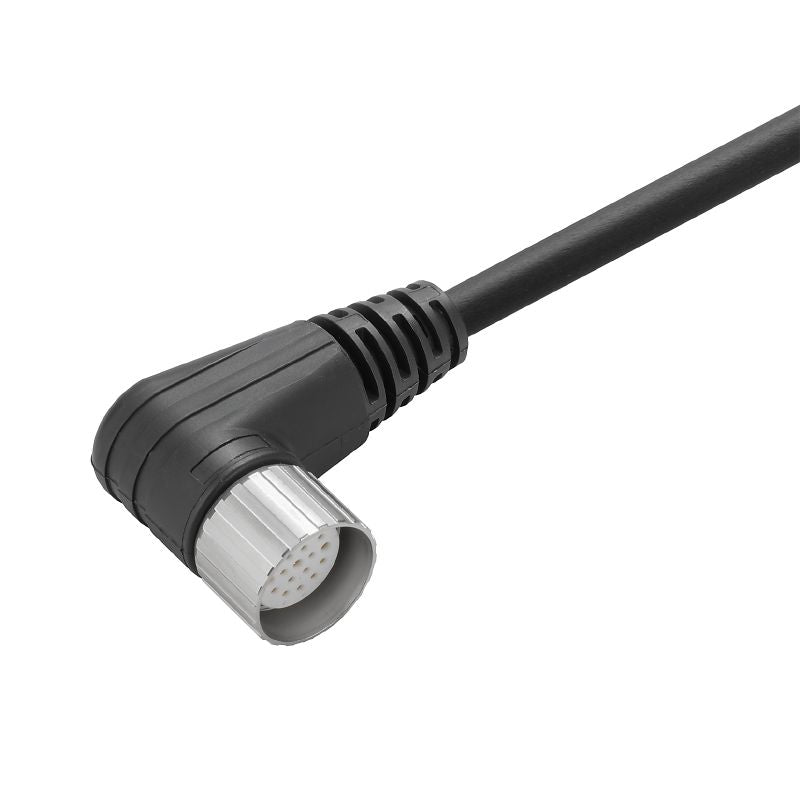

1818140100 - 1m M23 Sensor/Actuator Cable with 19 Poles

1818140100 - 1m M23 Sensor/Actuator Cable with 19 Poles

SKU: SKU: 1818140100

Select a Variant:
  • 1818140100 - 1m M23 Sensor/Actuator Cable with 19 Poles
Qty:
Regular price Now $70.30   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $70.30 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

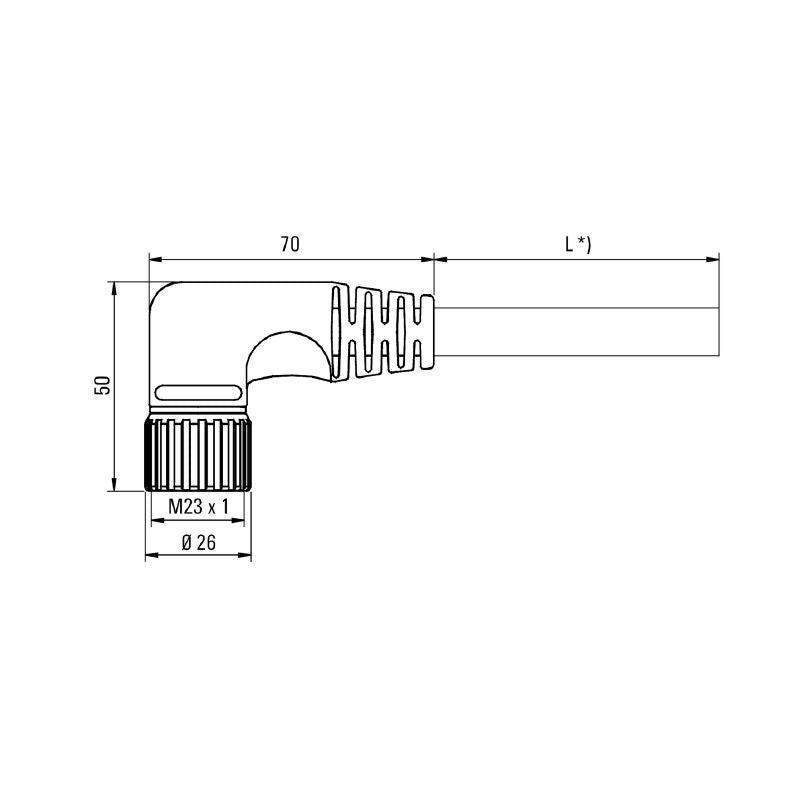

Introducing this advanced sensor/actuator component designed for versatile applications Featuring an M23 configuration with 19 poles, this 1-meter long cable terminates at an angled socket for optimal positioning It is crafted without shielding and lacks an LED indicator, making it straightforward for straightforward installations The durable sheath is constructed from halogen-free PUR material, ensuring safety and reliability in various environments.

Features and Benefits:

    •PUR sheath material.

    •Environmentally compliant with RoHS and REACH standards.

    •Gold-plated contact surface.

    •Suitable for cable carriers.

Specifications:

 Bending cycles 2 Mio
 Bending radius, min., moving 10 x cable diameter
 Cable length 1 m
 Number of poles 19
 Outer cladding in accordance with UL AWM style 21198 (80 °C / 300 V)
 Outside diameter 9.1 mm ± 0.3 mm
 Sheath material PUR
 Temperature range, moving -25...80 °C
 Temperature range, stationary -50...80 °C
 Nominal current 8 A
 Nominal voltage 120 V
 Protection degree IP67
 Threaded ring material Diecast zinc
 Tightening torque M23: 2.5 Nm
 Insulation resistance 10^12 Ω
