1812870000 - IP67 RoHS Compliant Connector for 4-5.1mm Cables

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

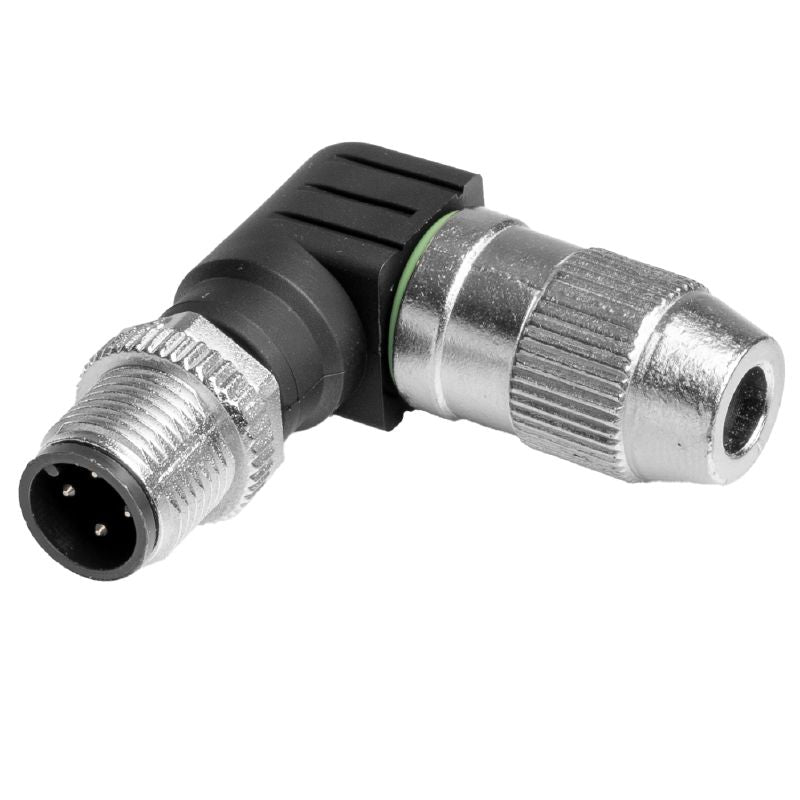

Introducing the SAISWI-P-4A-4/51-M12 field attachable connector, engineered to meet RoHS standards Compatible with cables ranging from 4 mm to 51 mm in diameter, this A-coded connector is suitable for conductors with cross-sections between 025 mm² and 05 mm² Its tinned contact surface and robust CuZn metal housing ensure longevity and dependable performance With a nominal current rating of 4 A and a voltage of 32 V, this connector operates efficiently across a temperature span of -25 to +85 °C.

Built for durability, it supports a minimum of 50 plugging cycles and boasts an IP67 rating, offering complete dust protection and withstands temporary water immersion.

Features and Benefits:

•RoHS compliant without exemption.

•Rated for at least 50 plugging cycles.

•IP67 protection degree for dust and water resistance.

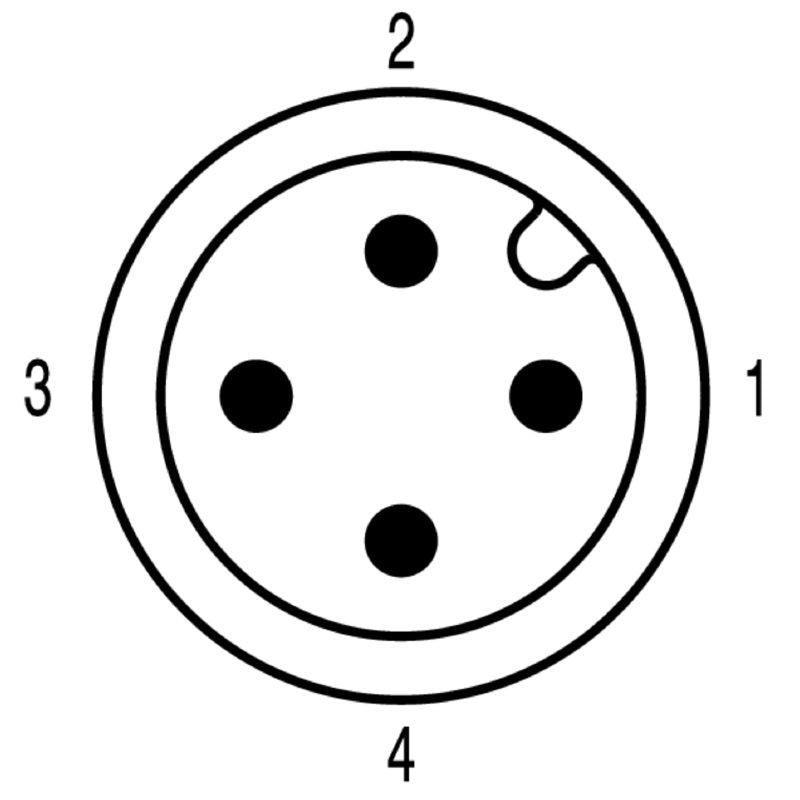

•A-coded connector design.

•Metal housing material for durability.

Specifications:
