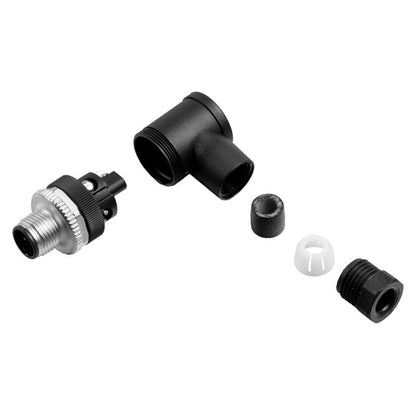

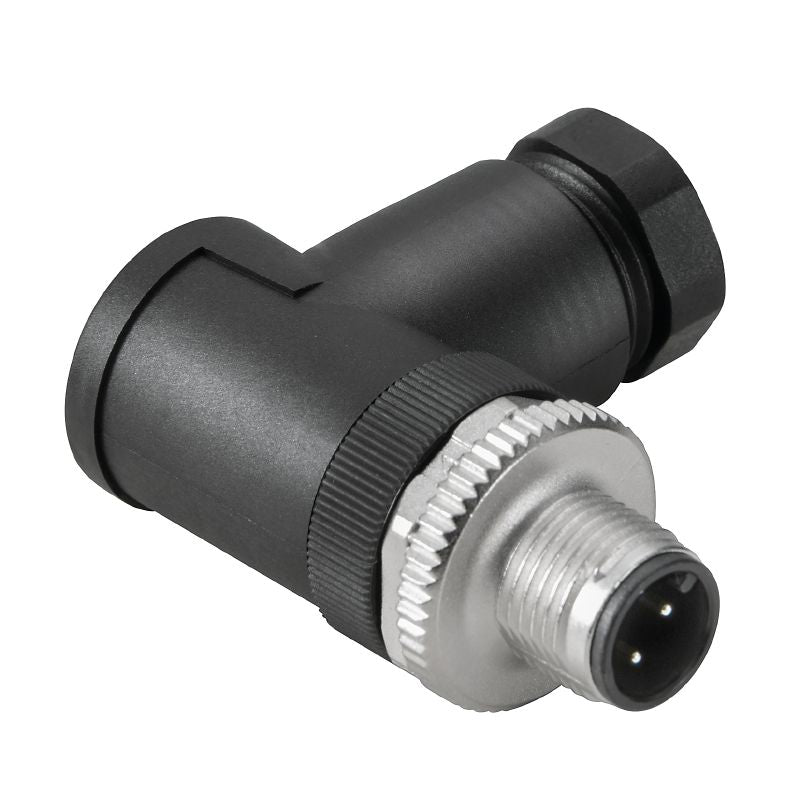

1807370000 - M12 Field Attachable Connector, IP67, 6-8mm Cable Compatibility

Description:

Introducing the SAISWS-P-5A-6/8-M12 attachable field connector, a reliable choice that adheres to a variety of stringent standards and regulations, including RoHS compliance with an exemption (6c) Weighing in at just 23656 grams, this connector accommodates a cable diameter range of 6 mm to 8 mm Designed for versatility, it supports conductor cross-sections from 014 mm² to a maximum of 075 mm² The male contact is crafted from CuSnZn and features gold plating for the 8-pole configuration, ensuring excellent conductivity.

The connector handles a nominal current of 4 A and a voltage of 60 V, with a sturdy ability to endure at least 50 insertion cycles Suitable for various environments, it carries a pollution severity rating of level 3 and is rated IP67 for outstanding dust and water resistance Additionally, the robust housing can withstand temperatures ranging from -40 °C to +85 °C, making it a durable choice for any application.

Features and Benefits:

•RoHS compliant with exemption.

•M12 connection type.

•Screw connection for secure attachment.

•IP67 protection for dust and water resistance.

•Can handle a wide temperature range.

•Designed for a long lifespan with ≥ 50 plugging cycles.

Specifications:
