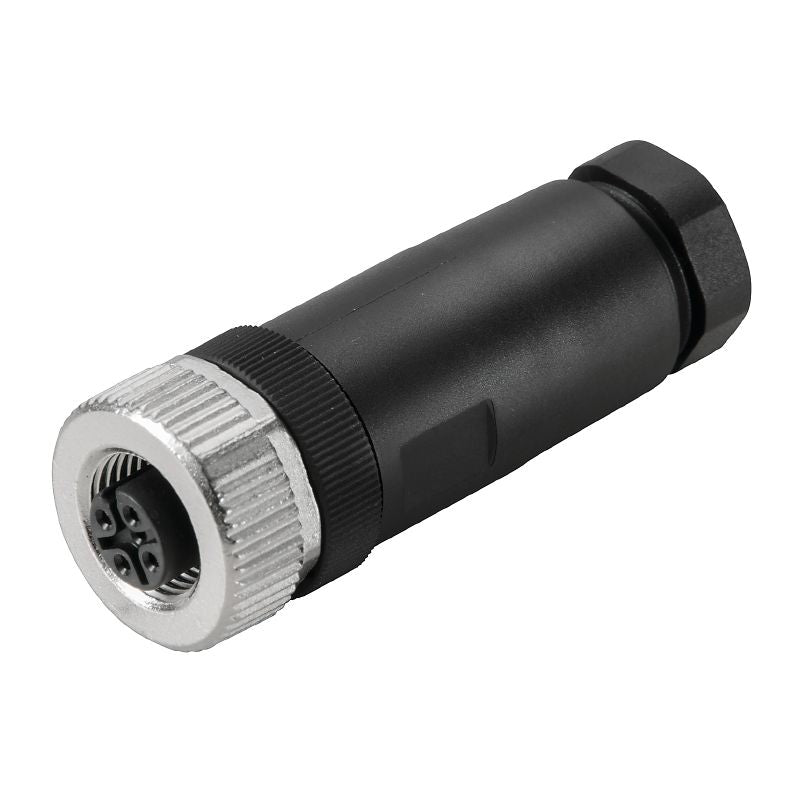

1807230000 - M12 Field Attachable Connector, 4 Poles, IP67, 6-8mm

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAIBGS-P-4A-6/8-M12, a versatile field attachable connector engineered for M12 applications This connector is compliant with RoHS standards and proudly holds a UL certification, identified by certificate number E307231 It is designed to handle cable diameters between 6 mm and 8 mm, accommodating conductor cross-sections from 014 mm² to 075 mm² Featuring a female contact design, the connector is crafted from durable PA housing and boasts an impressive insulation resistance of 10^8 Ω.

It supports a nominal current of 4 A and operates at a nominal voltage of 250 V With 4 poles and the capability to endure a minimum of 50 plugging cycles, this product is reliable and robust Built to perform in challenging conditions, it is rated for pollution severity class 3 and comes with an IP67 protection rating, ensuring its usability in harsh environments The housing withstands temperatures between -40°C and +85°C.

Additionally, it employs a screw connection mechanism with a threaded ring constructed from diecast zinc, enhancing its durability and stability.

Features and Benefits:

•RoHS compliant with exemptions.

•Compatible with M12 connections.

•IP67 protection against dust and water.

•Suitable for harsh environments.

Specifications:
