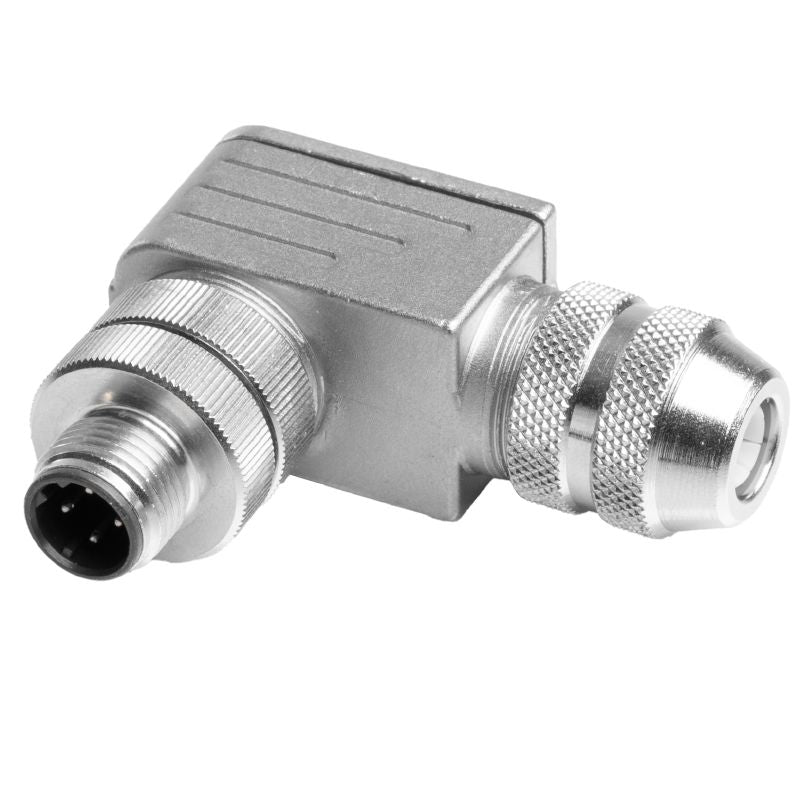

1803930001 - M12 D-Coded Connector, IP67, 6-8mm Cable Diameter

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Ensure reliable connectivity with the M12 Field attachable connector, ideal for a variety of applications This versatile connector accommodates cable diameters between 6 mm and 8 mm and features a D-coded configuration with a gold-plated contact surface, guaranteeing excellent conductivity It is engineered to handle conductor cross-sections from 025 mm² to 05 mm², supporting a nominal current of 4 A and a nominal voltage of 250 V.

With an impressive IP67 rating for water and dust resistance, this connector is built to endure temperatures from -40 to +85 °C It is designed for longevity, allowing for a minimum of 100 plugging cycles and incorporates a tension-clamp connection for a strong and secure fit.

Features and Benefits:

•IP67 protection rating for dust and water resistance.

•Temperature range of -40 to +85 °C for versatile usage conditions.

•Gold-plated contacts enhance longevity and conductivity.

•Tension-clamp connection for secure and reliable linking.

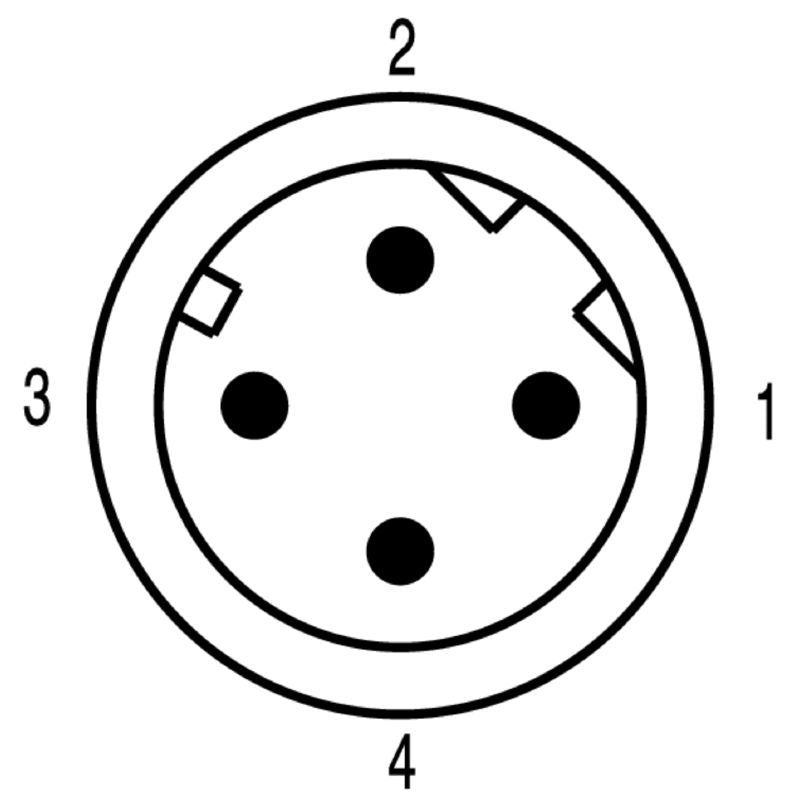

•D-coded configuration prevents incorrect connections.

Specifications:
