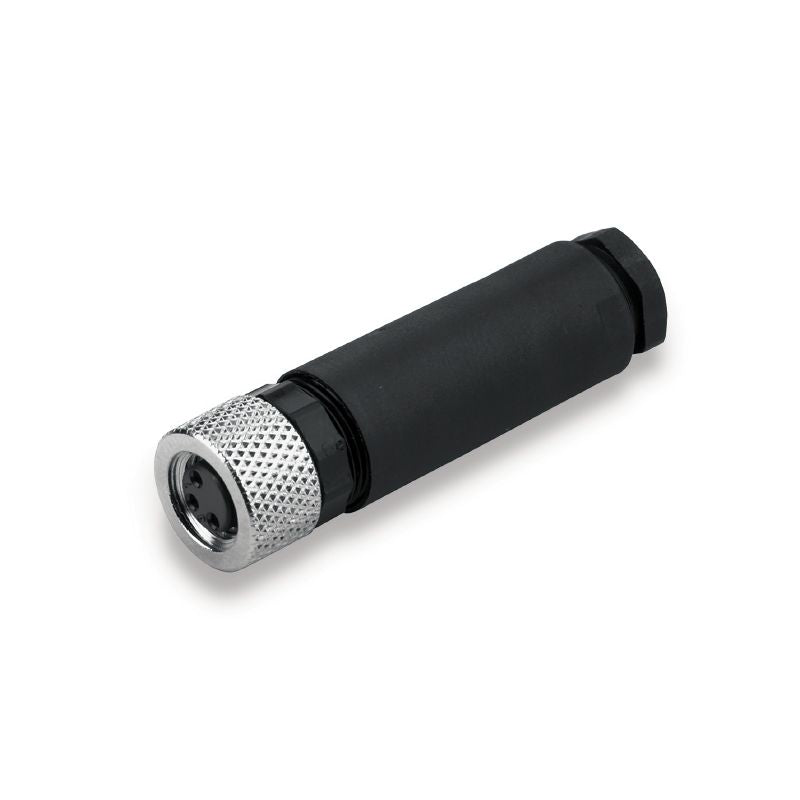

1803880000 - M8 Field Attachable Connector, 4 Poles, IP67 Rated

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile M8 field attachable connector, designed to meet strict RoHS standards and packaged individually for your convenience This UL-certified component, bearing the certification number E307231, accommodates cables with a maximum diameter of 5 mm and a minimum of 35 mm Featuring four poles, it safely manages a nominal current of 4 A at a voltage of 60 V With an impressive insulation resistance of 10^8 Ω and a robust IP67 protection rating, this connector is perfectly suited for demanding environments where reliability and safety are paramount.

Features and Benefits:

•Gold-plated contact surface.

•Female gender of contact.

•Housing material made of PA.

•Screw connection type.

•Temperature range for housing from -40 to +85 °C.

•Minimum of 50 plugging cycles.

•Pollution severity level of 3.

Specifications:
