1752110004 - 12x3.2mm SlimFix Cable Markers for 1.2-1.6mm Wires (Pack of 800)

SKU: SKU: 1752110004 Download PDF

Select a Variant:

1752110004 - 12x3.2mm SlimFix Cable Markers for 1.2-1.6mm Wires (Pack of 800)

SET THE QTY:

Now $80.39 Web pricing policy

~~BEFORE $0.00~~ Now $80.39 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

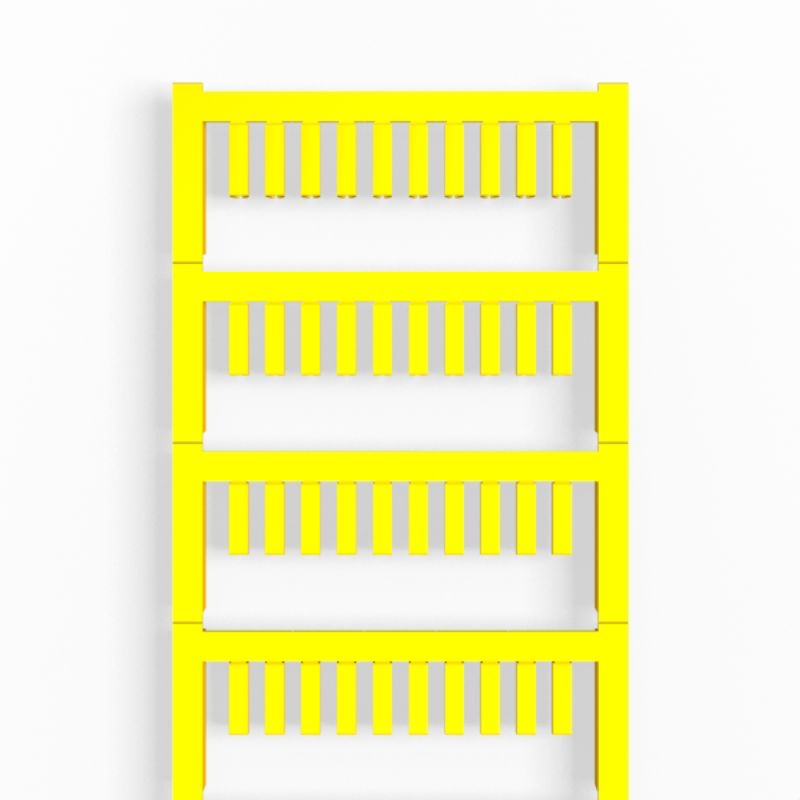

Introducing the SlimFix conductor and cable marker, expertly crafted for wire diameters between 12 mm and 16 mm Each marker measures 12 x 32 mm and is designed with your environmental concerns in mind, as it meets RoHS compliance standards Weighing in at just 0159 grams, this product comes in a convenient MultiCard format that contains 800 pieces Its impressive temperature tolerance, ranging from -50 to 120 degrees Celsius, allows for adaptability across various settings and applications.

Features and Benefits:

•Made from polyamide 66.

•Marked with a neutral printing type.

•UL 94 flammability rating of V-0.

•No halogen present.

•Compatible with PRINTJET CONNECT printers.

•Recommended for use in the transportation and machinery industries.

Specifications:

Depth	3.2 mm
Height	12 mm
Width	3.2 mm
Operating temperature range	-50...120 °C
Conductor cross-section (max)	0.5 mm²
Conductor cross-section (min)	0.25 mm²
Conductor O.D. (max)	1.6 mm
Conductor O.D. (min)	1.2 mm
Cross-section for connected wire	0.25 - 0.5 mm²
RoHS Compliance Status	Compliant without exemption
Product Carbon Footprint	0.002 kg CO2 eq.
Number of markers per packaging unit	MultiCard
ETIM 6.0	EC001530
ECLASS 9.0	27-40-04-01
