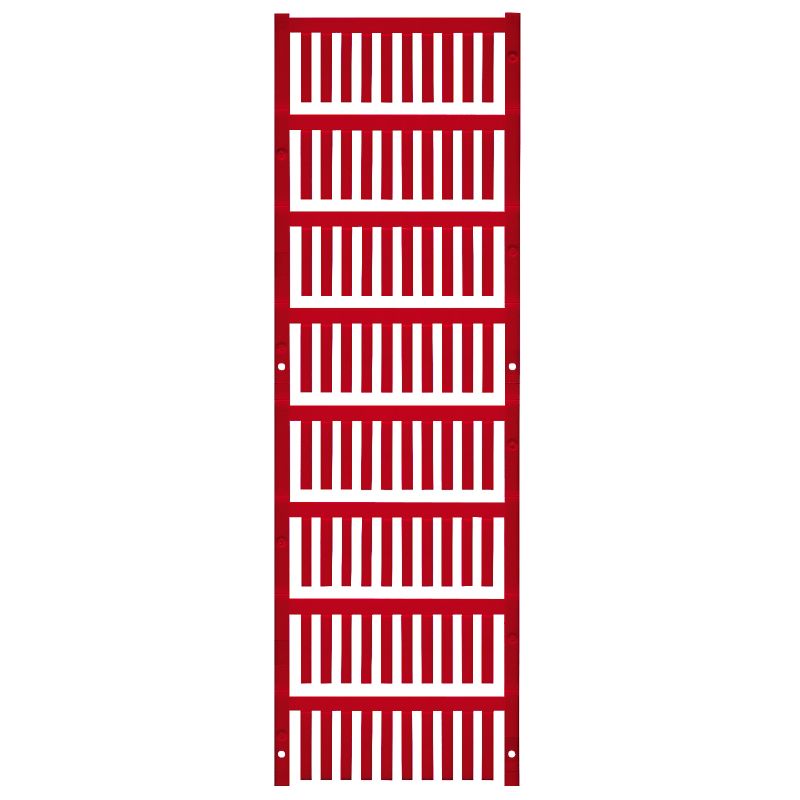

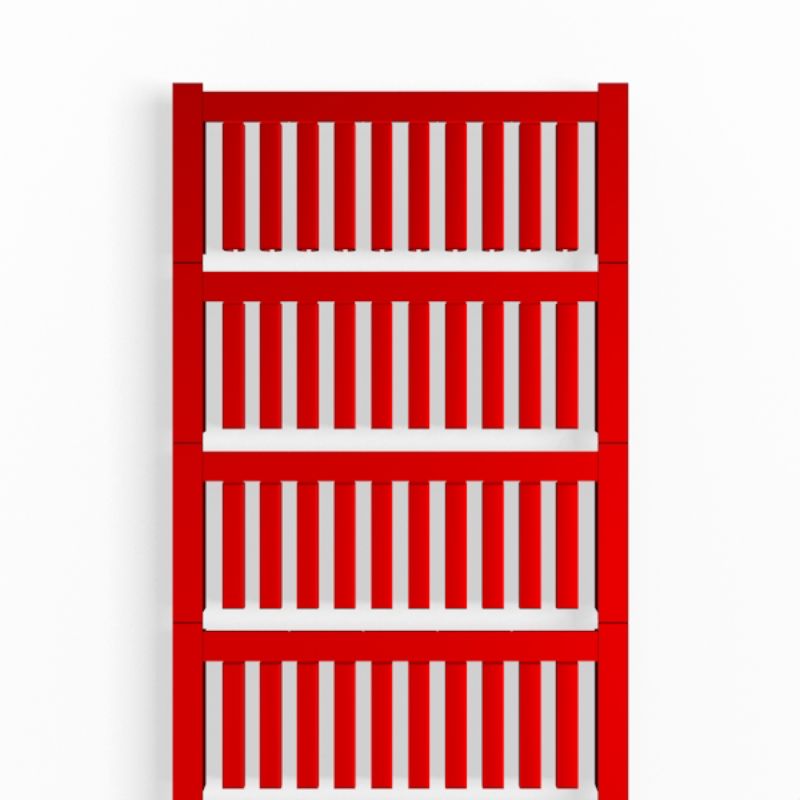

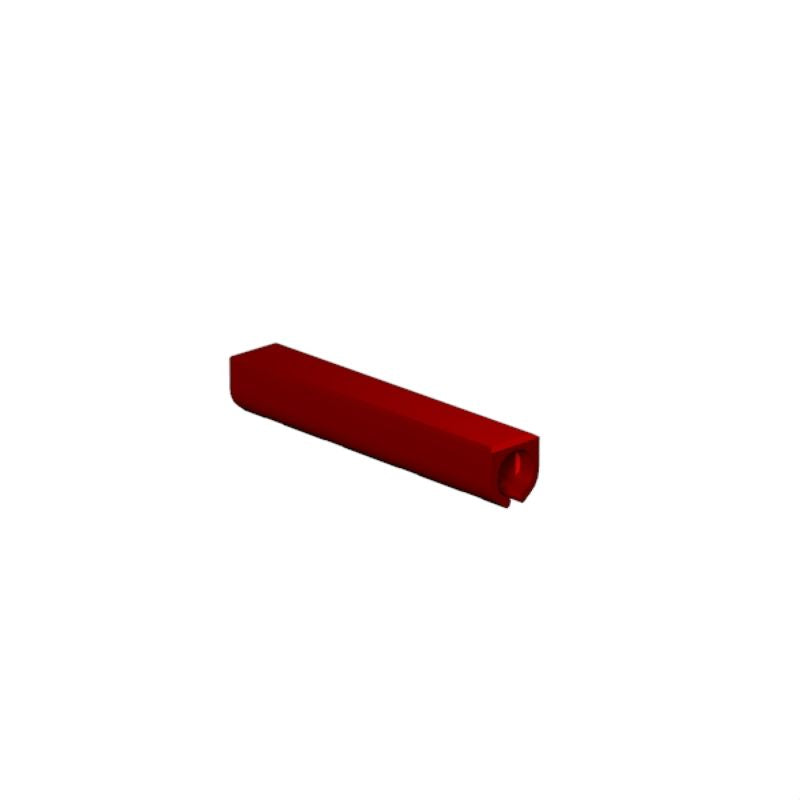

1918670000 - Red Polyamide Cable Markers 21 x 3.6 mm, RoHS Compliant (Pack of 400)

1918670000 - Red Polyamide Cable Markers 21 x 3.6 mm, RoHS Compliant (Pack of 400)

SKU: SKU: 1918670000 Download PDF

Variant:
  • 1918670000 - Red Polyamide Cable Markers 21 x 3.6 mm, RoHS Compliant (Pack of 400)
Regular price Now $65.28
Regular price BEFORE   $0.00 Sale price Now $65.28
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SF 2/21 MC NE RT V2, a set of slim conductor and cable markers tailored for precision and durability These markers have a width ranging from 22 to 29 mm and measure 21 x 36 mm Offered in a vibrant red color, each marker weighs just 0325 grams and is crafted from high-quality polyamide 66 This product meets RoHS standards, ensuring safety with no substances of very high concern (SVHC) present above 0.

1 wt% Designed to endure temperature extremes, it operates effectively within a range of -40 to 100 °C, making it a reliable choice for various applications.

Features and Benefits:

    •Compliant without exemption under RoHS.

    •No halogen present.

    •Suitable for use in transportation and machinery.

    •Compatible with PRINTJET CONNECT.

    •Offered in MultiCard form with single conductor and cable markers per combination.

    •Transportation.

    •Machinery.

Specifications:

 Depth 3.65 mm
 Height 21 mm
 Width 3.6 mm
 Operating temperature range -40...100 °C
 Conductor cross-section, max. 1.5 mm²
 Conductor cross-section, min. 0.75 mm²
 Conductor O.D. 2.2 - 2.9 mm
 Size of labelling field 21 x 3.6 mm
 UL 94 flammability rating V-2
 Product Carbon Footprint 0.002 kg CO2 eq.
