1805830000 - SlimFix Polyamide Marker Clip for 3-5 mm Conductors (Pack of 90)

1805830000 - SlimFix Polyamide Marker Clip for 3-5 mm Conductors (Pack of 90)

SKU: SKU: 1805830000 Download PDF

Variant:
  • 1805830000 - SlimFix Polyamide Marker Clip for 3-5 mm Conductors (Pack of 90)
Regular price Now $18.33
Regular price BEFORE   $0.00 Sale price Now $18.33
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

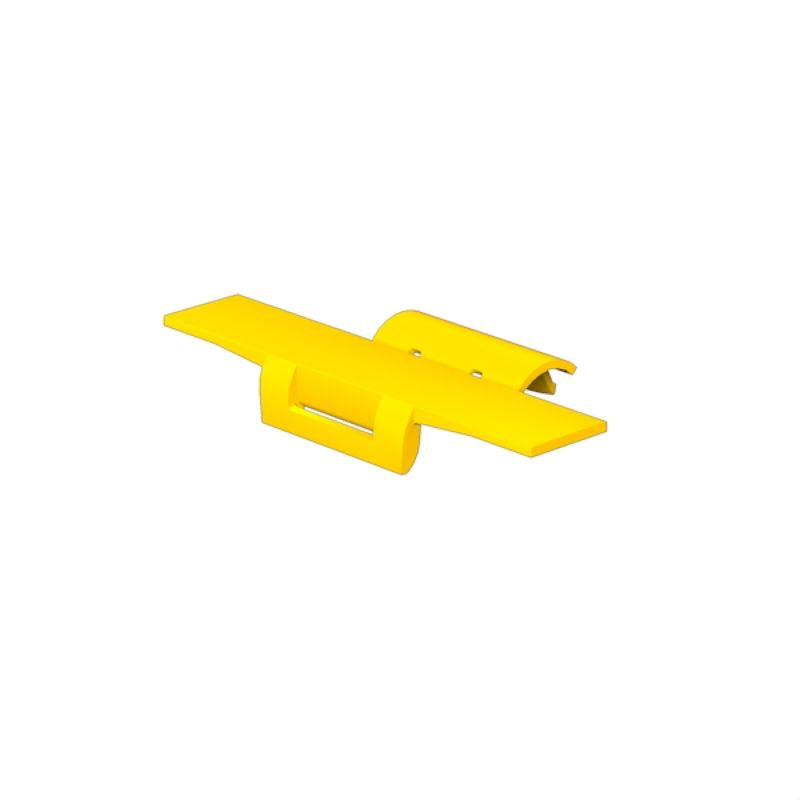

Introducing the SlimFix Clip, an essential tool for marking conductors and cables This clip is compatible with sizes ranging from 3 to 5 mm and measures 30 mm by 58 mm Crafted from durable polyamide 66, it meets RoHS compliance standards without exemptions Each MultiCard includes a single marker, ensuring you have exactly what you need Environmentally conscious, this product boasts a minimal carbon footprint of just 0.

006 kg CO2 equivalent from cradle to gate Perfect for organizing and identifying wires with ease!.

Features and Benefits:

    •Constructed from polyamide 66.

    •Compliant with RoHS standards.

    •Compatible with PRINTJET CONNECT printer.

    •Flammability rating of UL 94 V-2.

    •Number of markers per packaging unit is 1 MultiCard.

    •Size of the labelling field is 30 x 5.8 mm.

    •Recommended for use in machinery.

Specifications:

 Depth 7.6 mm
 Height 30 mm
 Width 5.8 mm
 Operating temperature range -40...100 °C
 Conductor cross-section, max 4 mm²
 Conductor cross-section, min 3 mm²
 Conductor O.D. 3 - 5 mm
 Cross-section for connected wire 3 - 4 mm²
 ETIM 6.0 EC001530
 ECLASS 9.0 27-40-04-01
