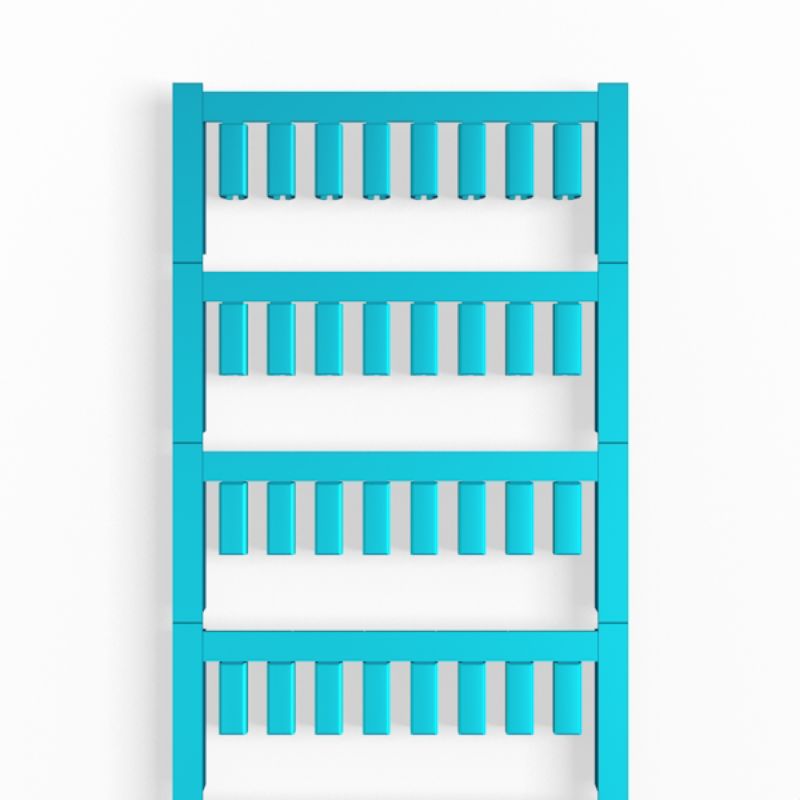

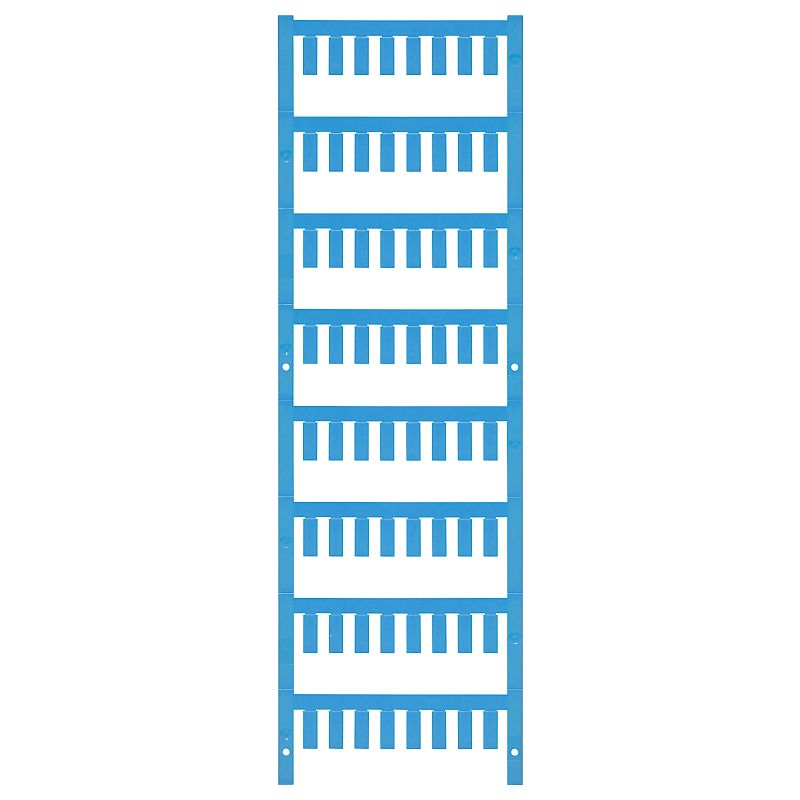

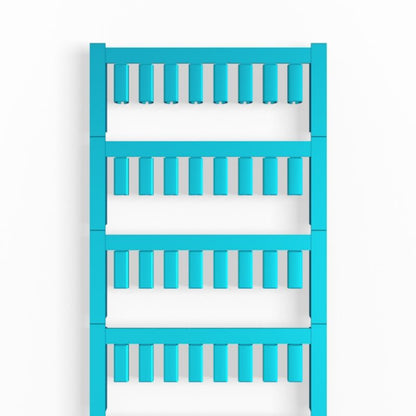

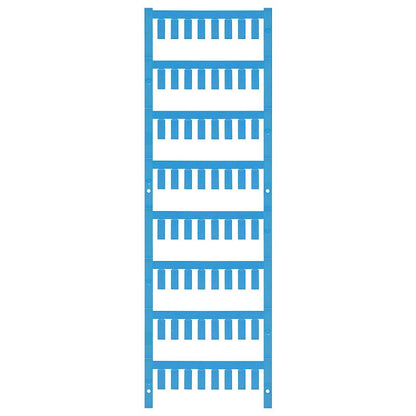

1919550000 - Blue Polyamide Markers for Conductors, 12 x 4.6 mm (Pack of 320)

1919550000 - Blue Polyamide Markers for Conductors, 12 x 4.6 mm (Pack of 320)

SKU: SKU: 1919550000 Download PDF

Variant:
  • 1919550000 - Blue Polyamide Markers for Conductors, 12 x 4.6 mm (Pack of 320)
Regular price Now $52.22
Regular price BEFORE   $0.00 Sale price Now $52.22
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SlimFix conductor and cable markers, specifically designed for precision and compliance With a conductor diameter range of 3 to 37 mm and a label size measuring 12 mm by 46 mm, these markers are perfect for various applications Crafted from high-quality polyamide 66, they are durable and available in a vibrant blue hue These markers comply with RoHS regulations and contain no SVHC substances exceeding 0.

1 wt% They can function efficiently in temperatures ranging from -40 °C to 100 °C Supplied in a convenient MultiCard format, each set includes a marker for both conductor and cable, making them ideal for use in sectors like transportation and machinery.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Can operate in temperatures from -40 to 100 °C.

    •Supplied in MultiCard format with one marker included.

    •Transportation.

    •Machinery.

Specifications:

 Depth 4.8 mm
 Height 12 mm
 Width 4.6 mm
 Operating temperature range -40...100 °C
 Basic material Polyamide 66
 Conductor cross-section, max 2.5 mm²
 Conductor cross-section, min 1.5 mm²
 Conductor O.D. 3 - 3.7 mm
 Cross-section for connected wire 1.5 - 2.5 mm²
 UL 94 flammability rating V-2
 Number of markers per packaging unit 1 MultiCard
