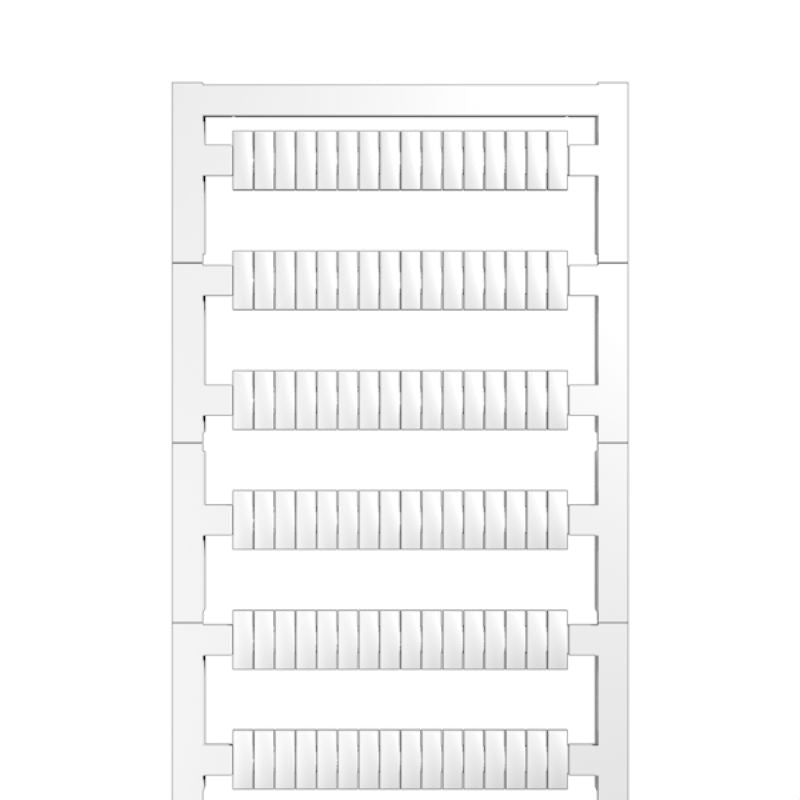

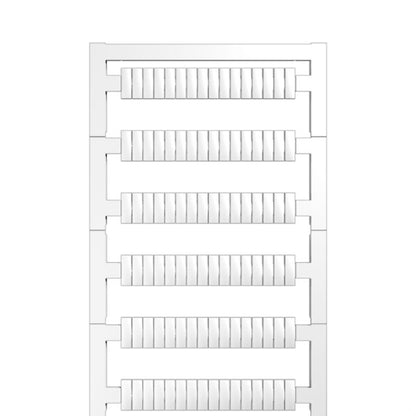

2003760000 - Durable 10mm Polyamide Terminal Marker for PRINTJET CONNECT (Pack of 960)

2003760000 - Durable 10mm Polyamide Terminal Marker for PRINTJET CONNECT (Pack of 960)

SKU: SKU: 2003760000 Download PDF

Variant:
  • 2003760000 - Durable 10mm Polyamide Terminal Marker for PRINTJET CONNECT (Pack of 960)
Regular price Now $88.83
Regular price BEFORE   $0.00 Sale price Now $88.83
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the WS 10/35 PLUS MC NE WS terminal marker, expertly crafted from high-quality polyamide 66 With dimensions of 10 mm in height and 35 mm in width, this marker is both compact and efficient It adheres to strict RoHS standards and operates effectively in a temperature range from -40 to 100 °C Rated V-2 for flammability according to UL 94 guidelines, it ensures safety in diverse conditions Each MultiCard is equipped with a single terminal marker featuring neutrally printed characters, specifically designed for compatibility with PRINTJET CONNECT printers.

Features and Benefits:

    •Compliant with RoHS without exemptions.

    •Cradle to gate product carbon footprint of 0.001 kg CO2eq..

    •Halogen-free.

Specifications:

 Operating temperature range -40...100 °C
 Basic material Polyamide 66
 Height 10 mm
 Width 3.5 mm
 Pitch in mm (P) 3.5 mm
 Number of markers per combination 1 MultiCard = Terminal marker
 UL 94 flammability rating V-2
 ETIM 6.0 EC000761
 ETIM 7.0 EC000761
 ETIM 8.0 EC000761
 ETIM 9.0 EC000761
 ETIM 10.0 EC000761
 ECLASS 9.0 27-14-11-37
 ECLASS 9.1 27-14-11-37
 ECLASS 10.0 27-14-11-37
 ECLASS 11.0 27-28-11-01
 ECLASS 12.0 27-28-11-01
 ECLASS 13.0 27-28-11-01
 ECLASS 14.0 27-28-11-01
 ECLASS 15.0 27-28-11-01
