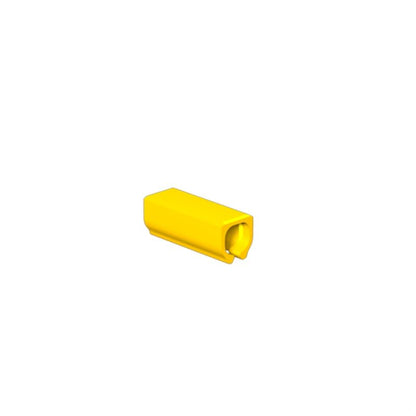

1919520000 - Durable Yellow Cable Marker, 12 x 4.6 mm, -40 to 100 °C (Pack of 320)

1919520000 - Durable Yellow Cable Marker, 12 x 4.6 mm, -40 to 100 °C (Pack of 320)

SKU: SKU: 1919520000 Download PDF

Variant:
  • 1919520000 - Durable Yellow Cable Marker, 12 x 4.6 mm, -40 to 100 °C (Pack of 320)
Regular price Now $54.13
Regular price BEFORE   $0.00 Sale price Now $54.13
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SF 3/12 MC NE GE V2, a reliable solution for marking conductors and cables Designed to accommodate conductor diameters ranging from 3 to 37 mm, this product comes in a vibrant yellow color It features a labeling area measuring 12 x 46 mm, providing ample space for clear identification With compliance to REACH SVHC standards, you can trust that it contains no restricted substances beyond 0.

1 wt% Built to endure a wide temperature range from -40 to 100 °C, it’s ideal for diverse conditions This durable marking solution is constructed from polyamide 66 and is available in packs of 320 items Its carbon footprint is also minimal, at just 0002 kg CO2 equivalent from cradle to gate.

Features and Benefits:

    •Compliant with RoHS standards.

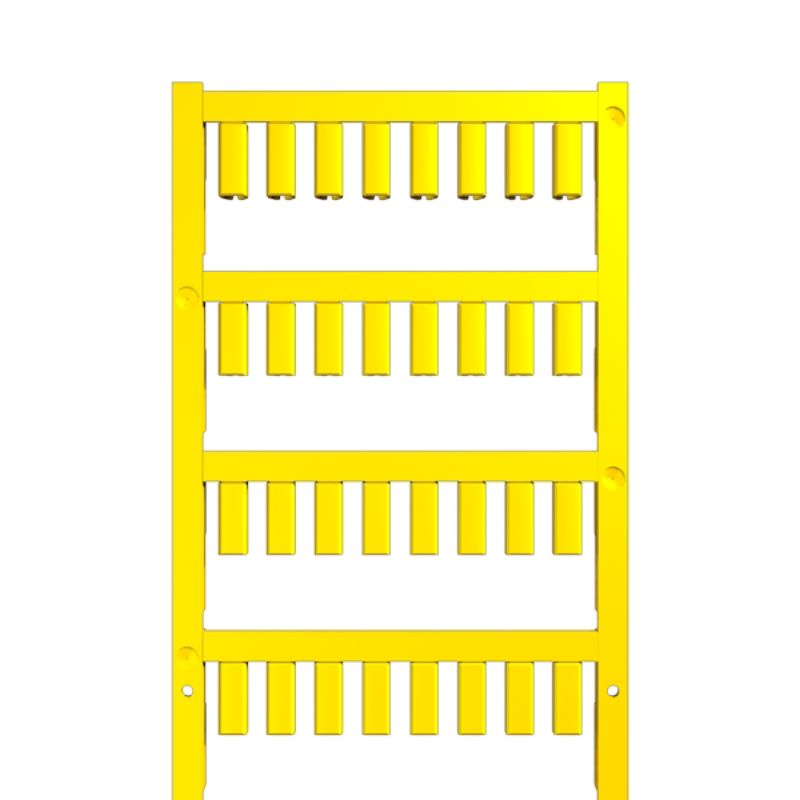

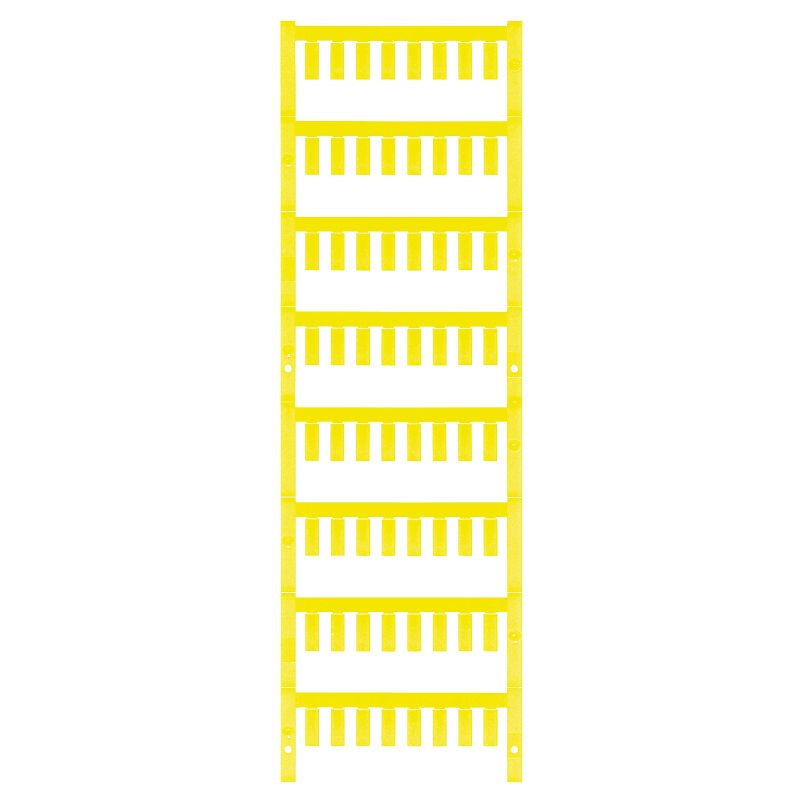

    •Available in MultiCard supply form.

    •No halogen content.

    •Suitable for use in the transportation industry.

    •Compatible with PRINTJET CONNECT printer.

    •Conductor and cable markings.

Specifications:

 Depth 4.8 mm
 Height 12 mm
 Width 4.6 mm
 Operating temperature range -40...100 °C
 Basic material Polyamide 66
 Conductor cross-section, min. 1.5 mm²
 Conductor cross-section, max. 2.5 mm²
 Conductor O.D., min. 3 mm
 Conductor O.D., max. 3.7 mm
 Cross-section for connected wire 1.5 - 2.5 mm²
 UL 94 flammability rating V-2
 Number of markers per combination 1 MultiCard = Conductor and cable markers
 GTIN (EAN) 4032248555819
 Classifications {'ETIM 6.0': 'EC001530', 'ETIM 7.0': 'EC001530', 'ETIM 8.0': 'EC001530', 'ETIM 9.0': 'EC001530', 'ETIM 10.0': 'EC001530', 'ECLASS 9.0': '27-40-04-01', 'ECLASS 9.1': '27-40-04-01', 'ECLASS 10.0': '27-40-04-01', 'ECLASS 11.0': '27-28-11-02', 'ECLASS 12.0': '27-28-11-02', 'ECLASS 13.0': '27-28-11-02', 'ECLASS 14.0': '27-28-11-02', 'ECLASS 15.0': '27-28-11-02'}
