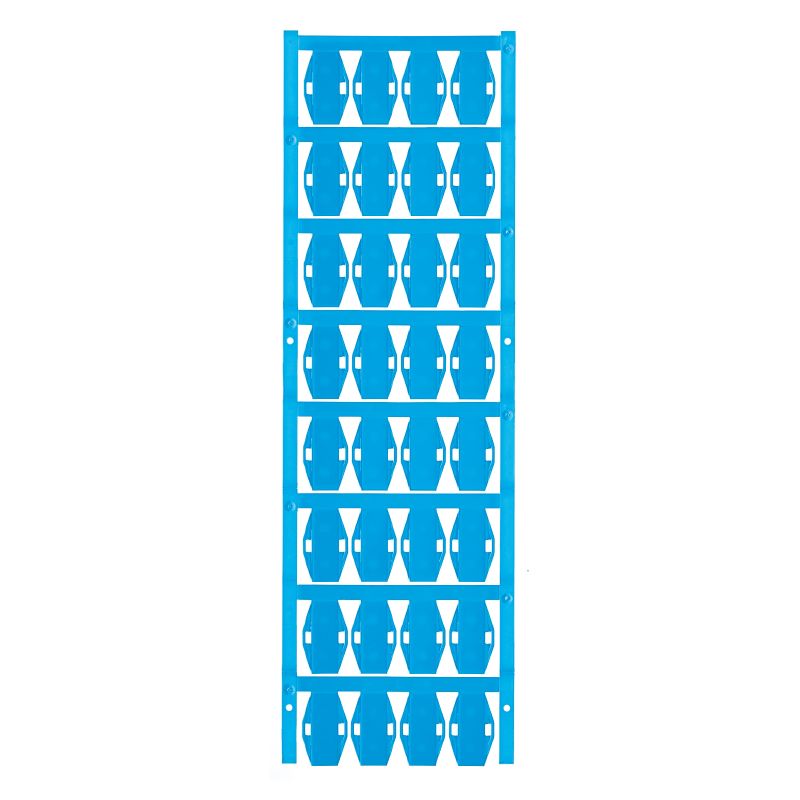

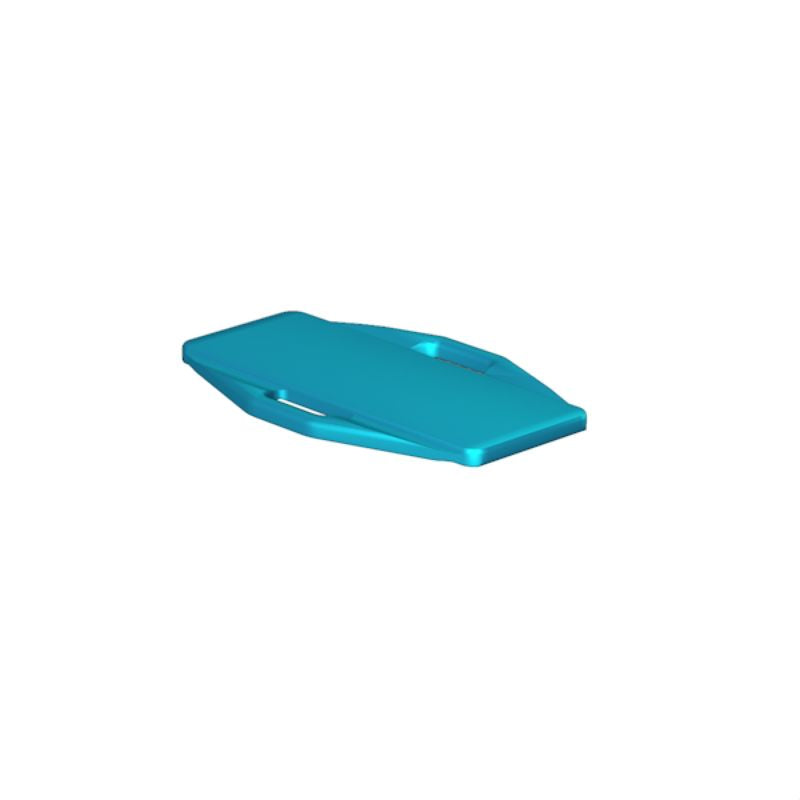

1852500000 - Blue Cable Markers 24x15mm, 7-40mm, RoHS Compliant (Pack of 160)

1852500000 - Blue Cable Markers 24x15mm, 7-40mm, RoHS Compliant (Pack of 160)

SKU: SKU: 1852500000 Download PDF

Variant:
  • 1852500000 - Blue Cable Markers 24x15mm, 7-40mm, RoHS Compliant (Pack of 160)
Regular price Now $88.02
Regular price BEFORE   $0.00 Sale price Now $88.02
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SlimFix X series, featuring conductor and cable markers designed for versatility in various sectors such as transportation and machinery Each marker comes in a practical size of 24 x 15 mm, perfect for labeling with clarity Available in a striking blue color, these markers adhere to RoHS standards, ensuring a reliable and compliant choice for your marking needs Choose SlimFix X for efficient and effective identification solutions.

Features and Benefits:

    •Operating temperature range from -40 to 100 °C.

    •Compatible with PRINTJET CONNECT printers.

    •MultiCard supply form with one marker per combination.

    •UL 94 flammability rating of V-2.

    •Constructed from Polyamide 66.

    •No halogen content.

    •Transportation.

    •Machinery.

Specifications:

 Depth 0.8 mm
 Height 24 mm
 Width 15 mm
 Conductor cross-section, min. 16 mm²
 Conductor cross-section, max. 500 mm²
 Conductor O.D. min. 7 mm
 Conductor O.D. max. 40 mm
 Size of labelling field 23.9 x 9 mm
 Product Carbon Footprint 0.005 kg CO2 eq.
 GTIN (EAN) 4032248385478
 Approved for RoHS Compliant without exemption
 REACH SVHC No SVHC above 0.1 wt%
