Home / MULTICARD / 1919220000 - Blue Conductor Markers 12 x 3.2 mm, 1.2-1.6 mm Diameter (Pack of 400)
1 2

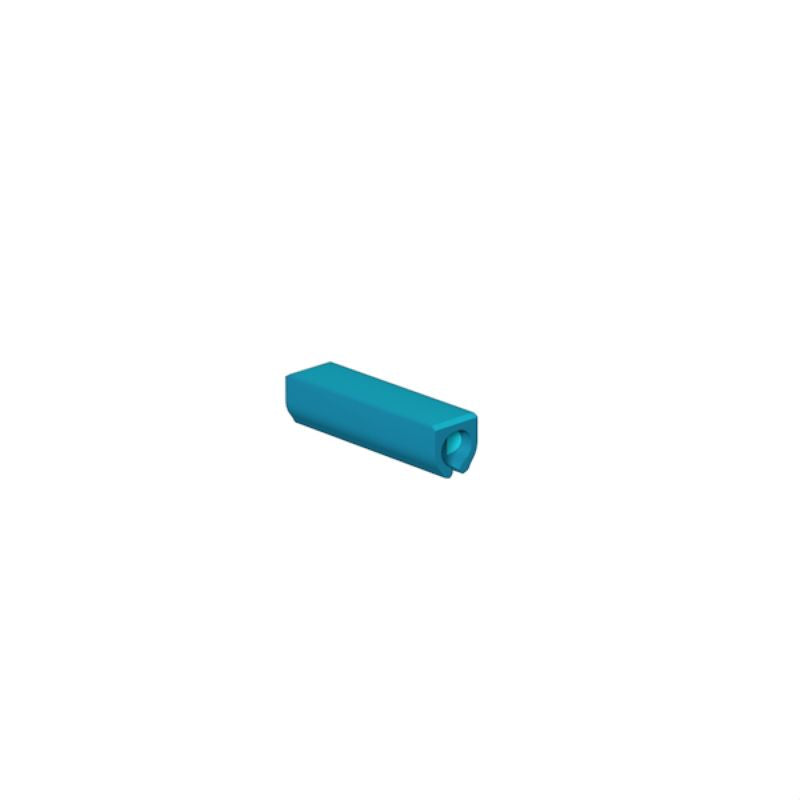

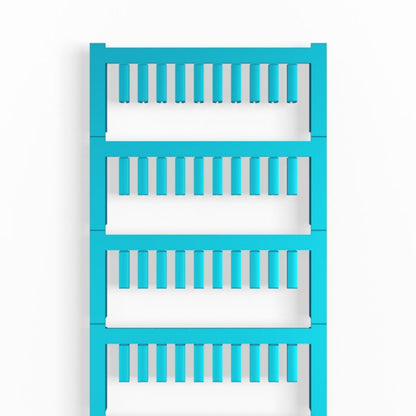

1919220000 - Blue Conductor Markers 12 x 3.2 mm, 1.2-1.6 mm Diameter (Pack of 400)

1919220000 - Blue Conductor Markers 12 x 3.2 mm, 1.2-1.6 mm Diameter (Pack of 400)

SKU: 1919220000   Download PDF

Select a Variant:
  • 1919220000 - Blue Conductor Markers 12 x 3.2 mm, 1.2-1.6 mm Diameter (Pack of 400)
Qty:
Now $58.12   Web pricing policy
BEFORE   $0.00 Now $58.12 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the SlimFix model, expertly engineered for labeling conductors and cables with diameters ranging from 12 to 16 mm Each marker measures 12 x 32 mm and comes in a vibrant blue hue This product adheres to ROHS standards, ensuring it is environmentally safe Each MultiCard includes a single marker, making it a practical choice for all your marking needs.

Features and Benefits:

    •Compliant with ROHS standards.

    •Halogen-free material.

    •Recommended for use in the transportation and machinery industries.

    •Operates efficiently in temperatures ranging from -40 to 100 °C.

    •Made from Polyamide 66.

    •Conductor and cable marking.

Specifications:

 Depth 3.2 mm
 Height 12 mm
 Width 3.2 mm
 Operating temperature range -40...100 °C
 Conductor cross-section, max. 0.5 mm²
 Conductor cross-section, min. 0.25 mm²
 Conductor O.D., max. 1.6 mm
 Conductor O.D., min. 1.2 mm
 UL 94 flammability rating V-2
 Quantity per packaging unit 400 items
 Basic material Polyamide 66
 ETIM 6.0 EC001530
 ECLASS 9.0 27-40-04-01
