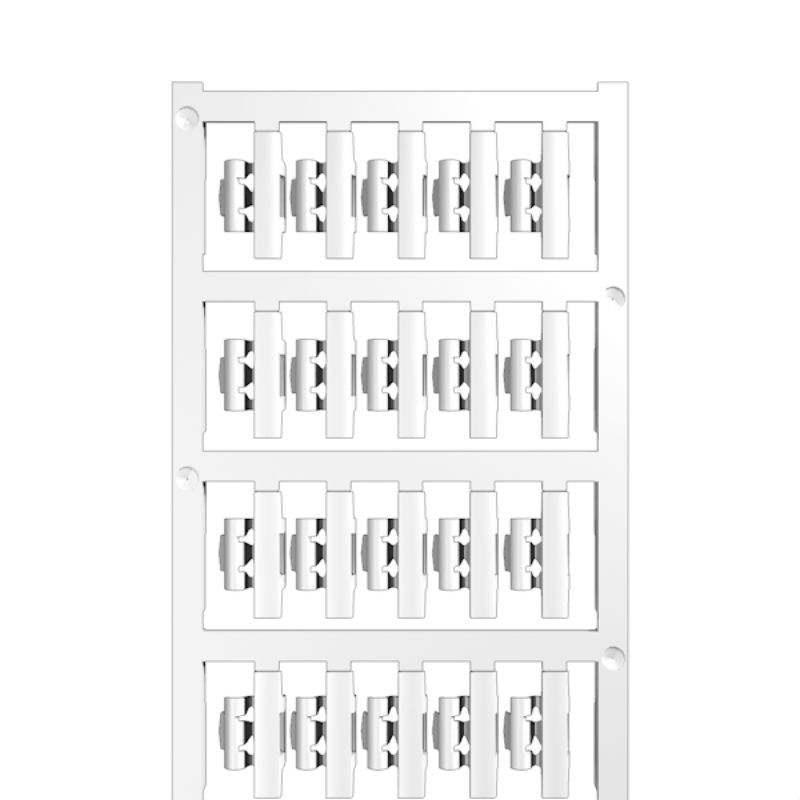

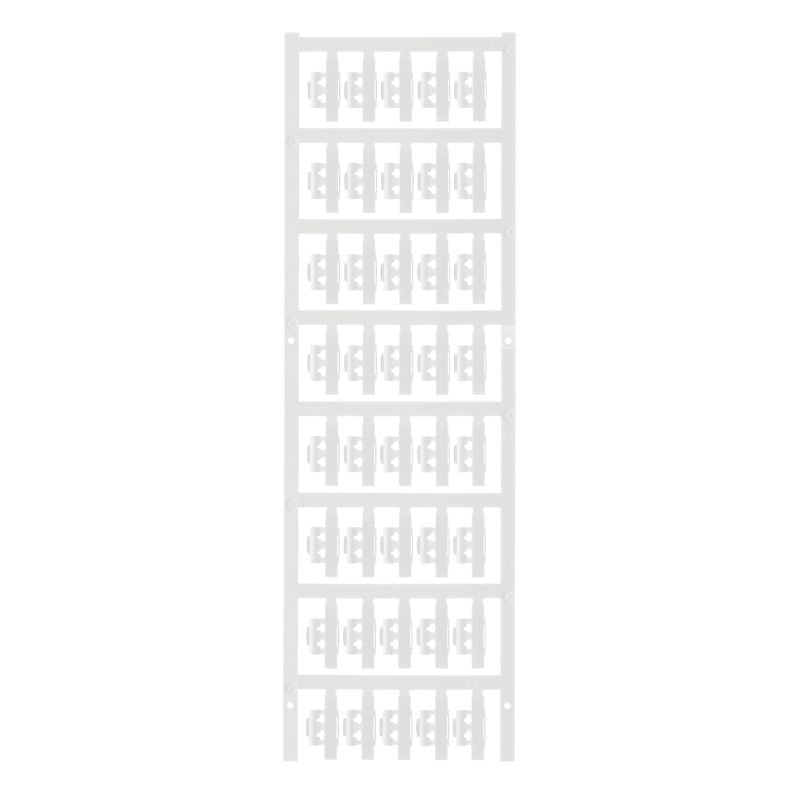

1779080001 - Slim Cable Marker Clip for 2-3.5mm Wires, 21x5.8mm (Pack of 200)

1779080001 - Slim Cable Marker Clip for 2-3.5mm Wires, 21x5.8mm (Pack of 200)

SKU: SKU: 1779080001 Download PDF

Variant:
  • 1779080001 - Slim Cable Marker Clip for 2-3.5mm Wires, 21x5.8mm (Pack of 200)
Regular price Now $36.58
Regular price BEFORE   $0.00 Sale price Now $36.58
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SFC 1/21 MC NE WS, a sleek and efficient slim fix clip that is perfect for marking conductors and cables It fits wires with diameters between 2 mm to 35 mm and has dimensions of 21 x 58 mm, presented in a crisp white color This clip not only adheres to RoHS regulations, making it an environmentally responsible choice, but also boasts a low carbon footprint of just 0003 kg CO2 equivalent from cradle to gate.

Engineered for machinery use, it features a neutral type of printing, making it a practical addition to your setup.

Features and Benefits:

    •Compatible with PRINTJET CONNECT printers.

    •Made from Polyamide 66 material.

    •Operates effectively in a temperature range of -40 to 100 °C.

    •Halogen-free product.

    •Each MultiCard includes conductor and cable markers.

    •UL 94 flammability rating of V-2.

    •Used in machinery for labeling conductors and cables.

Specifications:

 Depth 7 mm
 Depth (inches) 0.276 inch
 Height 21 mm
 Height (inches) 0.827 inch
 Width 5.8 mm
 Width (inches) 0.228 inch
 Operating temperature range -40...100 °C
 Conductor cross-section, max. 2.5 mm²
 Conductor cross-section, min. 0.75 mm²
 Conductor O.D. 2 - 3.5 mm
 Cross-section for connected wire 0.75 - 2.5 mm²
 Material color according to resistance code 9
 Number of markers per combination 1 MultiCard = Conductor and cable markers
 Number of markers per packaging unit MultiCard
 ETIM 6.0 EC001530
 ETIM 7.0 EC001530
 ETIM 8.0 EC001530
 ETIM 9.0 EC001530
 ETIM 10.0 EC001530
 ECLASS 9.0 27-40-04-01
 ECLASS 9.1 27-40-04-01
 ECLASS 10.0 27-40-04-01
 ECLASS 11.0 27-28-11-02
 ECLASS 12.0 27-28-11-02
 ECLASS 13.0 27-28-11-02
 ECLASS 14.0 27-28-11-02
 ECLASS 15.0 27-28-11-02
