1963650000 - Red 11mm x 60mm SlimFix X Cable Markers (Pack of 60)

1963650000 - Red 11mm x 60mm SlimFix X Cable Markers (Pack of 60)

SKU: 1963650000   Download PDF

Select a Variant:
  • 1963650000 - Red 11mm x 60mm SlimFix X Cable Markers (Pack of 60)
Qty:
Now $31.20   Web pricing policy
BEFORE   $0.00 Now $31.20 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

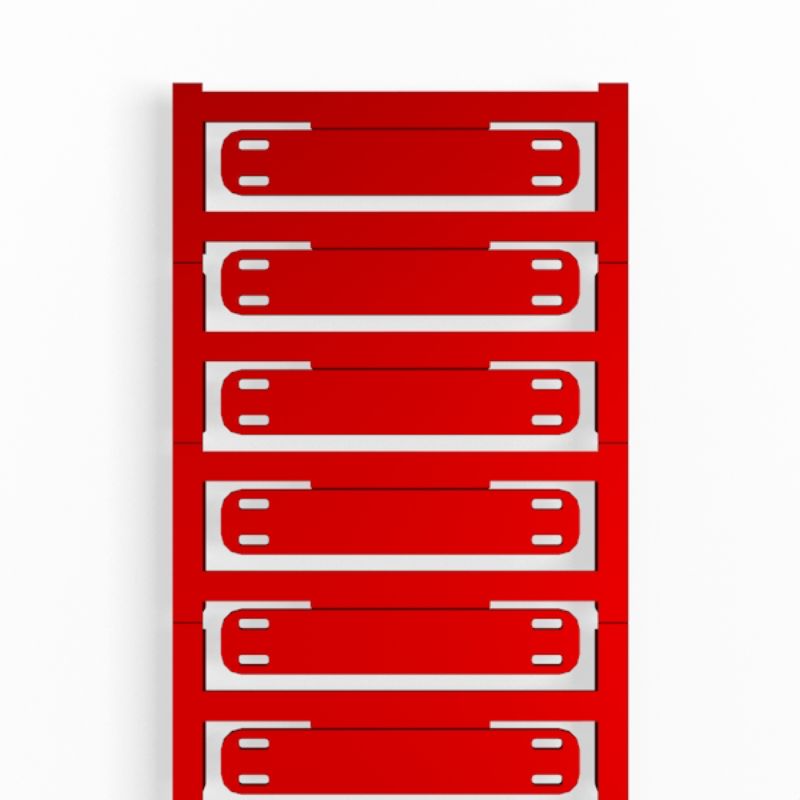

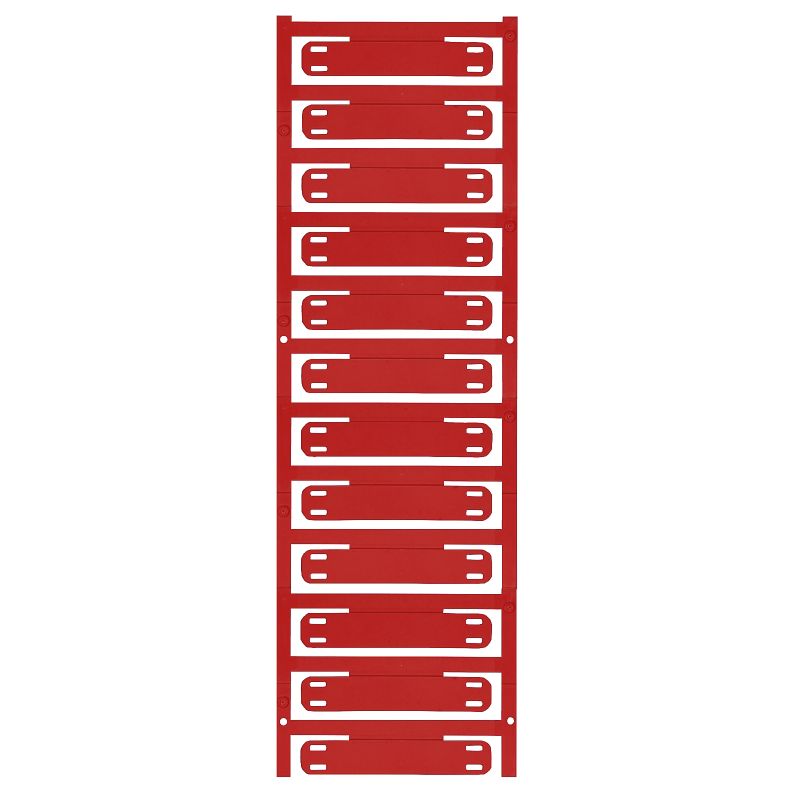

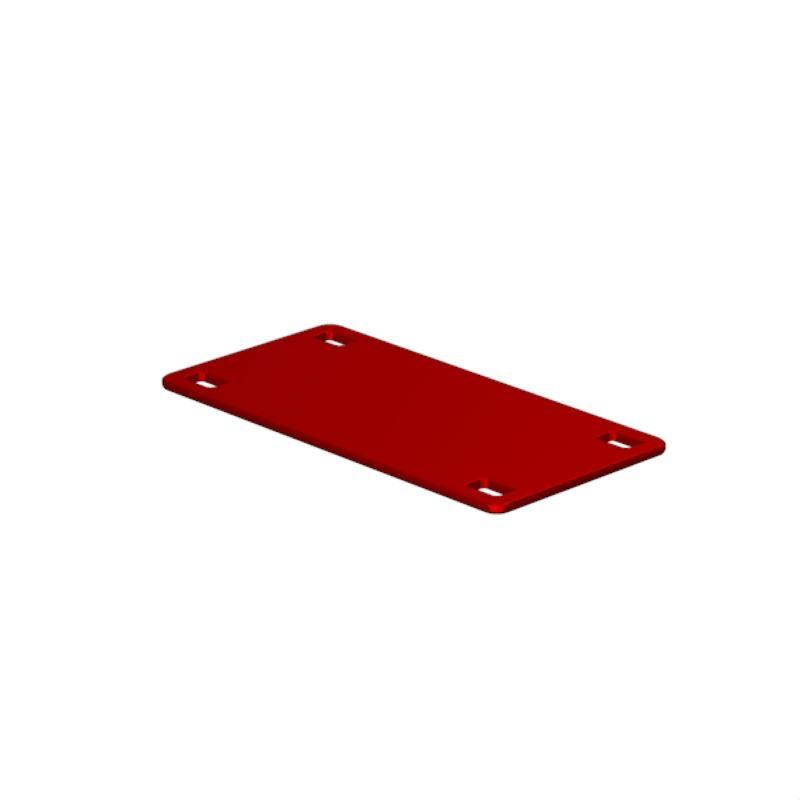

Introducing the SlimFix X, an innovative solution for marking conductors and cables These markers measure 60 mm by 11 mm and are crafted from durable polyamide 66, available in a vibrant red color They effectively accommodate conductor cross-sections ranging from 16 mm² to 500 mm² and support an outer conductor diameter of 7 mm to 40 mm Fully compliant with RoHS standards and exhibiting a UL 94 flammability rating of V-2, these markers can be easily installed with cable ties.

Ideal for diverse industries such as transportation and machinery, SlimFix X markers ensure reliable identification for your wiring needs.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Installation compatible with cable ties.

    •Halogen-free material.

    •Capable of handling a wide range of conductor sizes.

    •Used for marking conductors and cables in transportation and machinery industries.

Specifications:

 Operating temperature range -40...100 °C
 Dimensions 60 mm x 11 mm
 Basic material Polyamide 66
 Conductor cross-section (min) 16 mm²
 Conductor cross-section (max) 500 mm²
 Conductor O.D. (min) 7 mm
 Conductor O.D. (max) 40 mm
 Size of labelling field 44 x 11 mm
 Number of markers per packaging unit MultiCard
 Color red
