1919230000 - Red 12x3.2mm Cable Markers for 1.2-1.6mm Cables (Pack of 400)

SKU: SKU: 1919230000 Download PDF

Select a Variant:

1919230000 - Red 12x3.2mm Cable Markers for 1.2-1.6mm Cables (Pack of 400)

SET THE QTY:

Now $58.12 Web pricing policy

~~BEFORE $0.00~~ Now $58.12 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

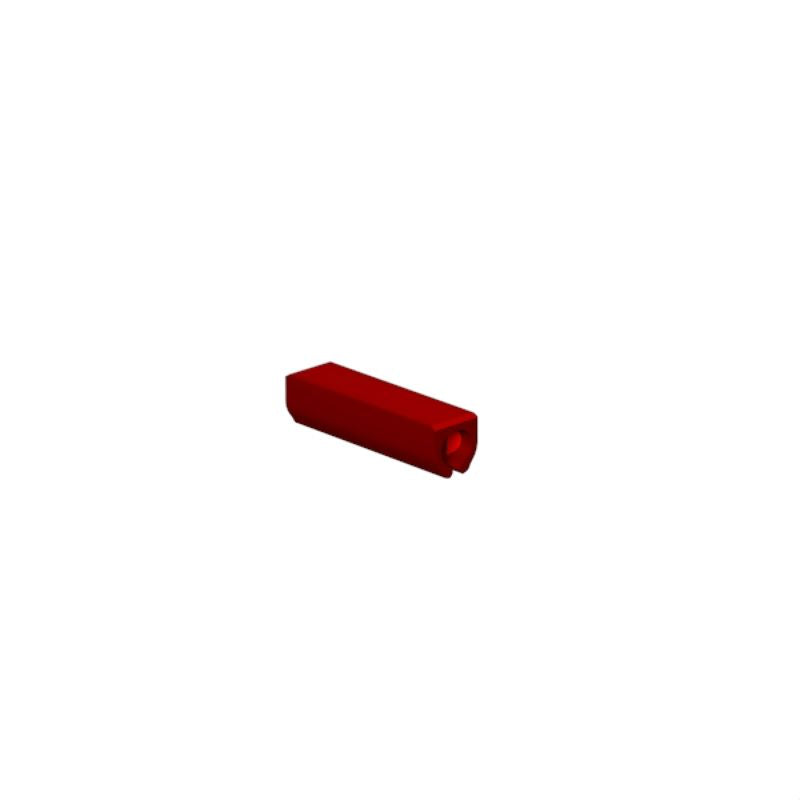

Introducing the SF 0/12 MC NE RT V2, a set of expertly crafted conductor and cable markers tailored for optimal performance With dimensions of 12 x 32 mm, they are specifically engineered to fit cables with an outer diameter between 12 and 16 mm Finished in a vibrant red, these markers offer both visibility and functionality for your wiring needs.

Features and Benefits:

•Compliant with RoHS standards without exemption.

•Compatible with PRINTJET CONNECT printer.

•UL 94 flammability rated V-2.

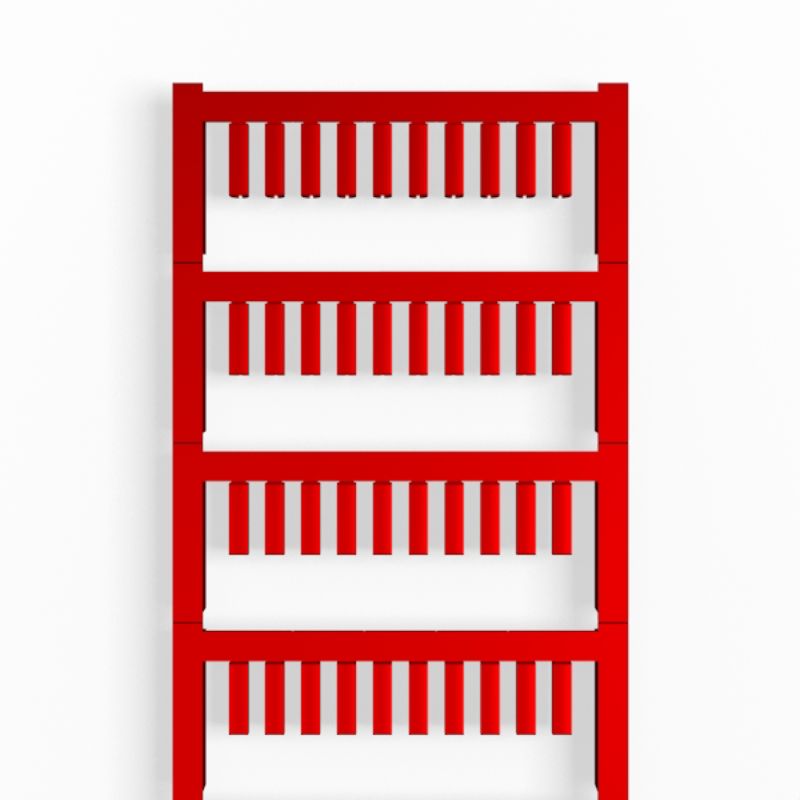

•MultiCard form supply.

•Recommended for use in the transportation and machinery industries.

Specifications:

Operating temperature range	-40...100 °C
Basic material	Polyamide 66
Conductor cross-section, min.	0.25 mm²
Conductor cross-section, max.	0.5 mm²
Conductor O.D. min.	1.2 mm
Conductor O.D. max.	1.6 mm
Number of markers per combination	1 MultiCard = Conductor and cable markers
Size of labelling field	12 x 3.2 mm
Product Carbon Footprint	0.002 kg CO2 eq.
ETIM classifications	{'ETIM 6.0': 'EC001530', 'ETIM 7.0': 'EC001530', 'ETIM 8.0': 'EC001530', 'ETIM 9.0': 'EC001530', 'ETIM 10.0': 'EC001530'}
ECLASS classifications	{'ECLASS 9.0': '27-40-04-01', 'ECLASS 9.1': '27-40-04-01', 'ECLASS 10.0': '27-40-04-01', 'ECLASS 11.0': '27-28-11-02', 'ECLASS 12.0': '27-28-11-02', 'ECLASS 13.0': '27-28-11-02', 'ECLASS 14.0': '27-28-11-02', 'ECLASS 15.0': '27-28-11-02'}
