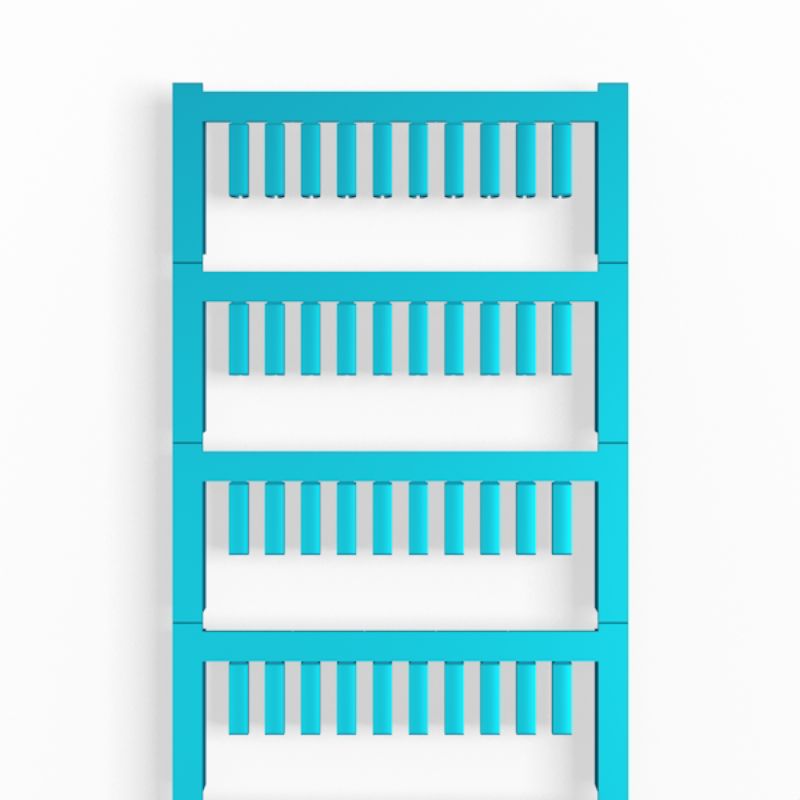

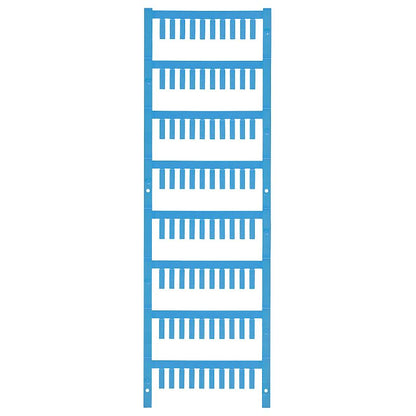

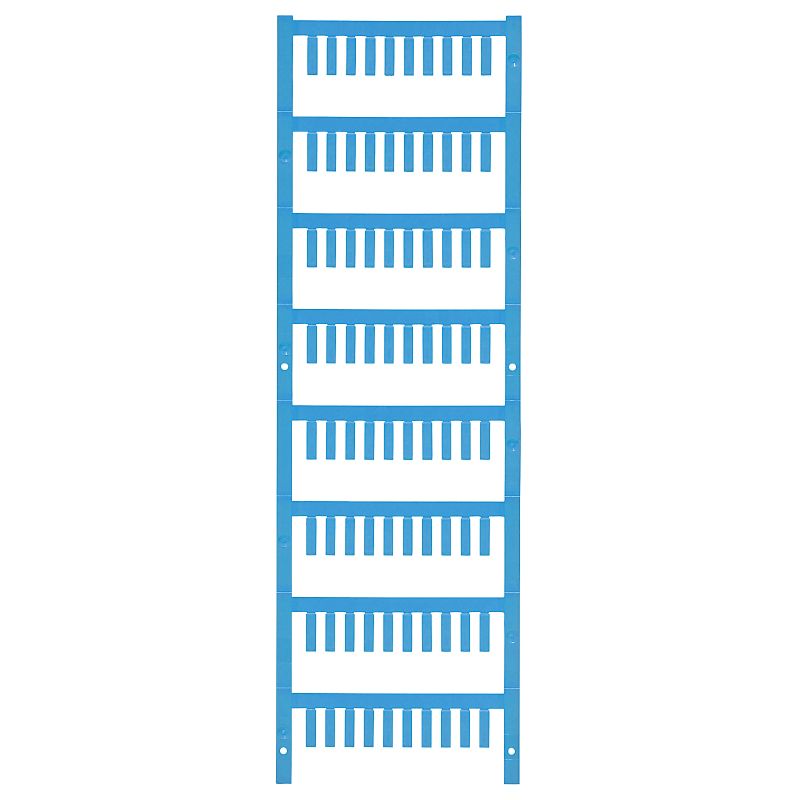

1919270000 - Blue Marker for Conductors, 12 x 3.2 mm, RoHS Compliant (Pack of 400)

1919270000 - Blue Marker for Conductors, 12 x 3.2 mm, RoHS Compliant (Pack of 400)

SKU: SKU: 1919270000 Download PDF

Variant:
  • 1919270000 - Blue Marker for Conductors, 12 x 3.2 mm, RoHS Compliant (Pack of 400)
Regular price Now $55.43
Regular price BEFORE   $0.00 Sale price Now $55.43
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Efficiently label your conductors and cables with the SlimFix markers, specifically created for precision labeling at dimensions of 12 x 32 mm in an eye-catching blue hue These markers are ideal for conductor diameters measuring between 1 mm and 13 mm Made from durable polyamide 66, they meet strict RoHS and REACH compliance standards Each marker has a carbon footprint of just 0002 kg CO2 equivalents, reflecting a commitment to sustainability.

Supplied in a convenient MultiCard packaging, each card features a single marker With an operating temperature range capable of withstanding -40 to 100 °C, these markers are perfectly suited for applications in the transportation and machinery industries.

Features and Benefits:

    •Compatible with PRINTJET CONNECT printer.

    •No halogen content.

    •UL 94 flammability rating of V-2.

    •Compliant without exemption to RoHS.

    •Transportation.

    •Machinery.

Specifications:

 Depth 3.2 mm
 Height 12 mm
 Width 3.2 mm
 Conductor O.D. 1 - 1.3 mm
 Conductor cross-section, min. 0.18 mm²
 Conductor cross-section, max. 0.25 mm²
 Size of labelling field 12 x 3.2 mm
 Operating temperature range -40...100 °C
 GTIN (EAN) 4032248555666
 Number of markers per packaging unit 1 MultiCard
 ETIM classification EC001530
 ECLASS 27-40-04-01
